Ibex Custom White Build
Core Ultra 9

This build started with a be quiet! Light Base 500 LX case and a 3D printer. The printed parts cover the openings the case leaves exposed and hide the cables, so the inside looks clean.

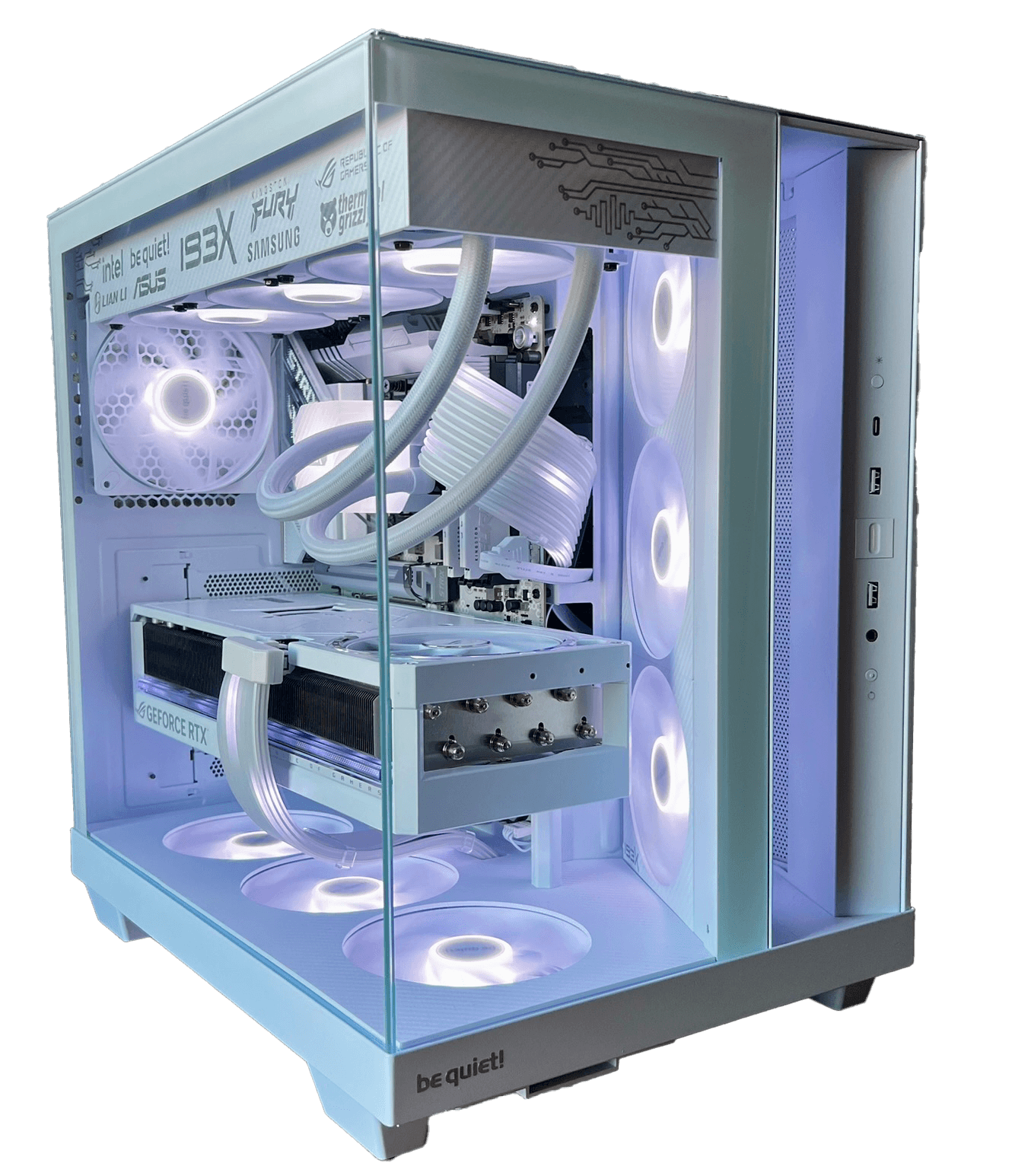

The finished Ibex custom build in the be quiet! Light Base 500 LX, all lighting set to white

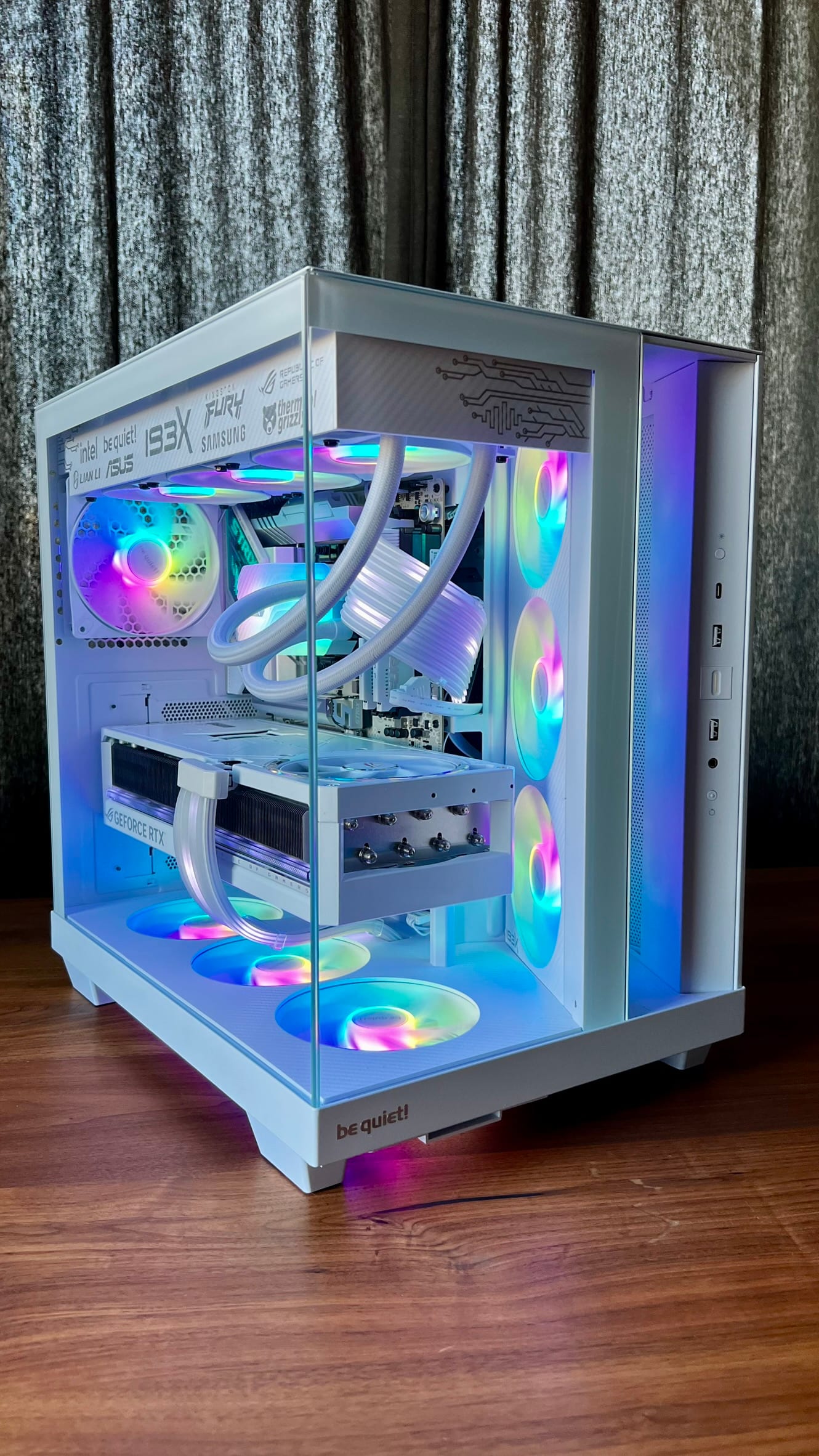

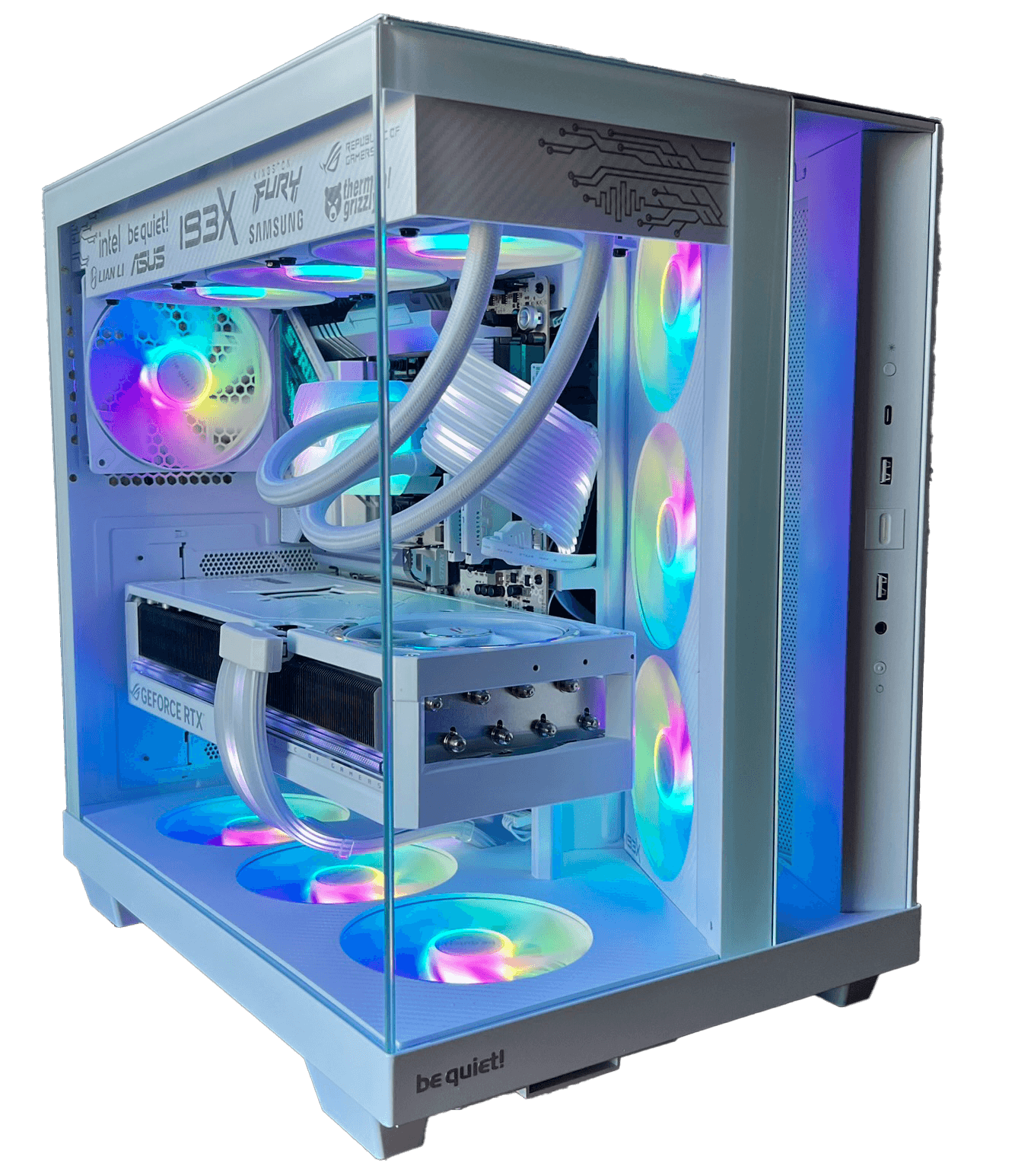

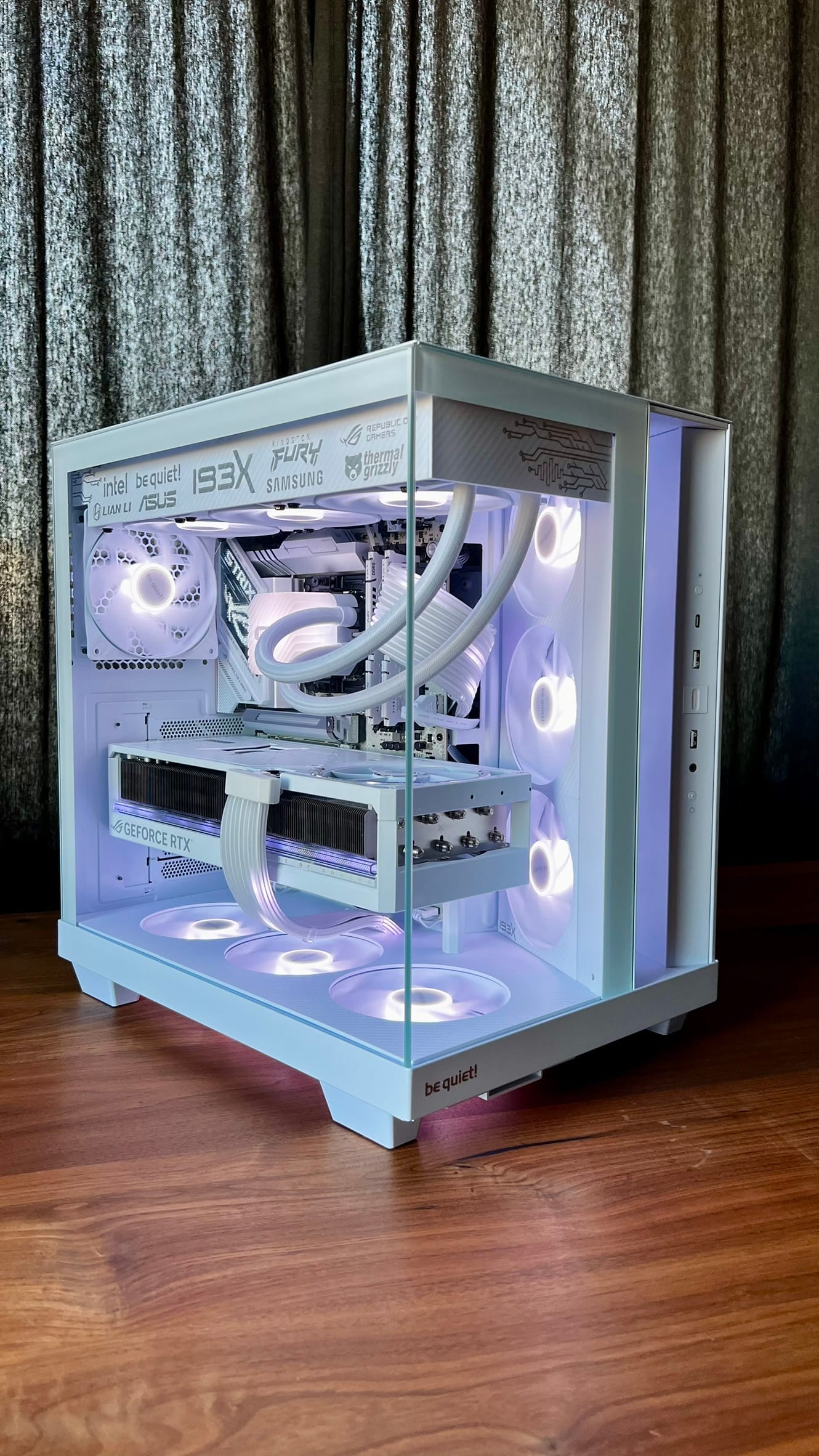

The same build with the lighting switched to RGB

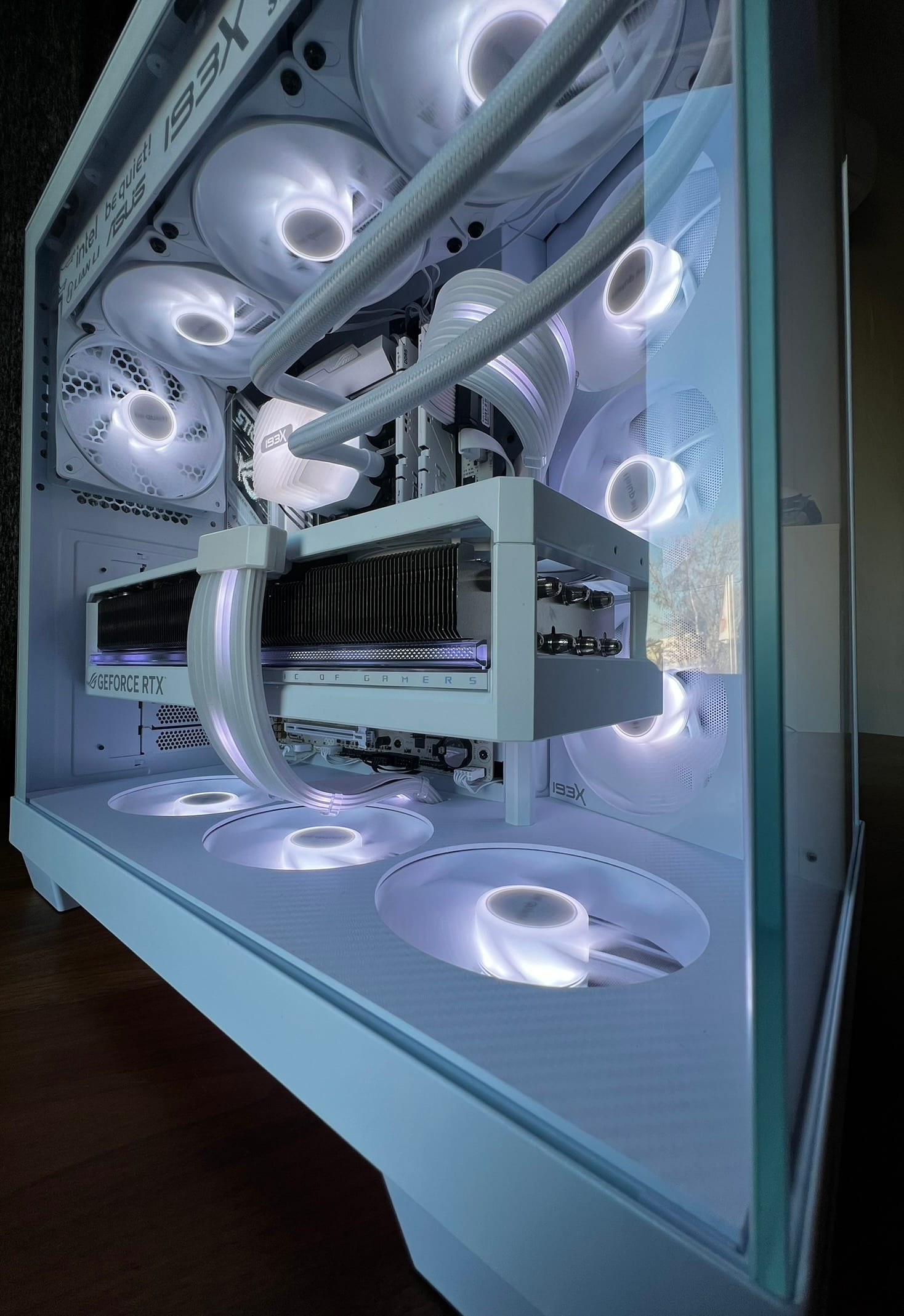

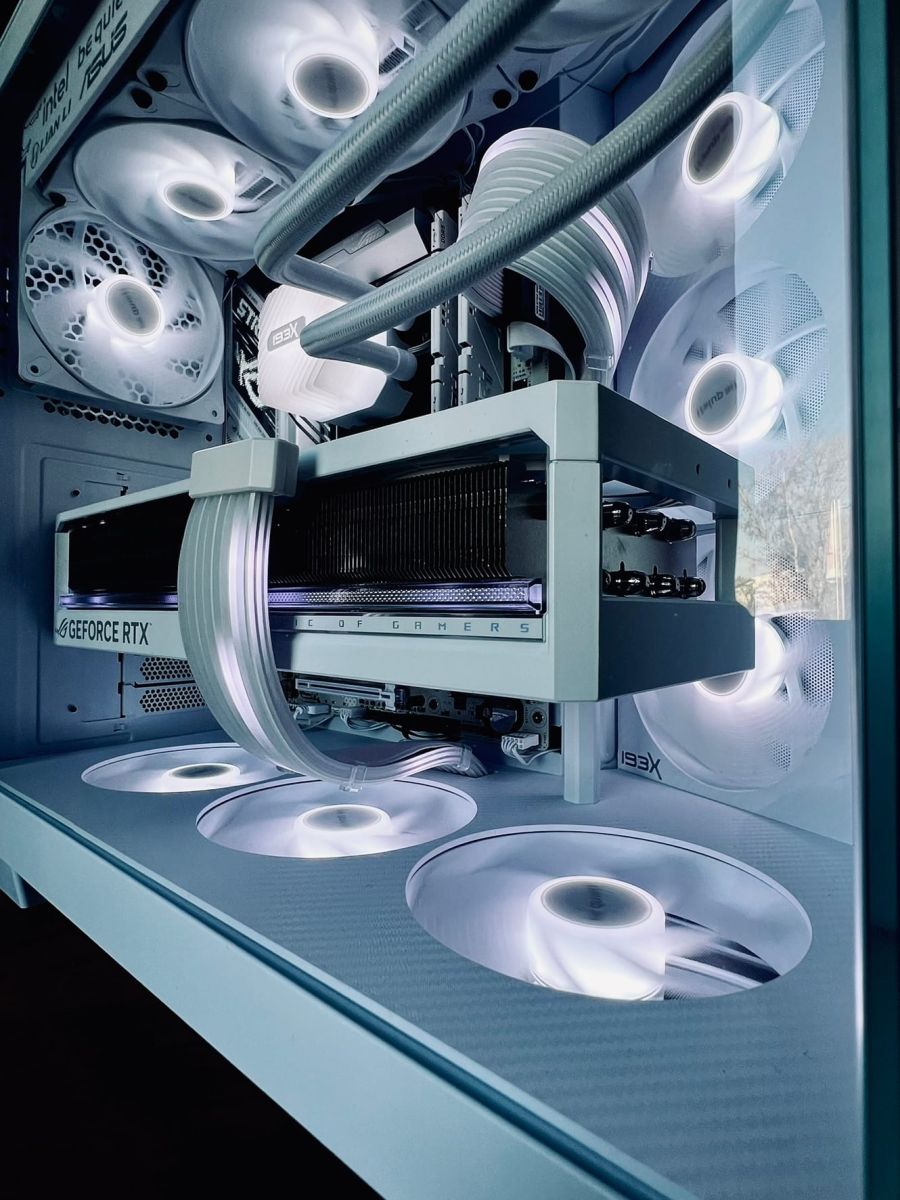

The RTX 5080 ROG Astral sitting in the white build, fans lit
The SPECS

Core Ultra 9 285K

ASUS ROG Strix Z890-A · all white

5080NVIDIA ROG Astral
64 GBDDR5-6000 CL30
360 mmAiO Water Cooling
1000 WDark Power 14
Case
be quiet! Light Base 500 LX White
CPU
Intel Core Ultra 9 285K
Board
ASUS ROG Strix Z890-A Gaming WiFi
GPU
ASUS ROG NVIDIA RTX 5080 Astral 16GB GDDR7
Memory
Kingston Fury 64 GB DDR5-6000 CL30
Storage
3 × Samsung 990 PRO 1 TB
PSU
be quiet! Dark Power 14 1000 W
Cooling
be quiet! AiO Light Loop 360 mm
Fans
6 × Light Wings LX PWM reverse · 4 × Light Wings LX PWM high-speed
Cables
Lian Li Strimer Wireless, ATX and GPU
Contact

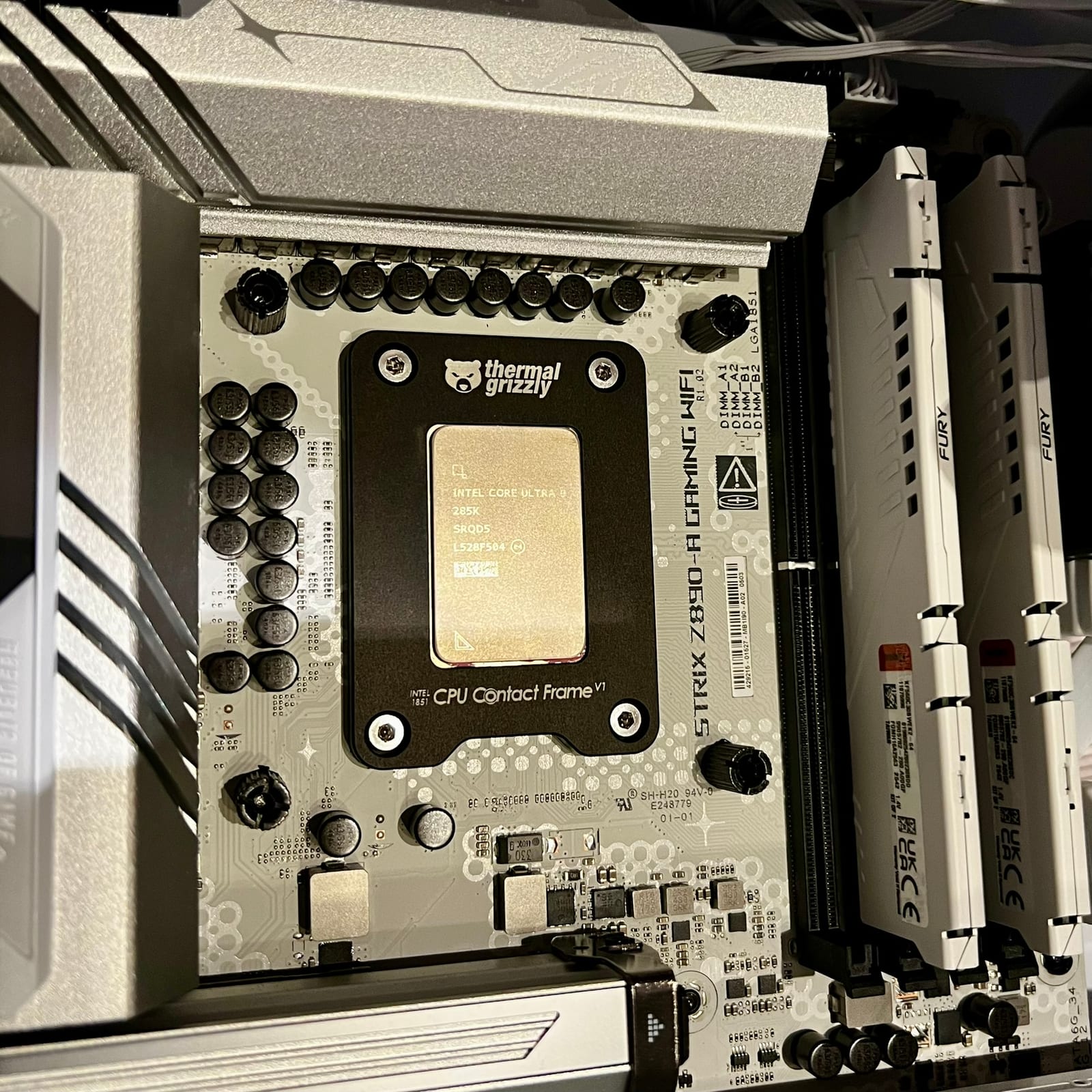

Thermal Grizzly Contact Frame 1851 · Kryonaut Extreme · WireView GPU Pro

Printed parts

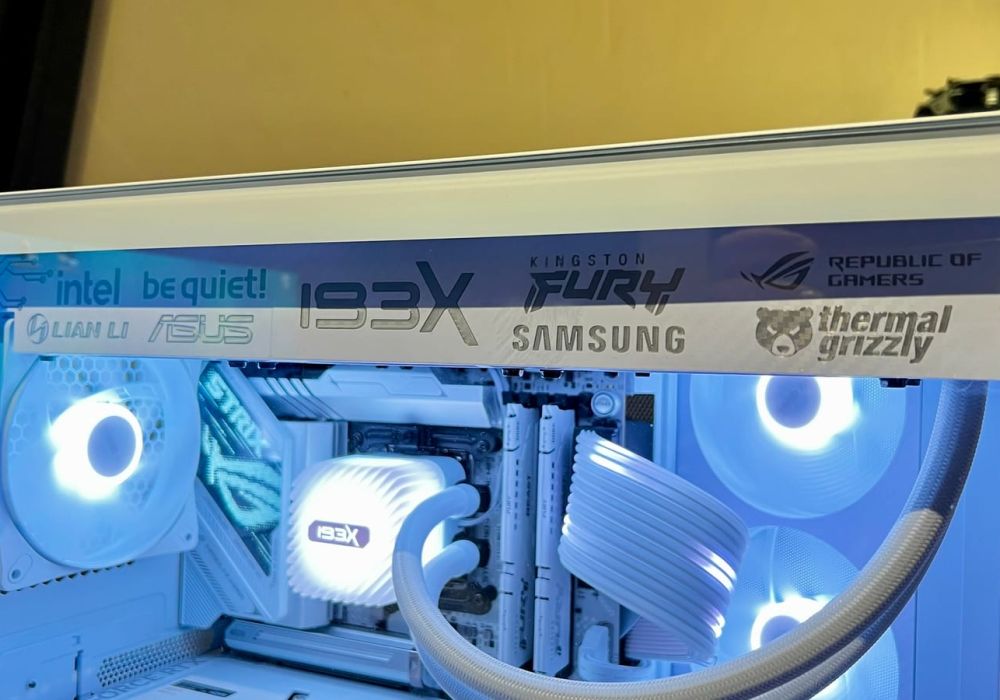

The white radiator cover fitted in the case, brand lettering along its length, lit from inside

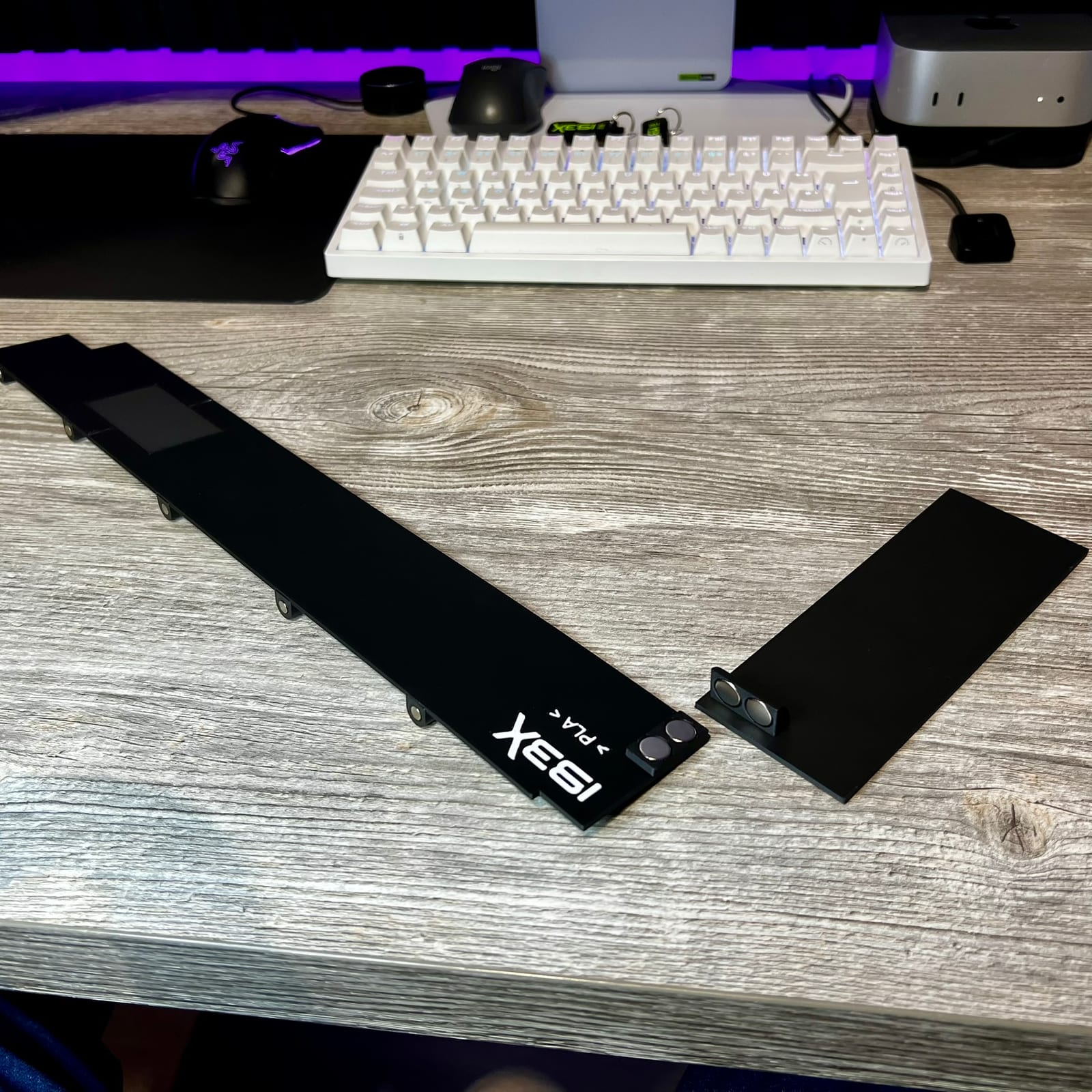

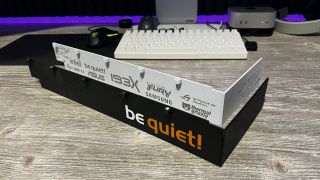

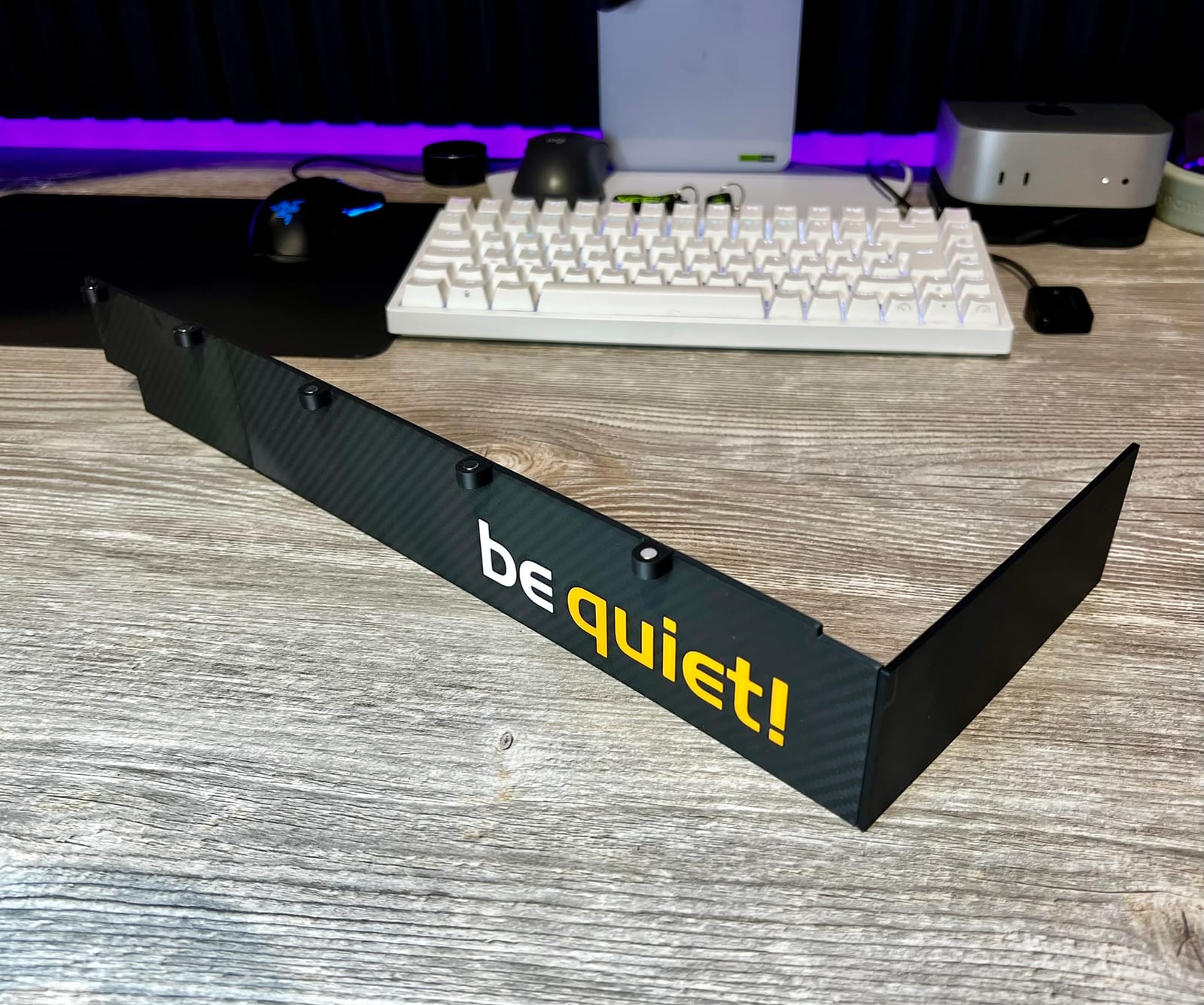

The same cover printed in black as a display copy

Top of the case

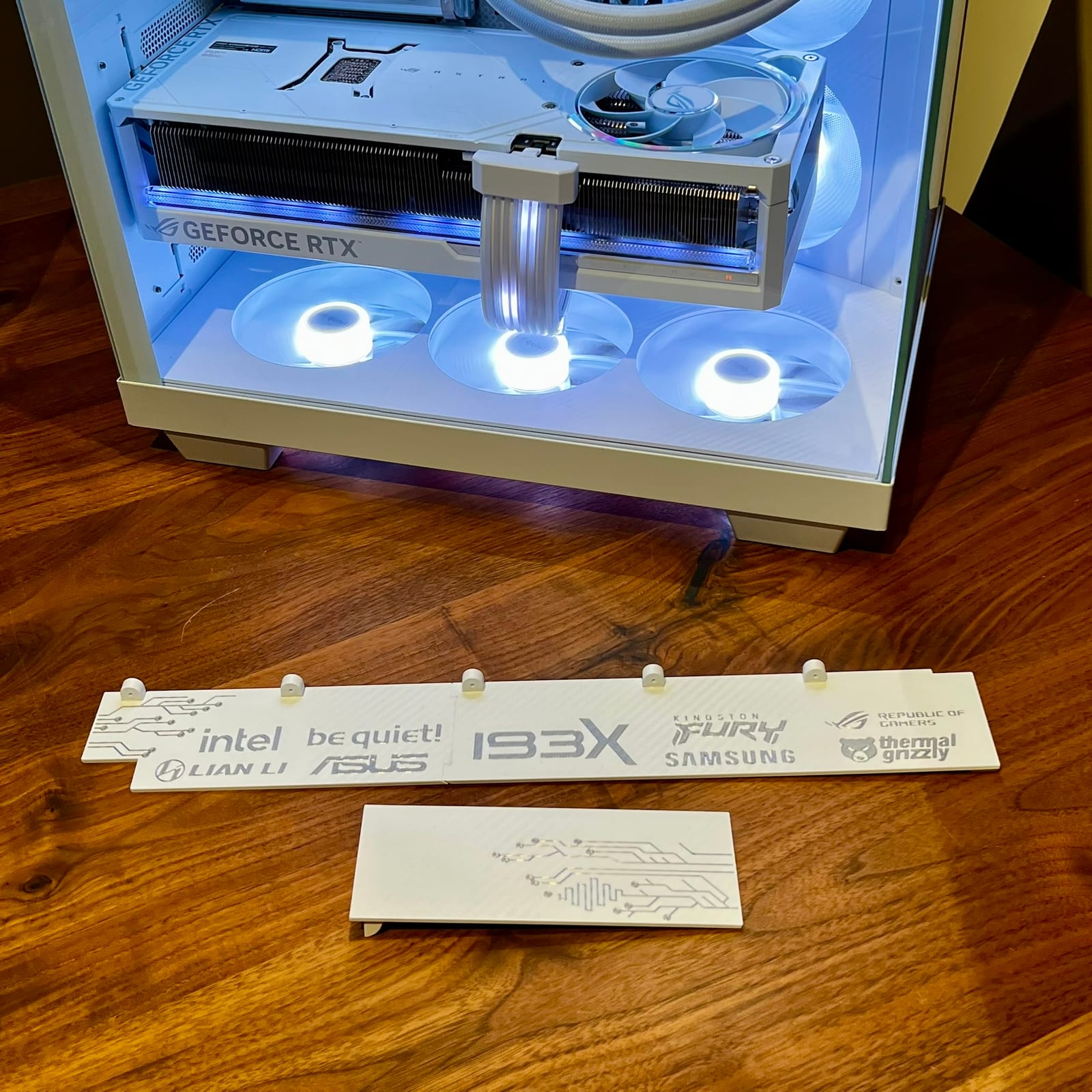

Radiator Cover

The panel above the 360 mm radiator comes in two pieces, one along the side and one across the front, held together by magnets instead of screws. The long face carries the lettering of every brand in the build, and the front face has a faint circuit pattern.

View the part →

Same part, front face

Circuit pattern

The front has no lettering, only a circuit trace a few tenths of a millimetre deep. You only see it when the interior lighting falls across it at an angle. The two halves meet in the corner, and the magnets hold them there.

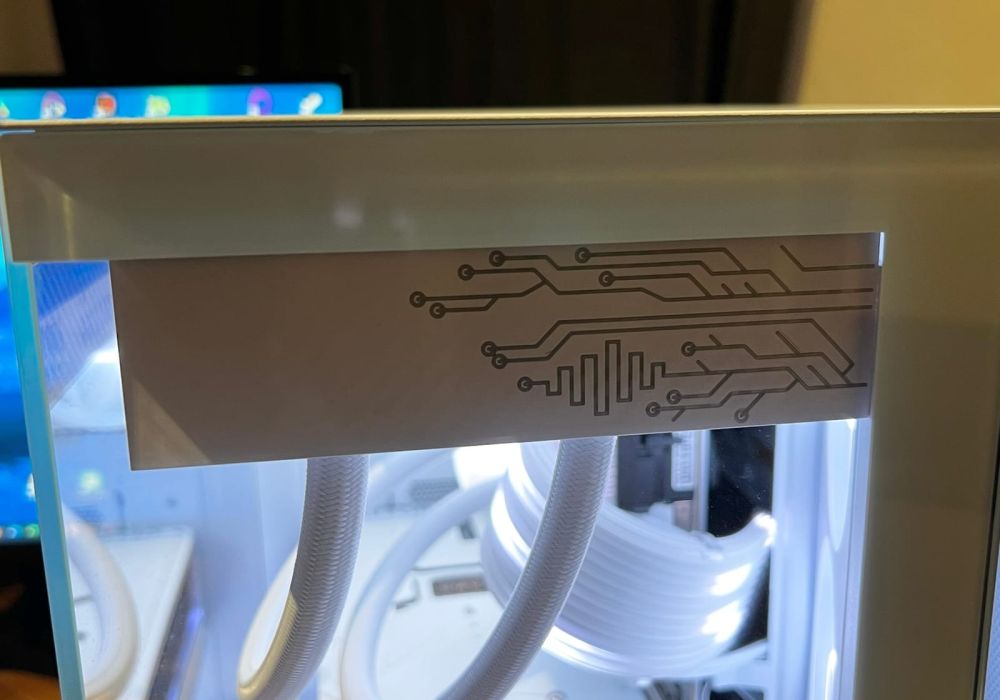

Front face of the white radiator cover with its hinted circuit pattern, fitted in the case

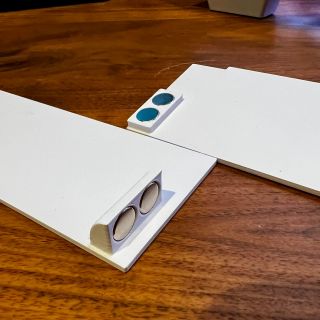

The magnets that hold the two pieces together

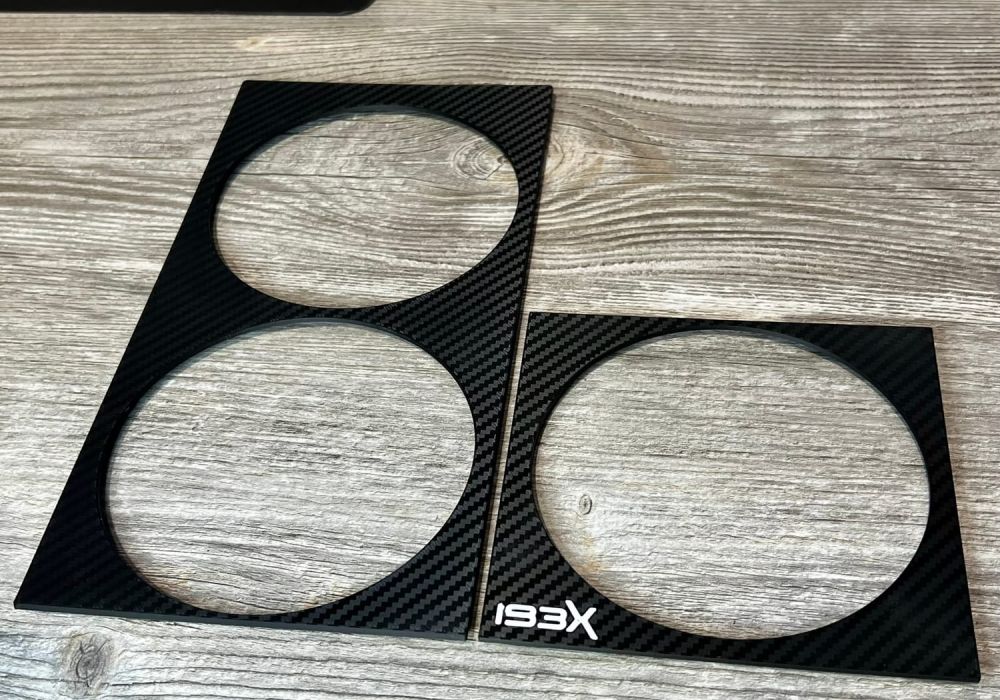

Side fan cover, display copy in black, split into the two pieces it prints as

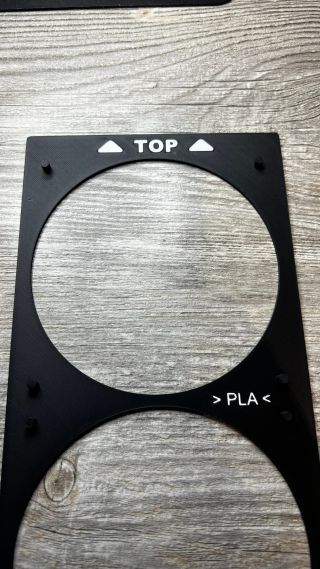

Back of the side cover with TOP marking for the assembly instructions

Side

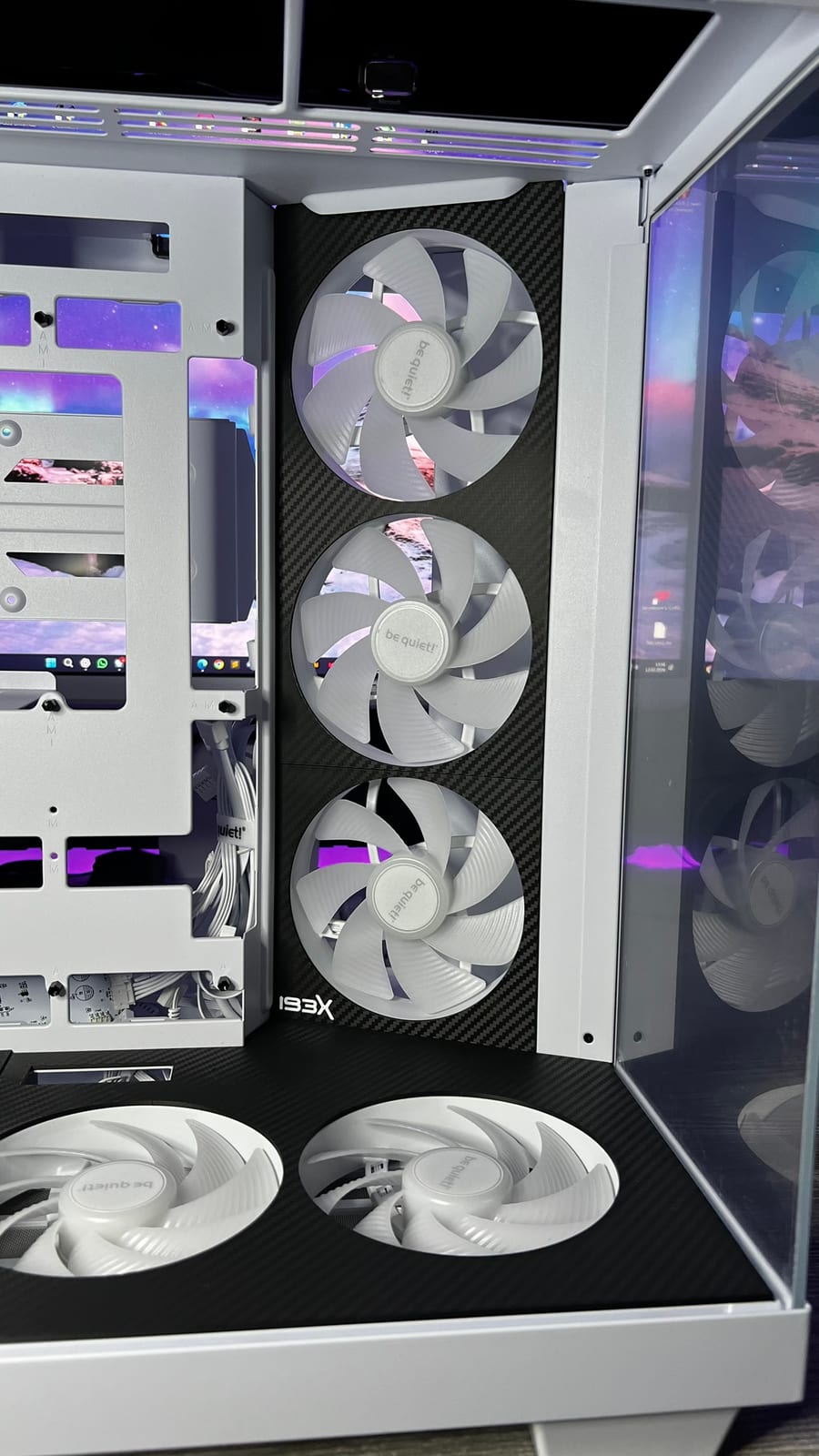

Side Fan Cover

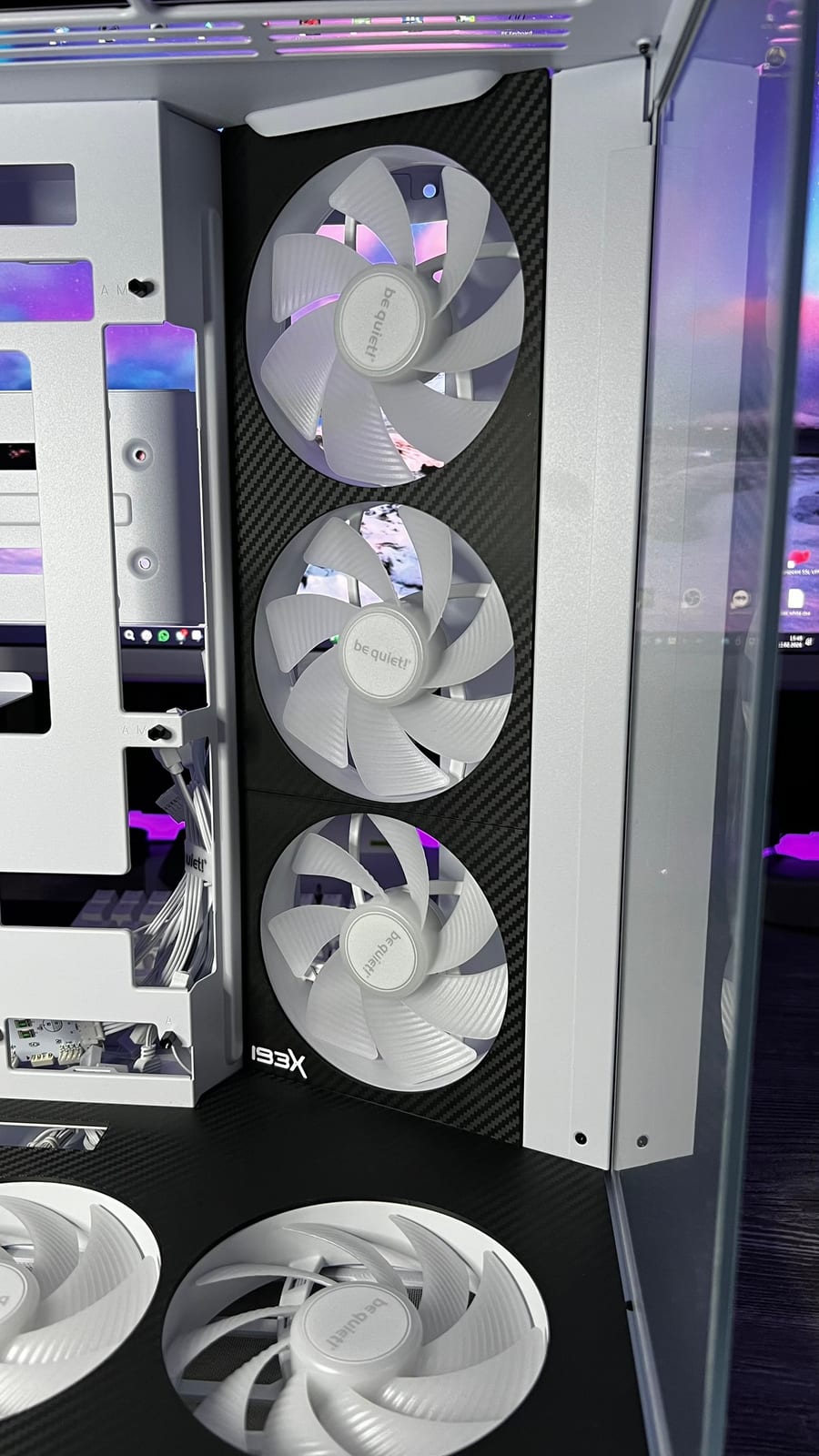

Covers the side fan bank behind the glass. Prints as two pieces that join in the middle. The carbon texture is drawn into the model rather than applied as a film, so it comes out of the printer in whatever colour you feed it. Six reverse-blade fans sit behind it.

View the part →

Floor

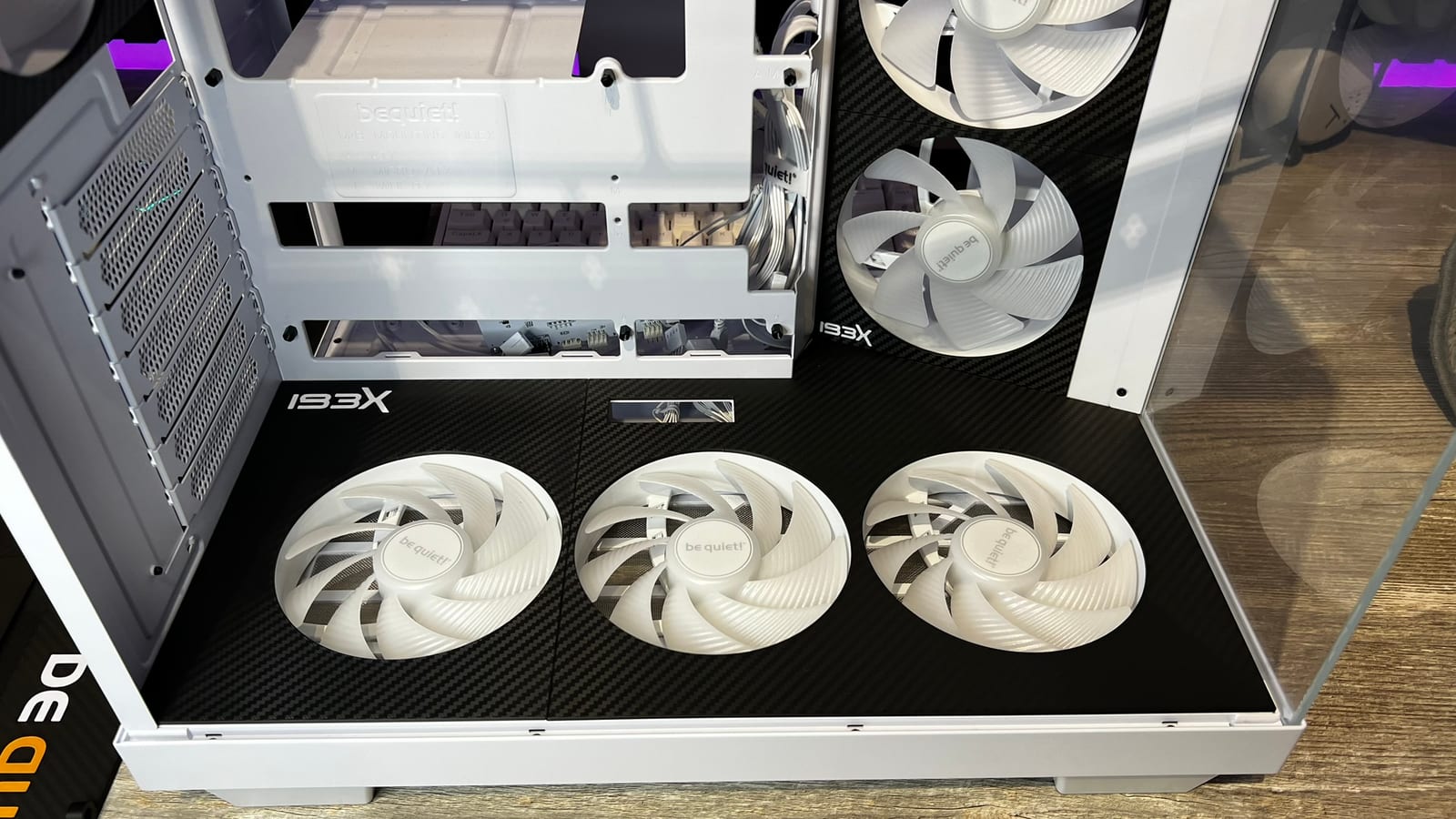

Bottom Plate

This part took the longest: five months and several revisions. The current version has no mounting holes at all, so nothing interrupts the surface. You can tell it apart by the small tab at the top right.

View the part →

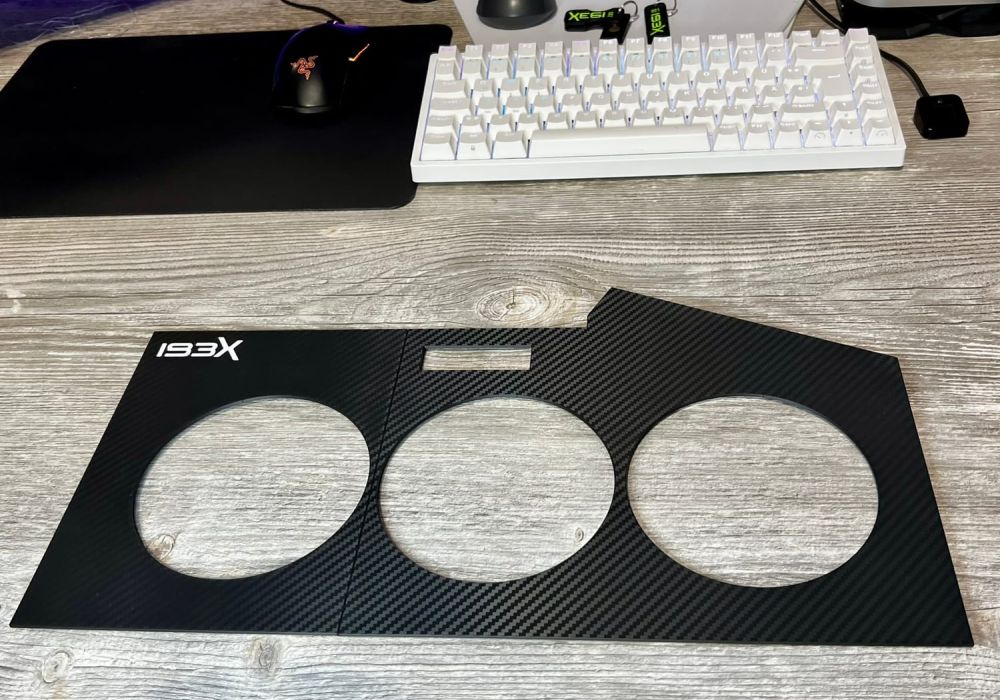

Bottom plate, display copy in black, with the carbon texture visible

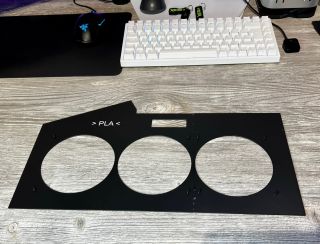

Back of the bottom plate

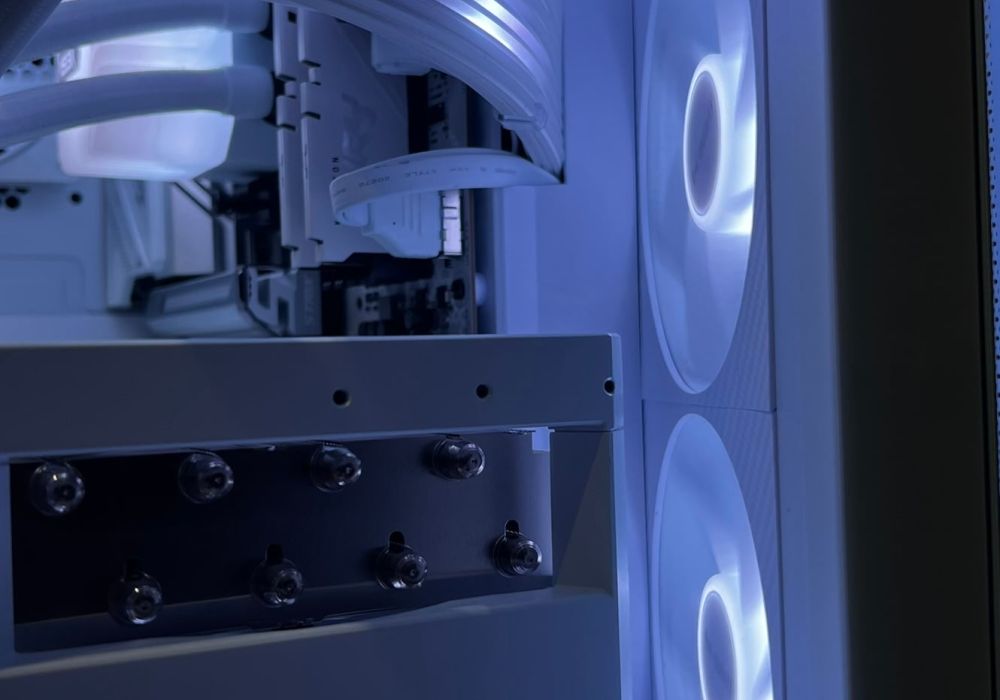

The white mainboard side cover fitted in the lit case, next to the cable pass-through

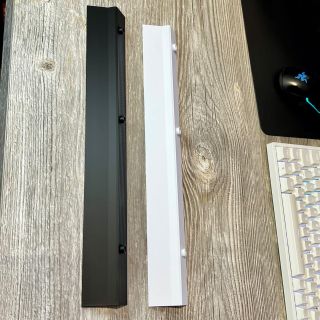

The same panel in black and white, off the case

Behind the board

Mainboard Side Cover

The Light Base 500 leaves oversized cable pass-throughs open next to the board. This panel closes them. It mounts under the mainboard on standoffs.

View the part →

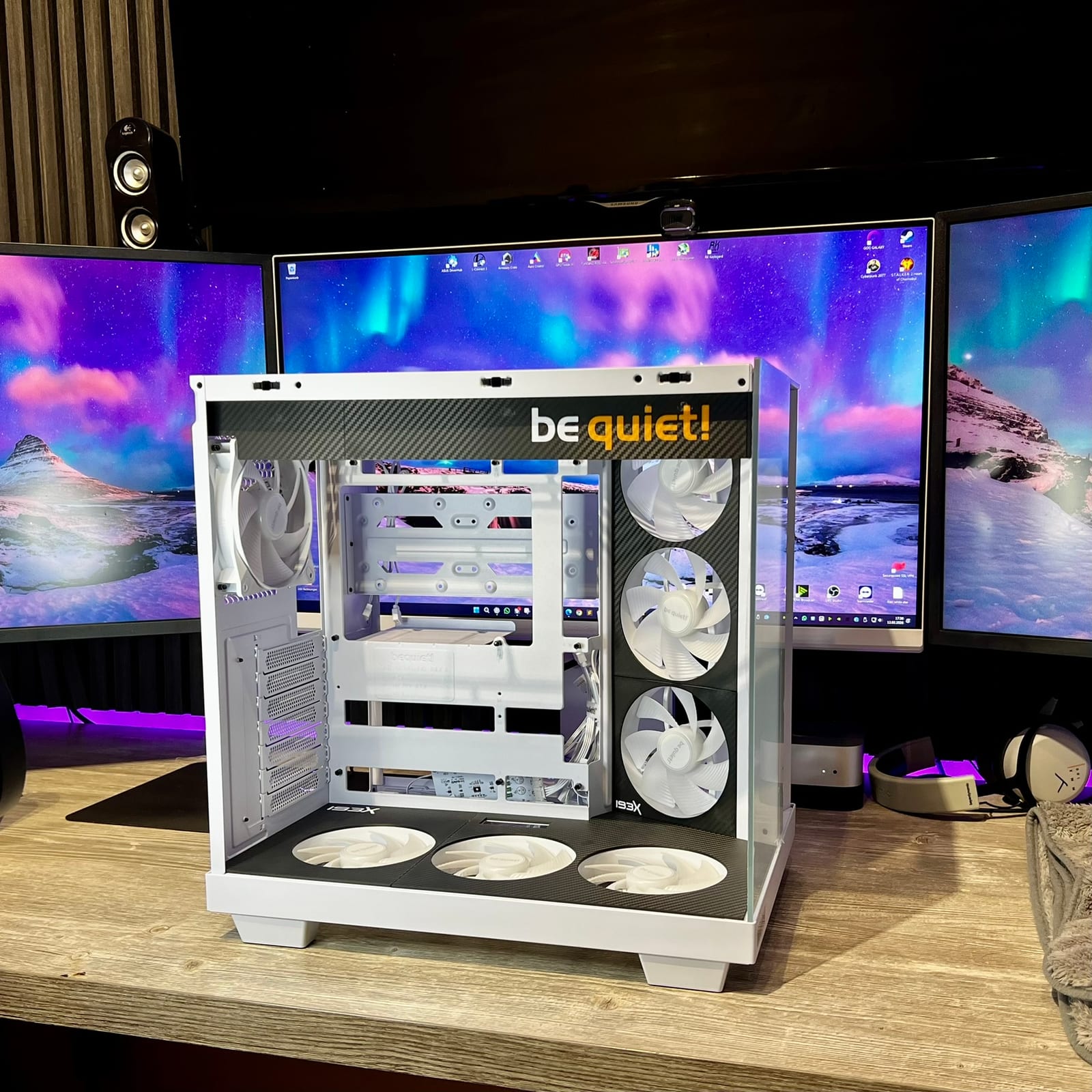

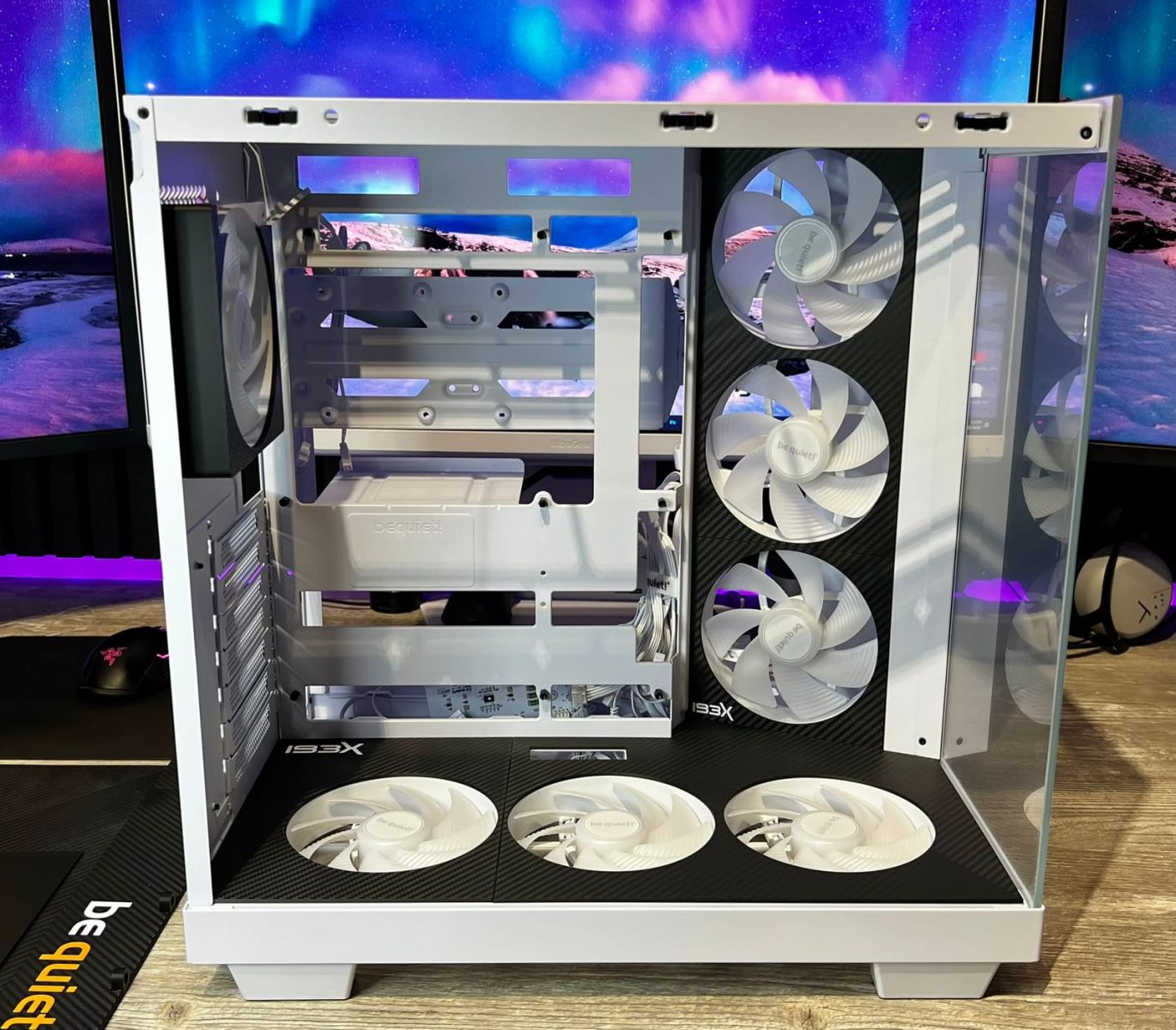

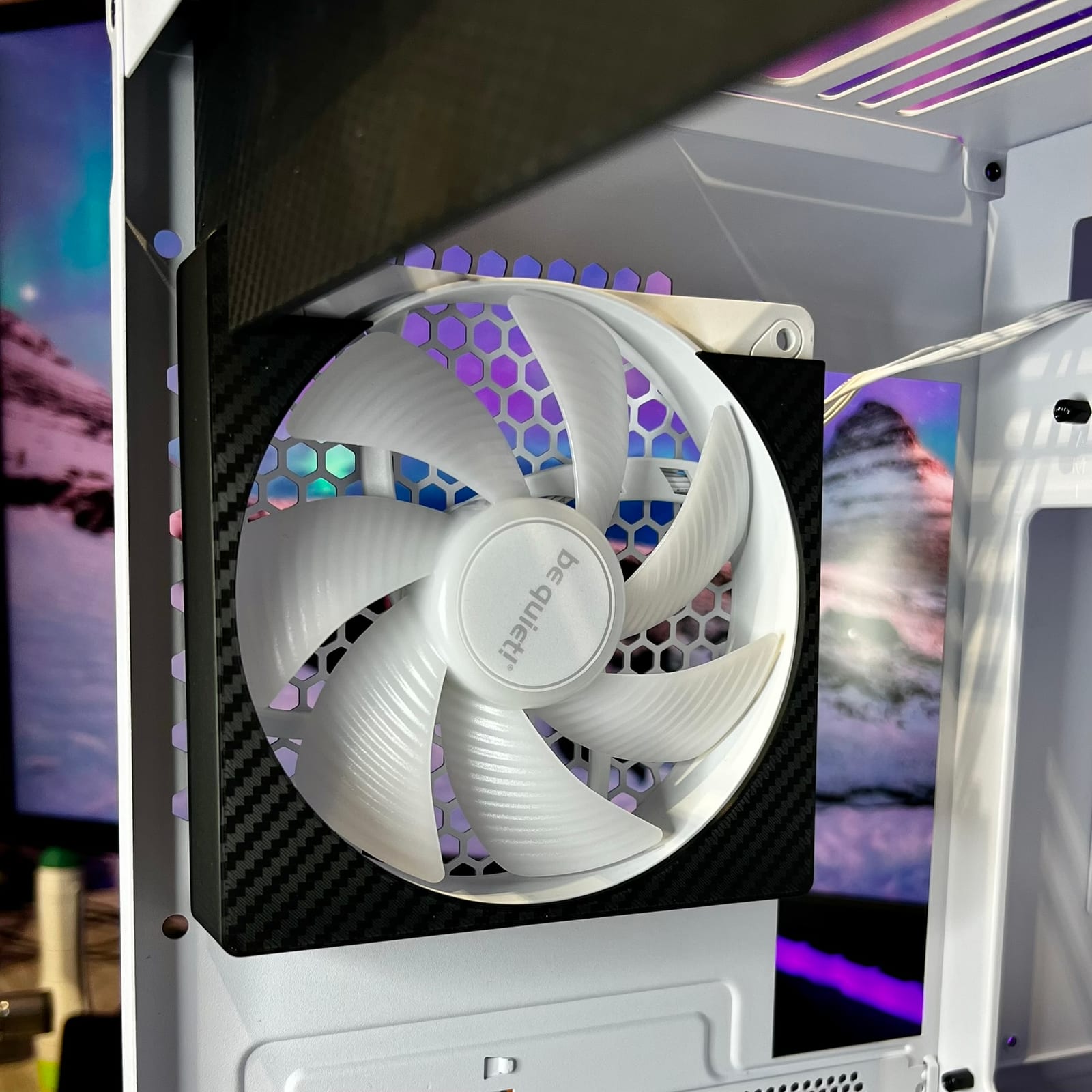

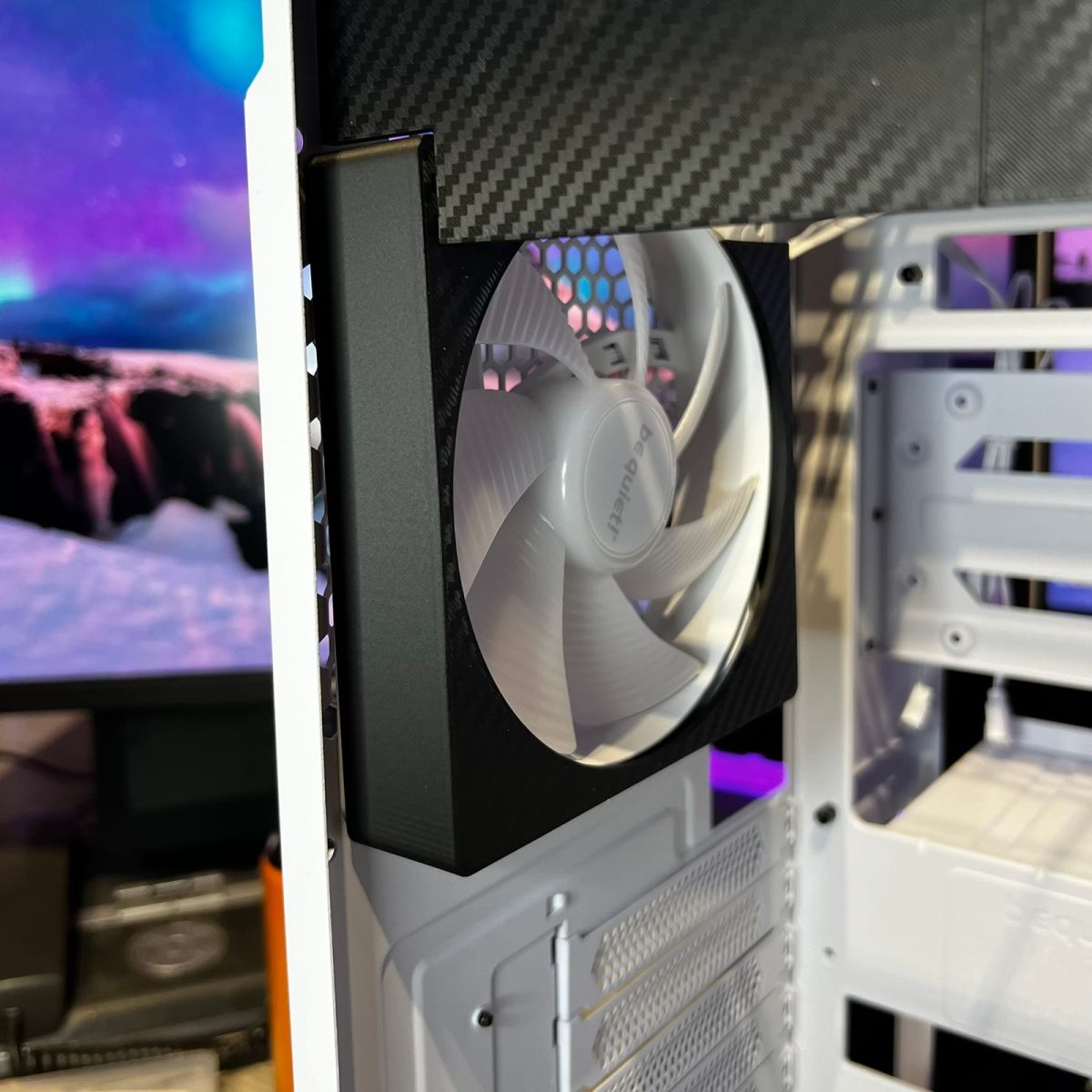

The build Gallery

All parts are free

You can download all printed parts for this project on MakerWorld and print them yourself. A like, a review or a photo of your build is always welcome.
