be quiet! Light Base 500 LX Bottom Plate

  • Case
    be quiet! Light Base 500 LX
    3D-printed case mod
  • Position
    Floor of the case, around the bottom fans
  • Versions
    With a cutout for the 12VHPWR cable
    or fully closed
  • Mounting

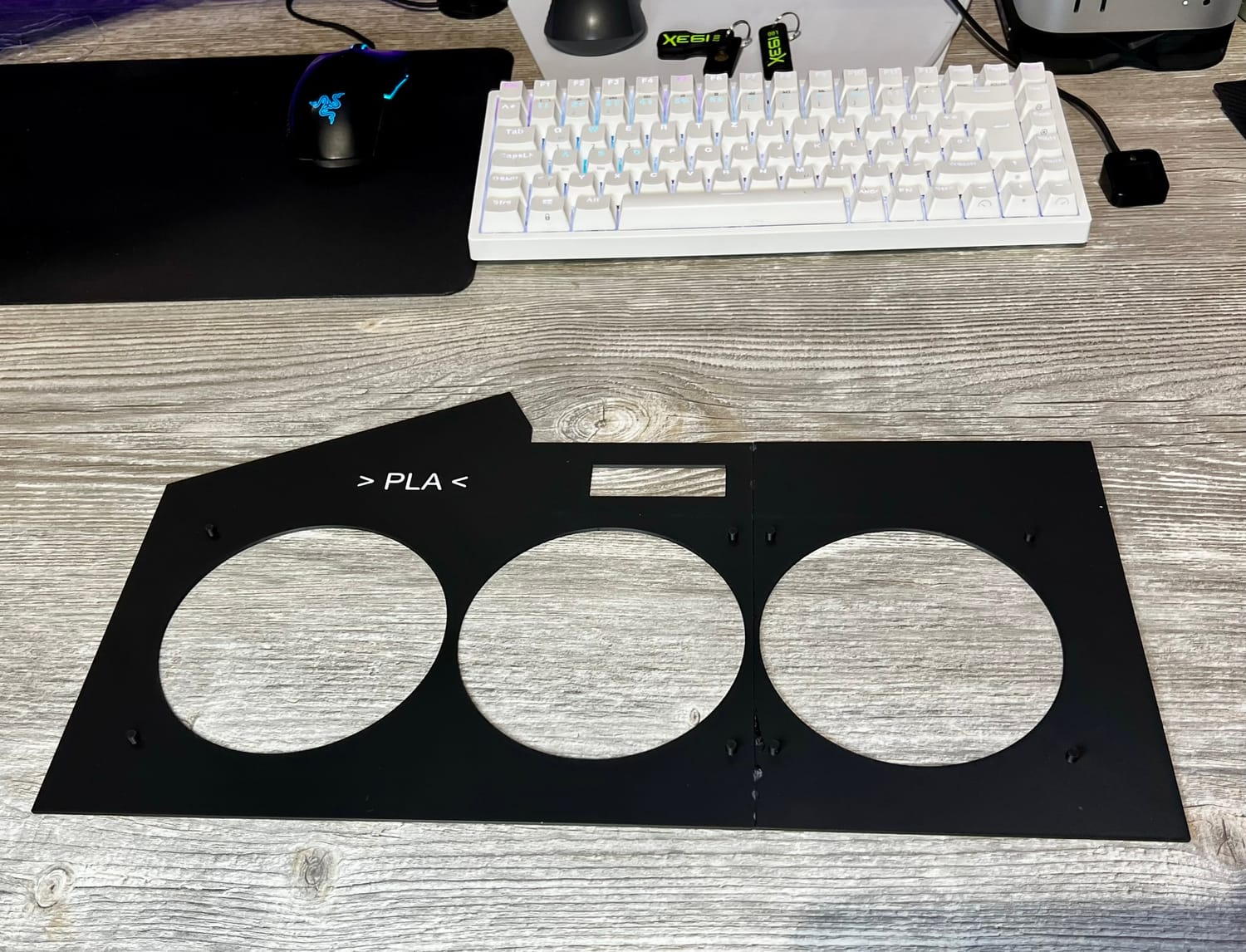

    No mounting holes in the surface
  • Printer
    Bambu Lab H2D
  • Material
    Polymaker Panchroma PLA
    Cold White
  • Made by
    IBEX

How it came about

This part took the longest: five months and several revisions. The current version has no mounting holes at all, so nothing interrupts the surface. You can tell it apart by the small tab at the top right.

View in 3D
More Images

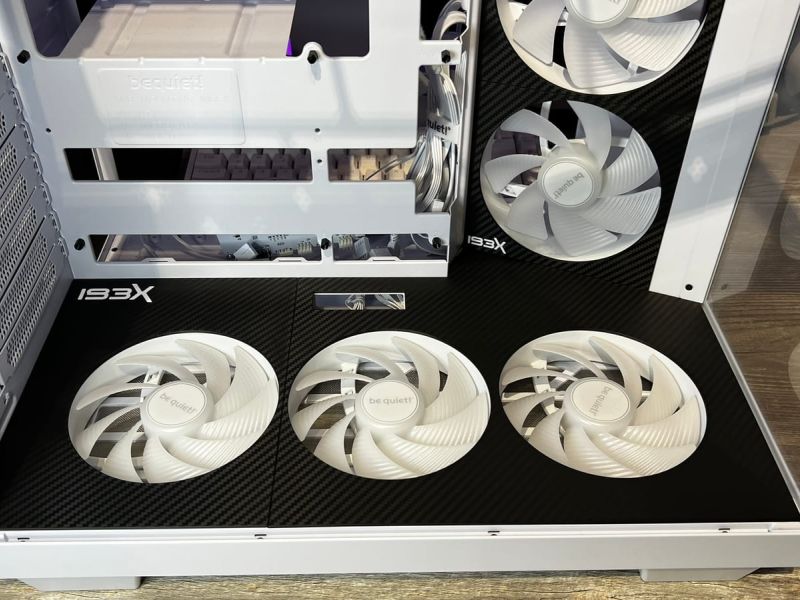

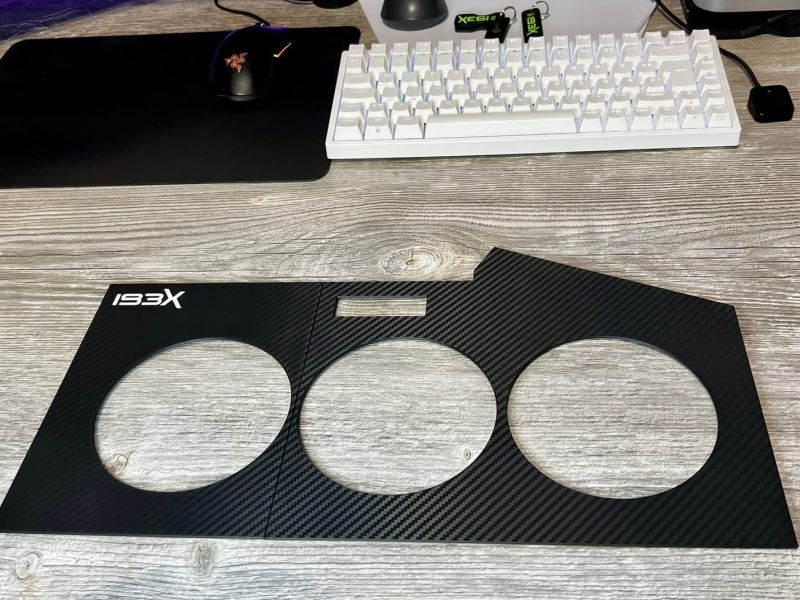

Bottom fans and the printed bottom plate with the IBEX logo

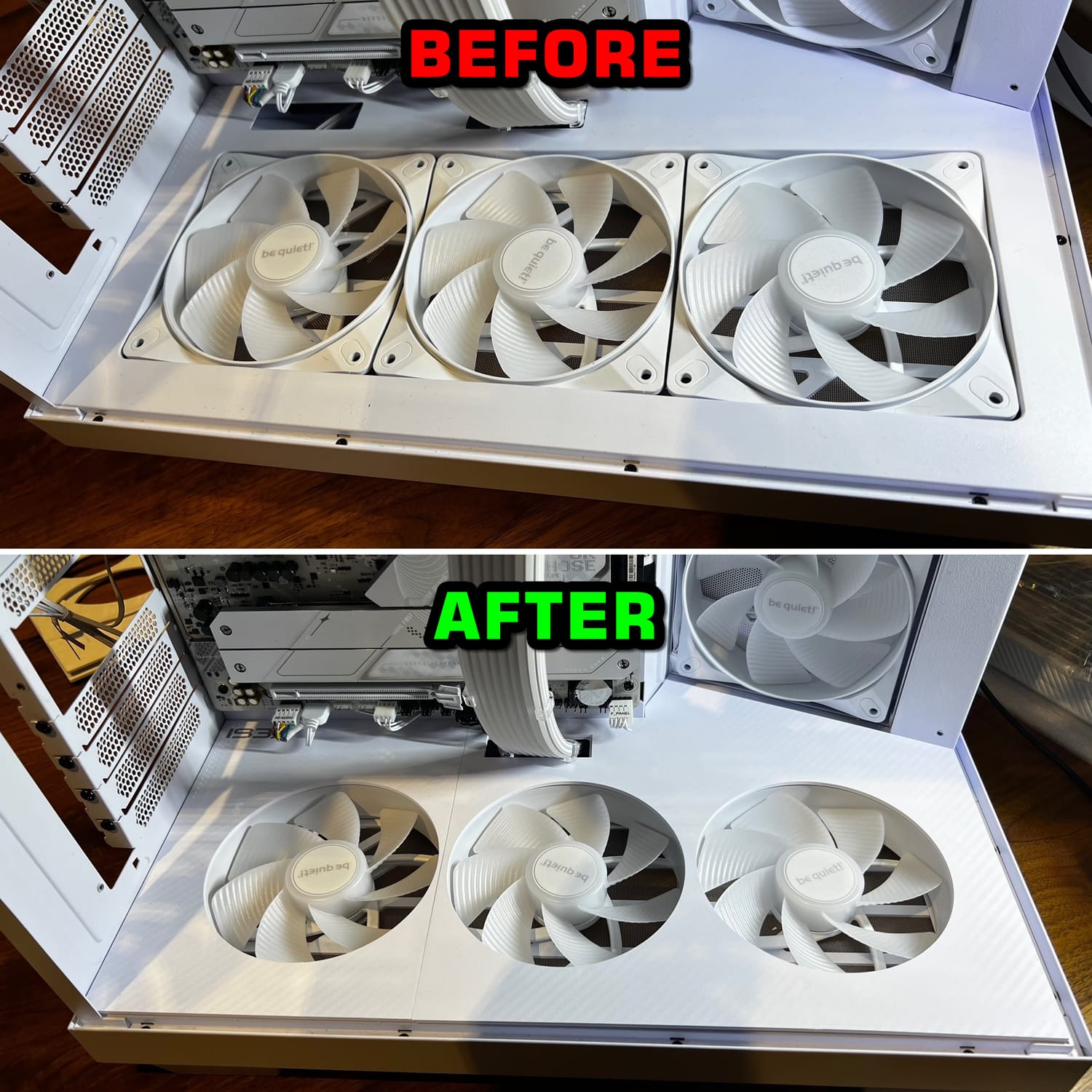

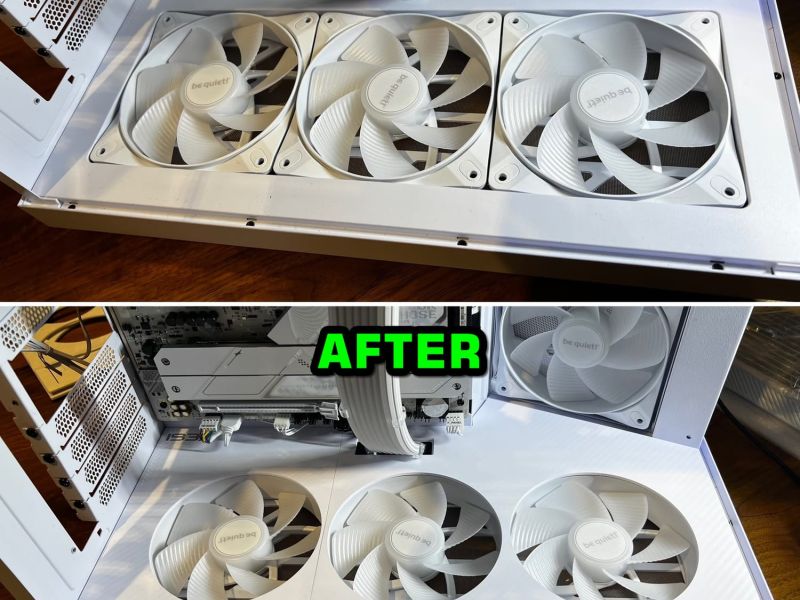

Five months for a floor.

Fans and nothing else.

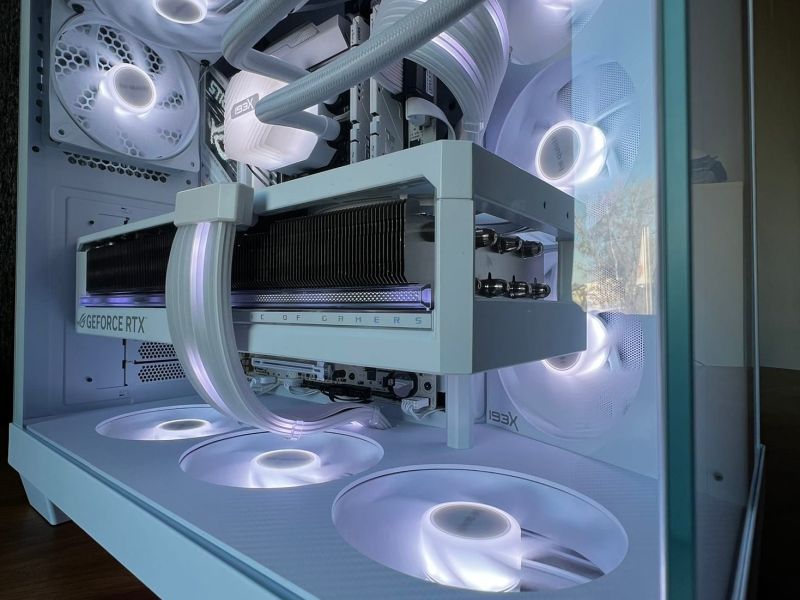

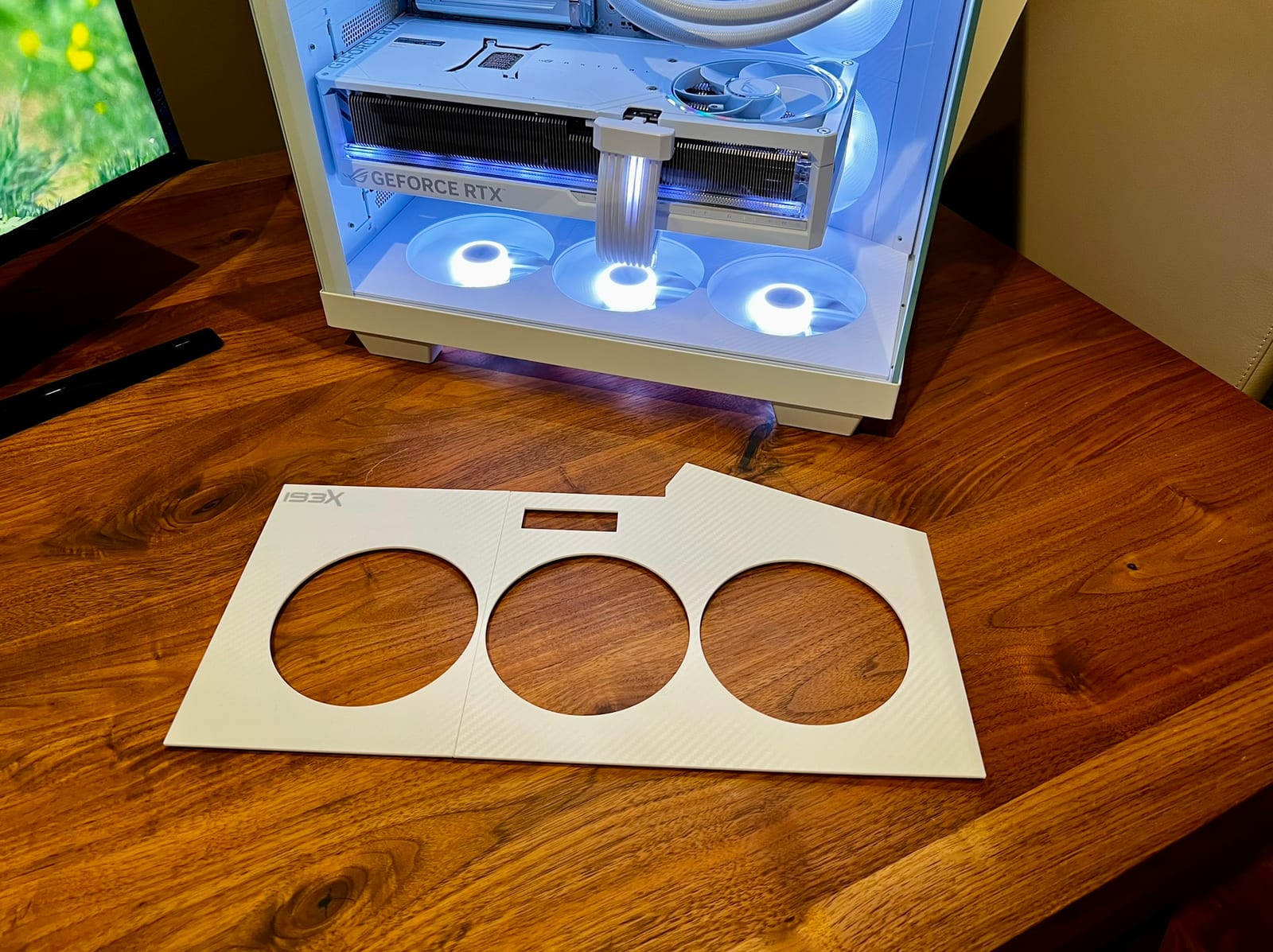

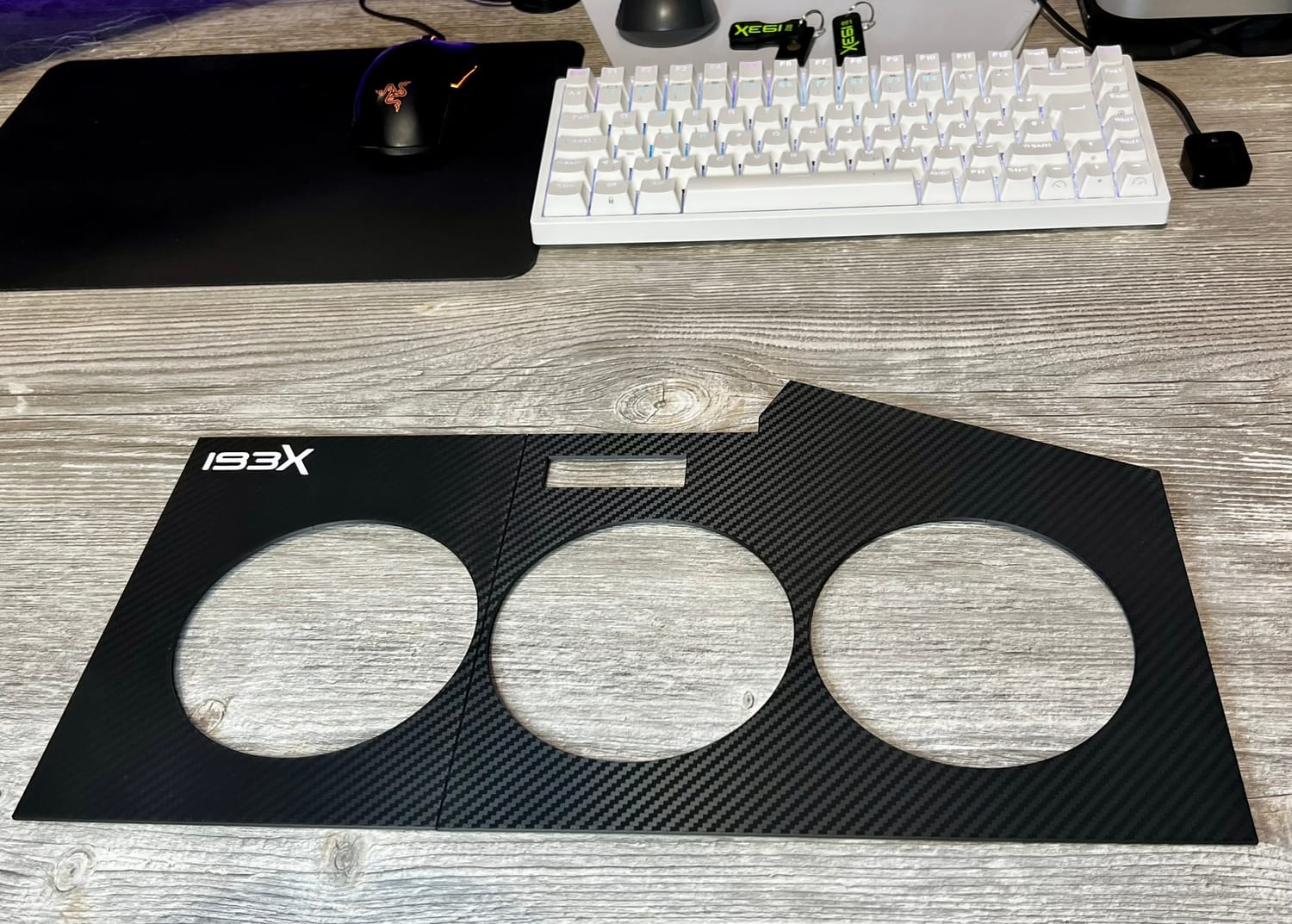

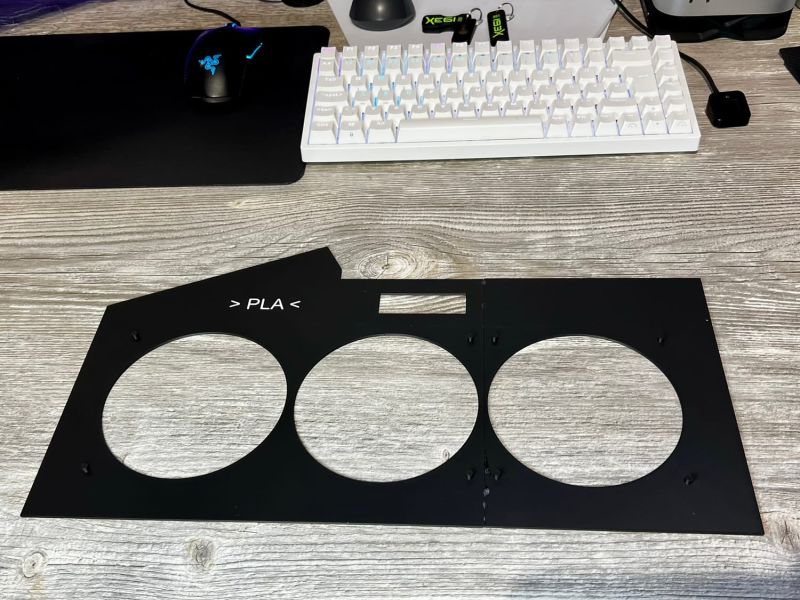

Three round openings for the bottom fans. Everything around them stays closed, so the floor of the case looks like one piece.

Two versions.

The square cutout above the fans sits where the case has its own opening, so the 12VHPWR cable can run straight up to the graphics card. If you route that cable another way or build without a graphics card, the closed plate covers the opening.

Get the file.

Designed and printed by me on a Bambu Lab H2D. The print files for this case mod and the other Light Base 500 LX parts are on my MakerWorld profile.

Open MakerWorld profile

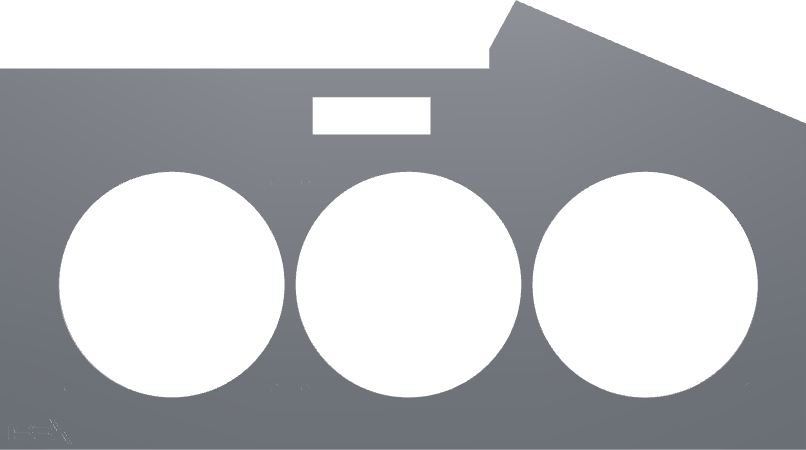

View the part in 3D

Click to view, drag to turn, scroll to zoom. Shown with the cutout for the 12VHPWR cable.
