be quiet! Light Base 500 LX Top Radiator Cover

Case

be quiet! Light Base 500 LX
3D-printed case mod
Position

Top of the case, over the 360 mm radiator
Build

Two pieces held together by magnets
Surface

Lettering on the long side
circuit pattern on the front
Printer

Bambu Lab H2D
Material

Polymaker Panchroma PLA
Cold White
Made by

How it came about

The Light Base 500 LX leaves the radiator at the top of the case in plain view. This cover hides it behind two printed panels, one along the side and one across the front. Magnets hold them together, so there are no screws to see.

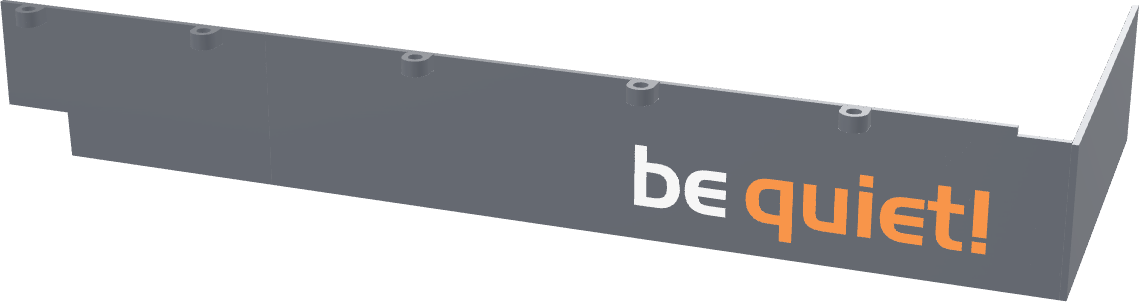

View in 3D

More Images

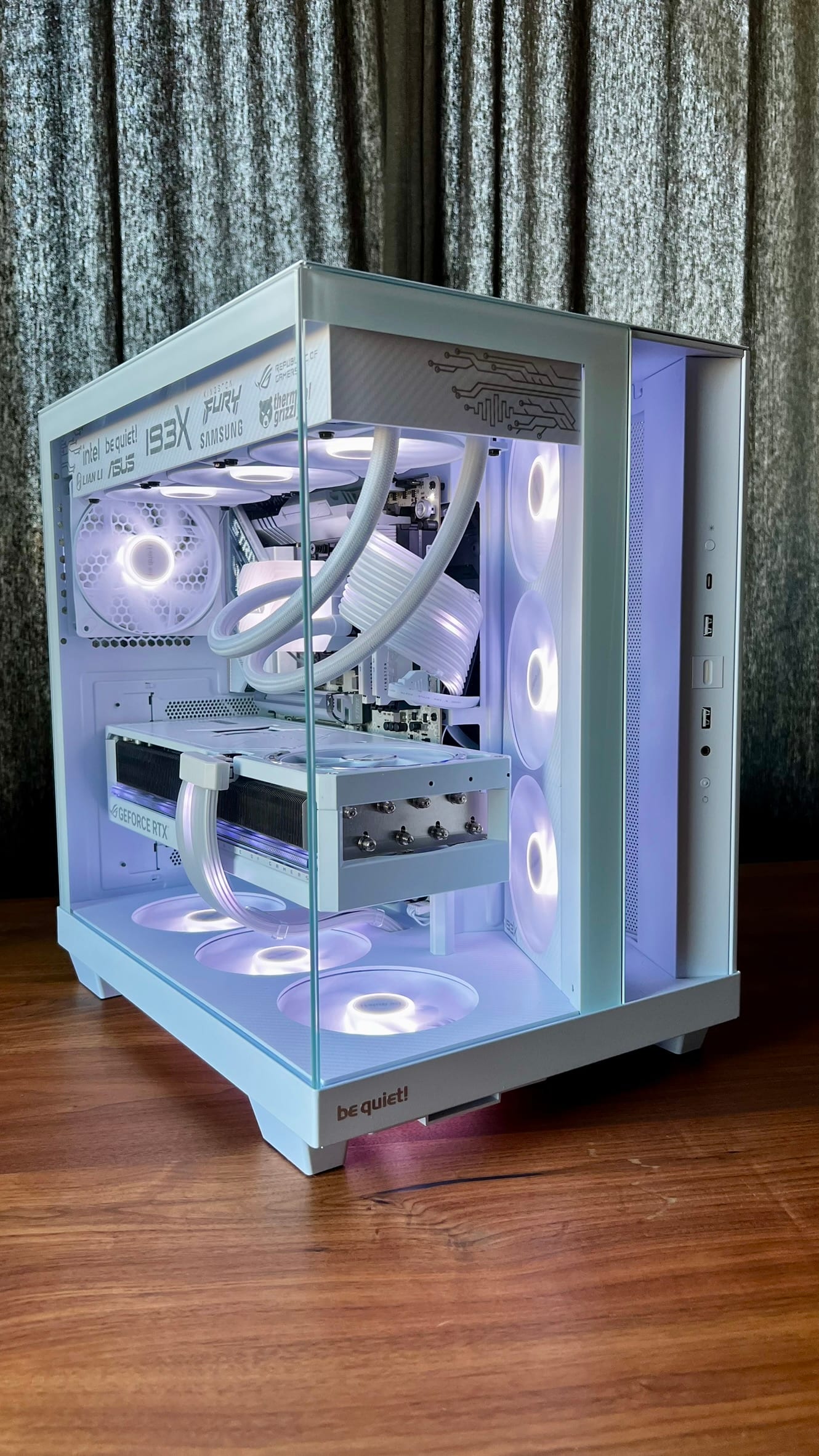

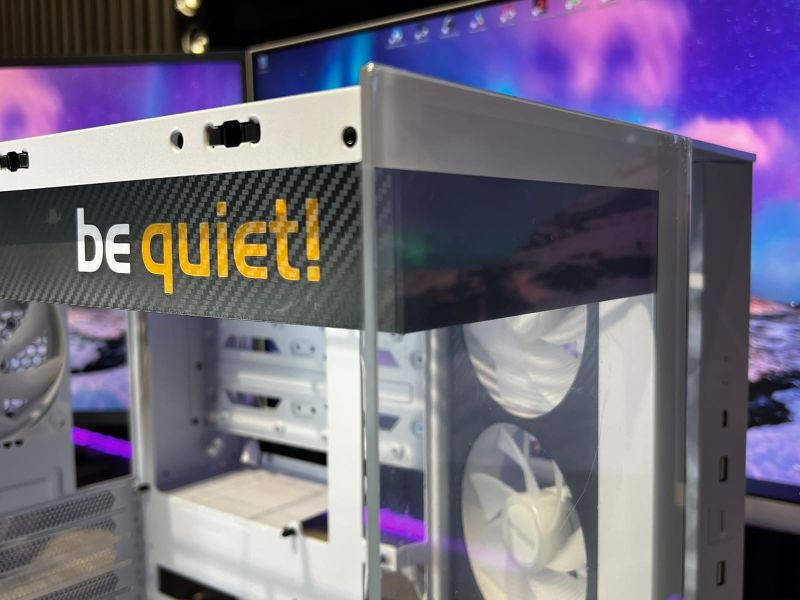

The printed radiator cover with be quiet! lettering on top of the case

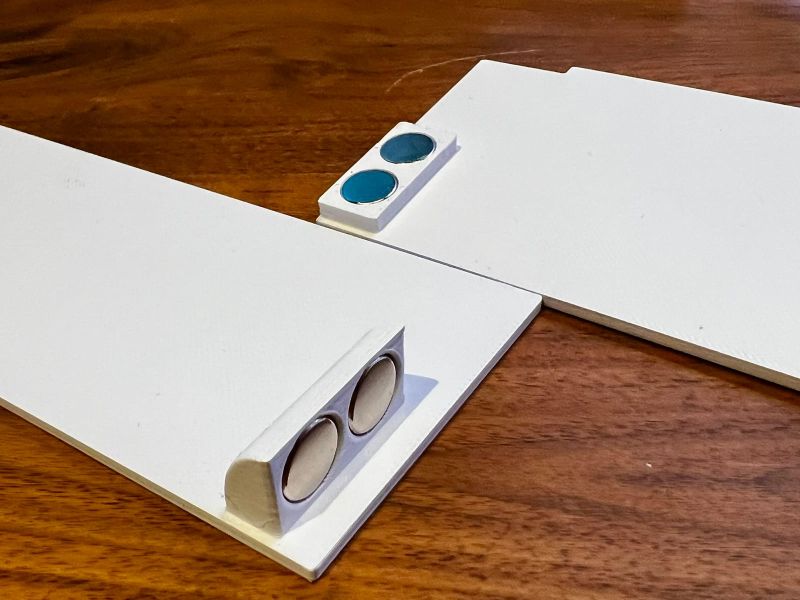

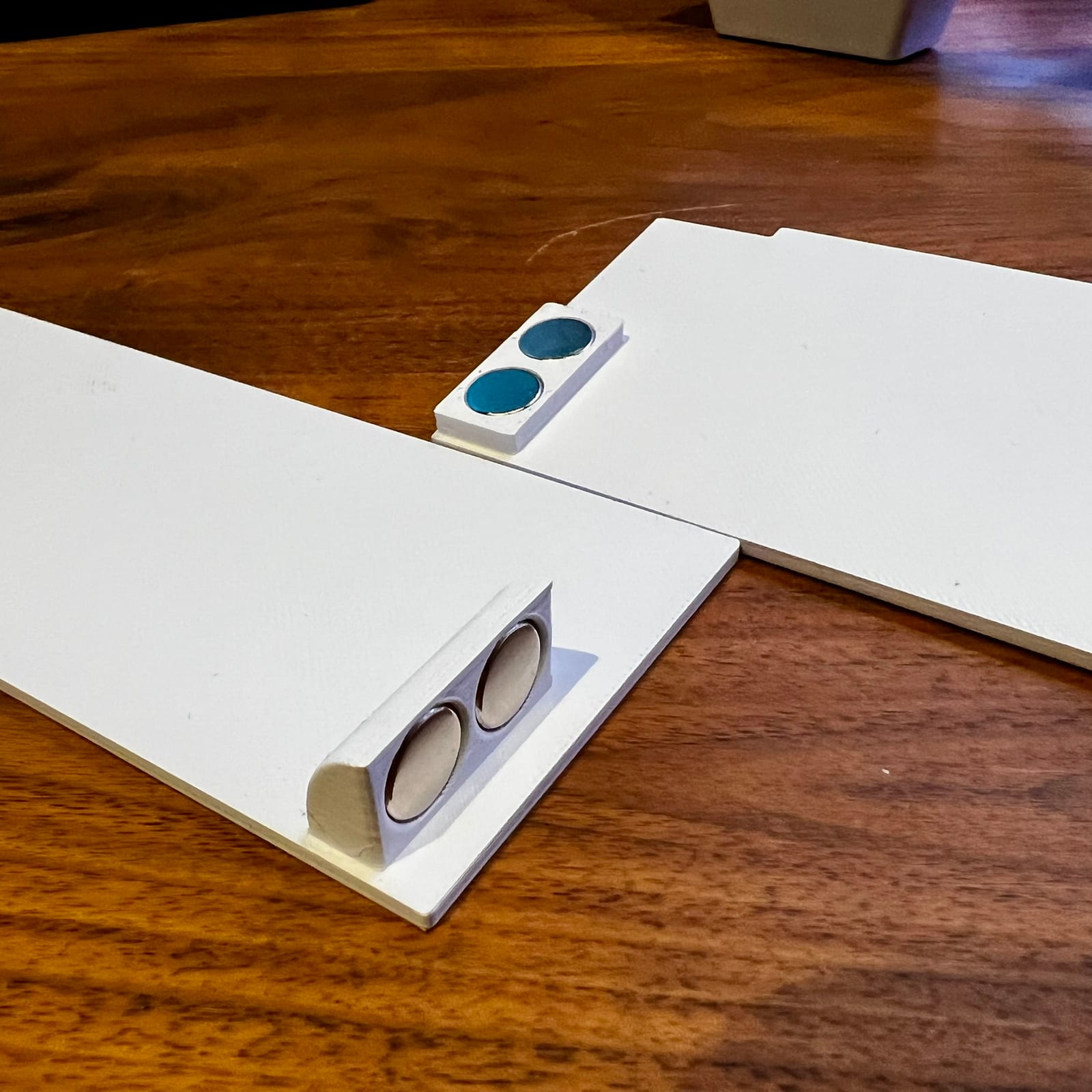

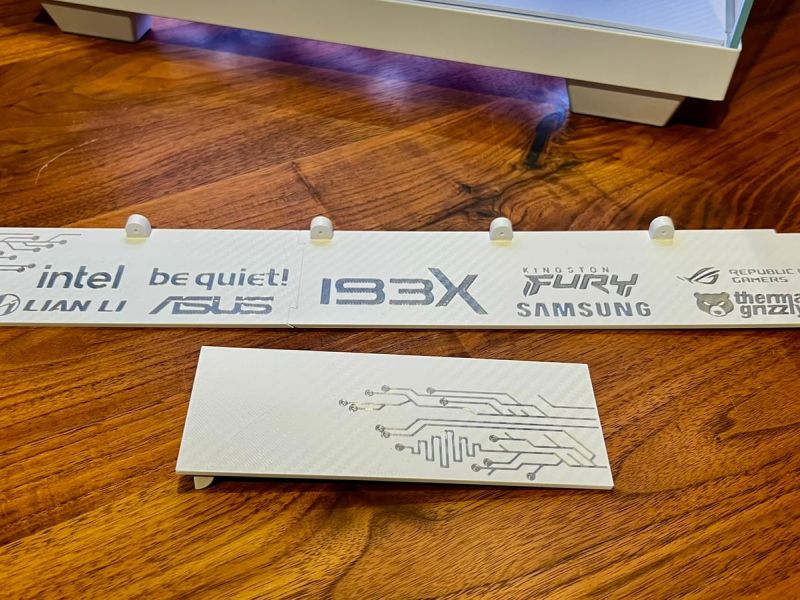

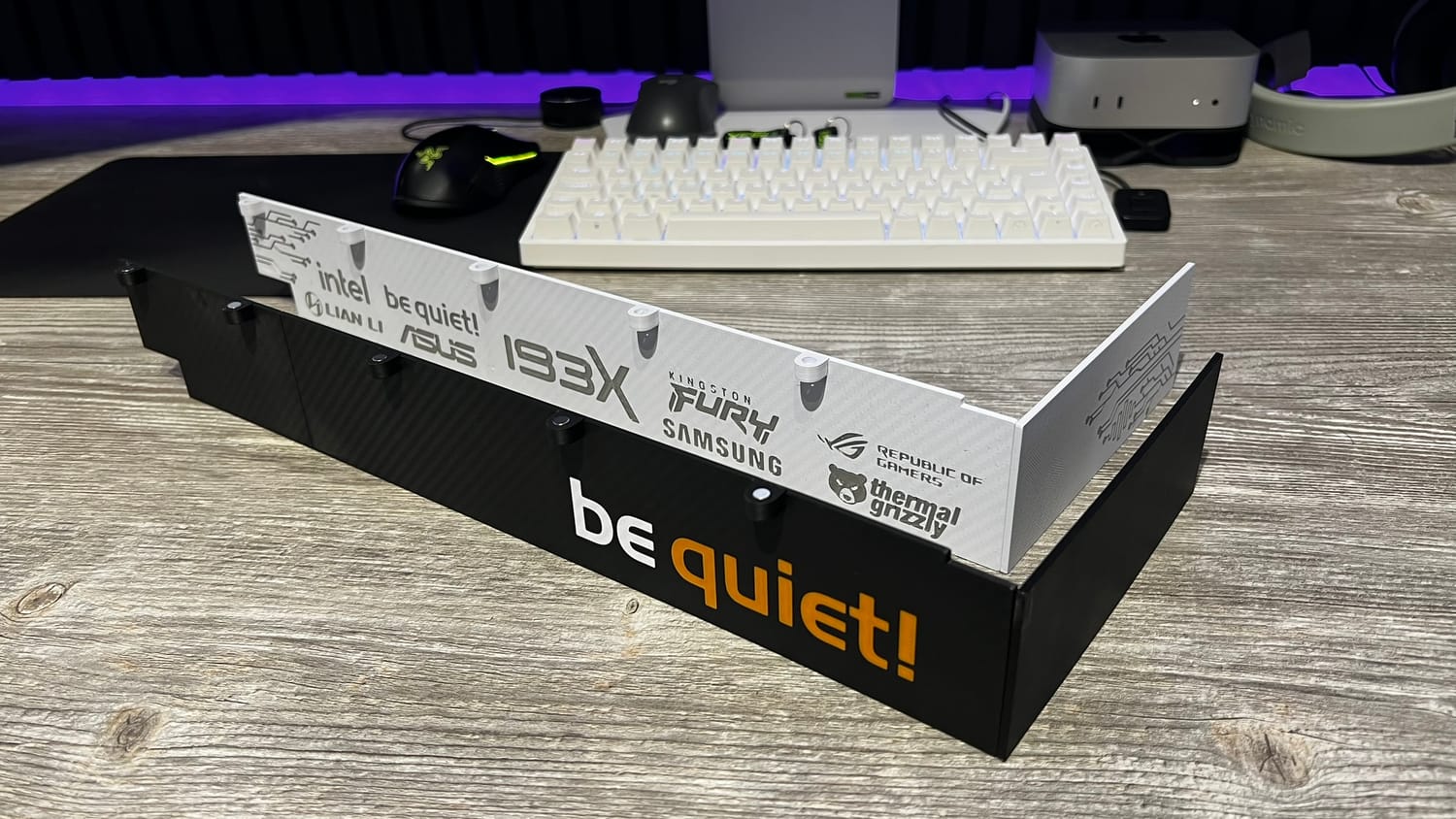

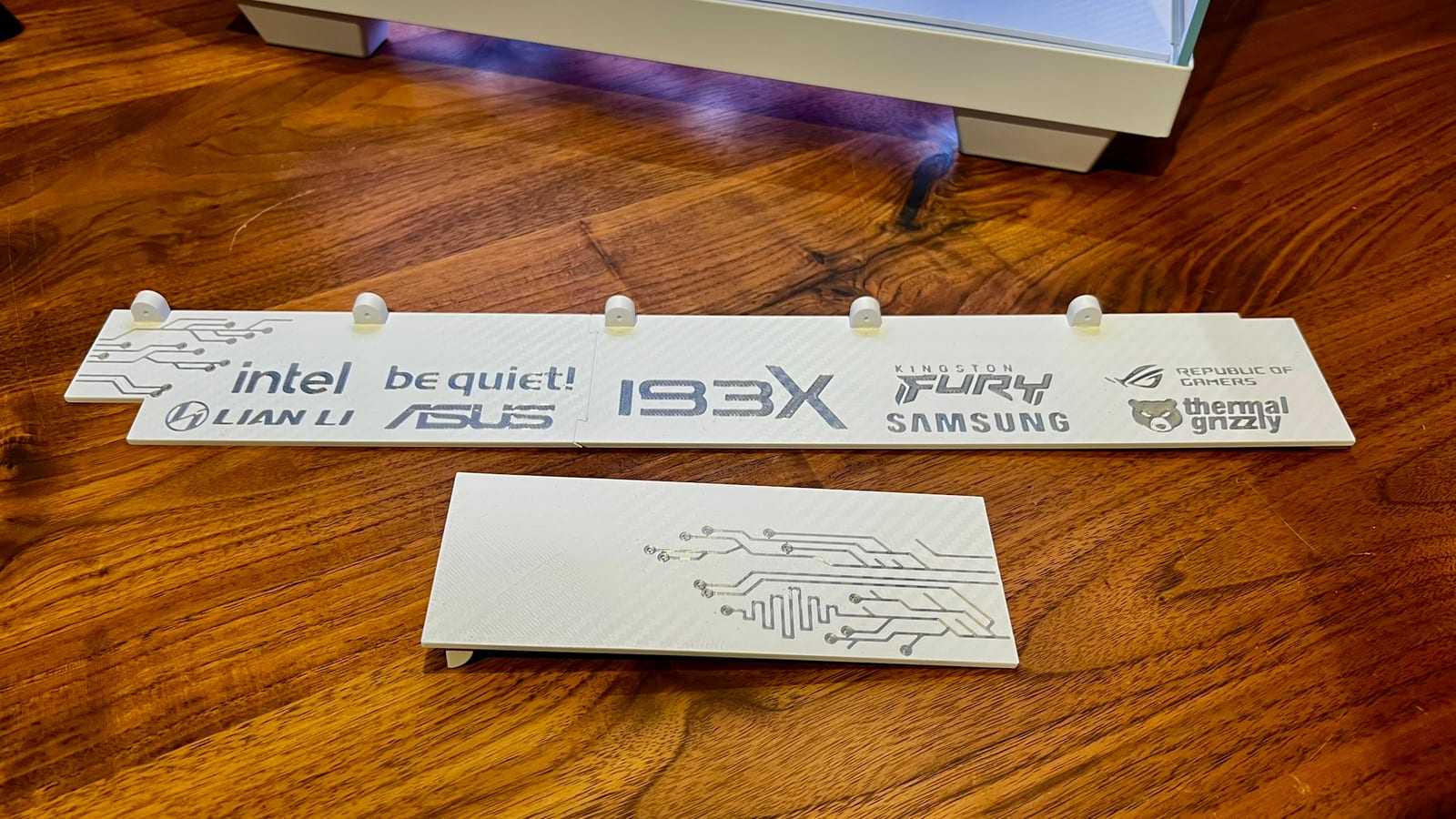

Two pieces. No screws.

Held by magnets.

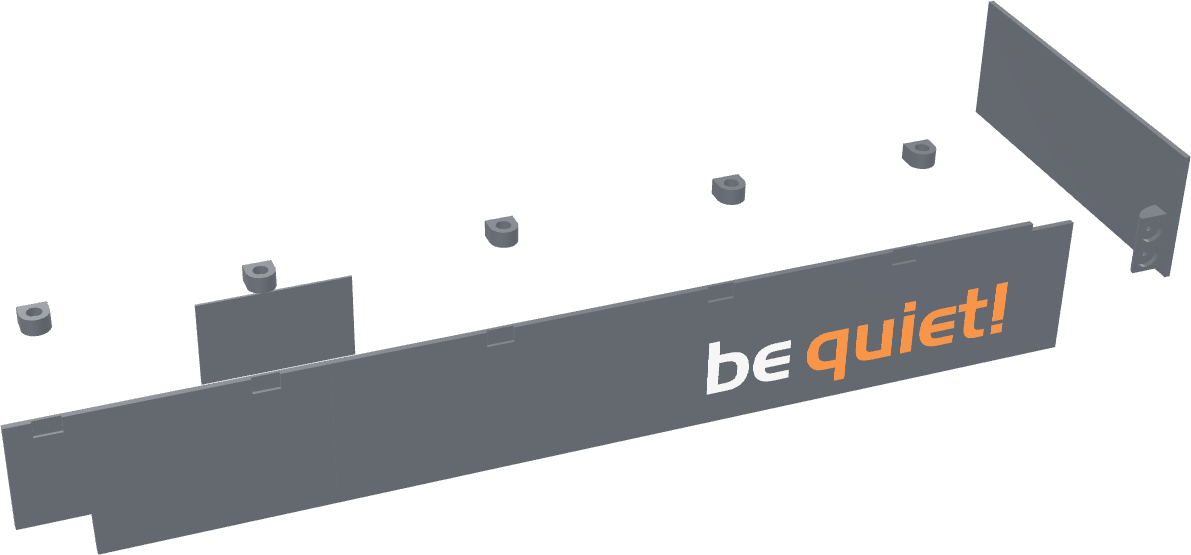

The side panel and the front panel meet in the corner. Magnets set into both pieces pull them together, and the cover comes off again just as easily.

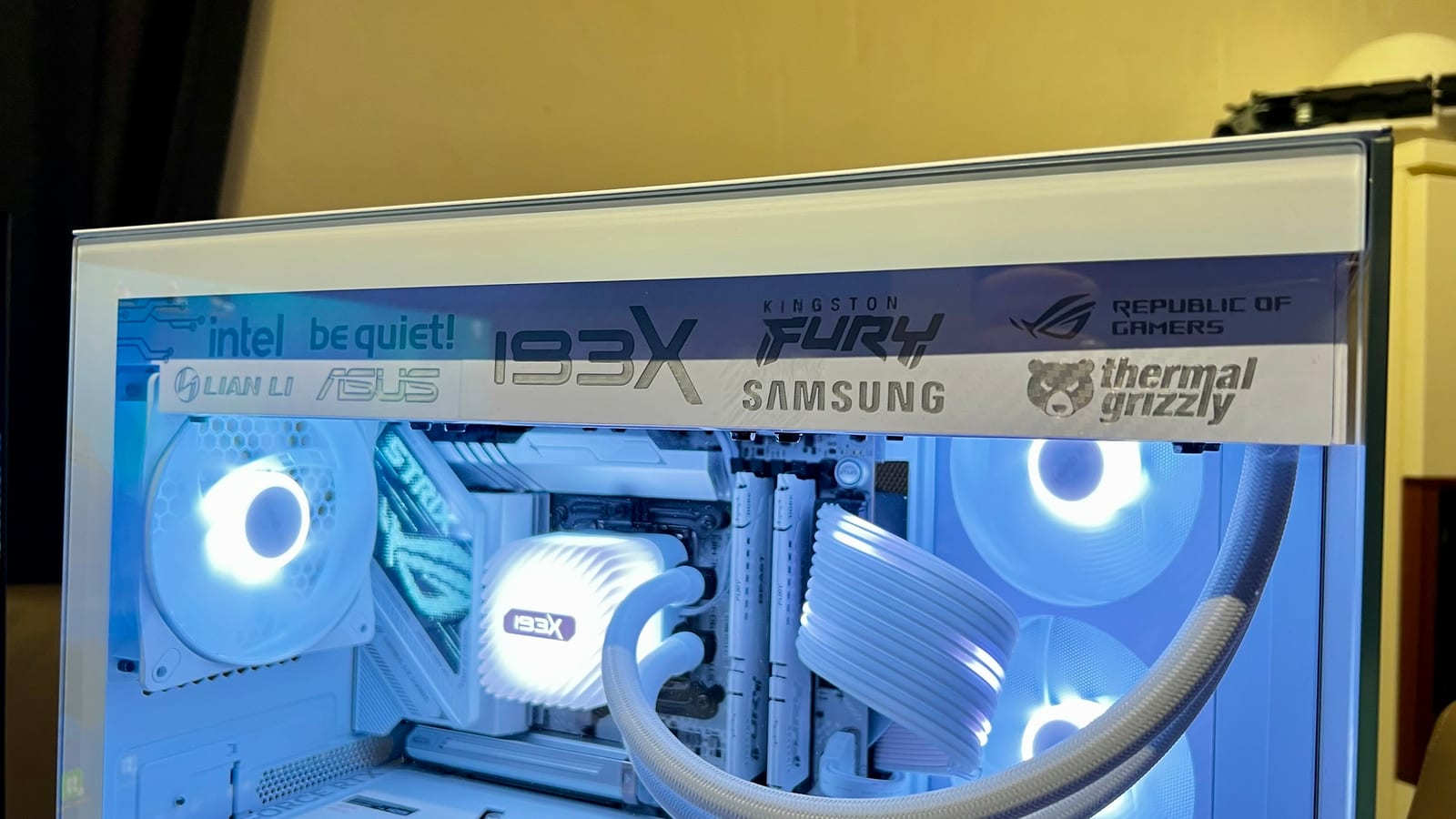

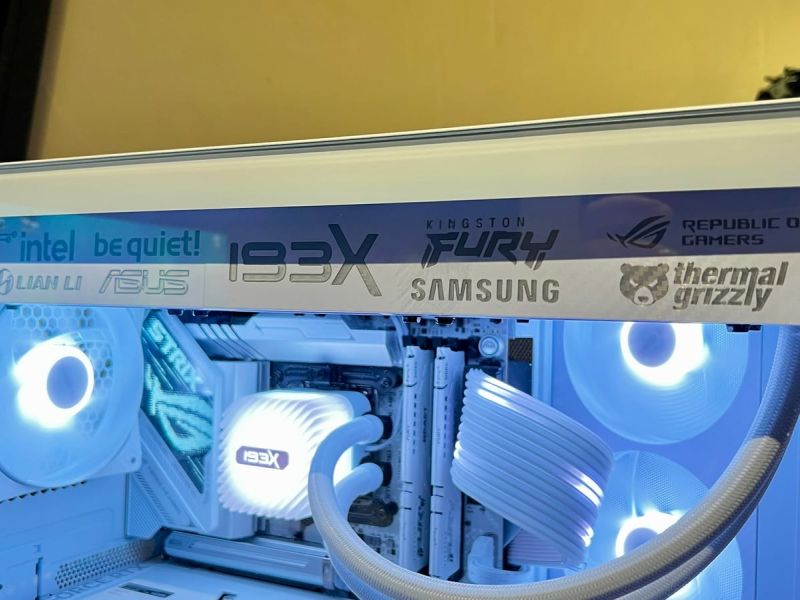

Lettering and circuits.

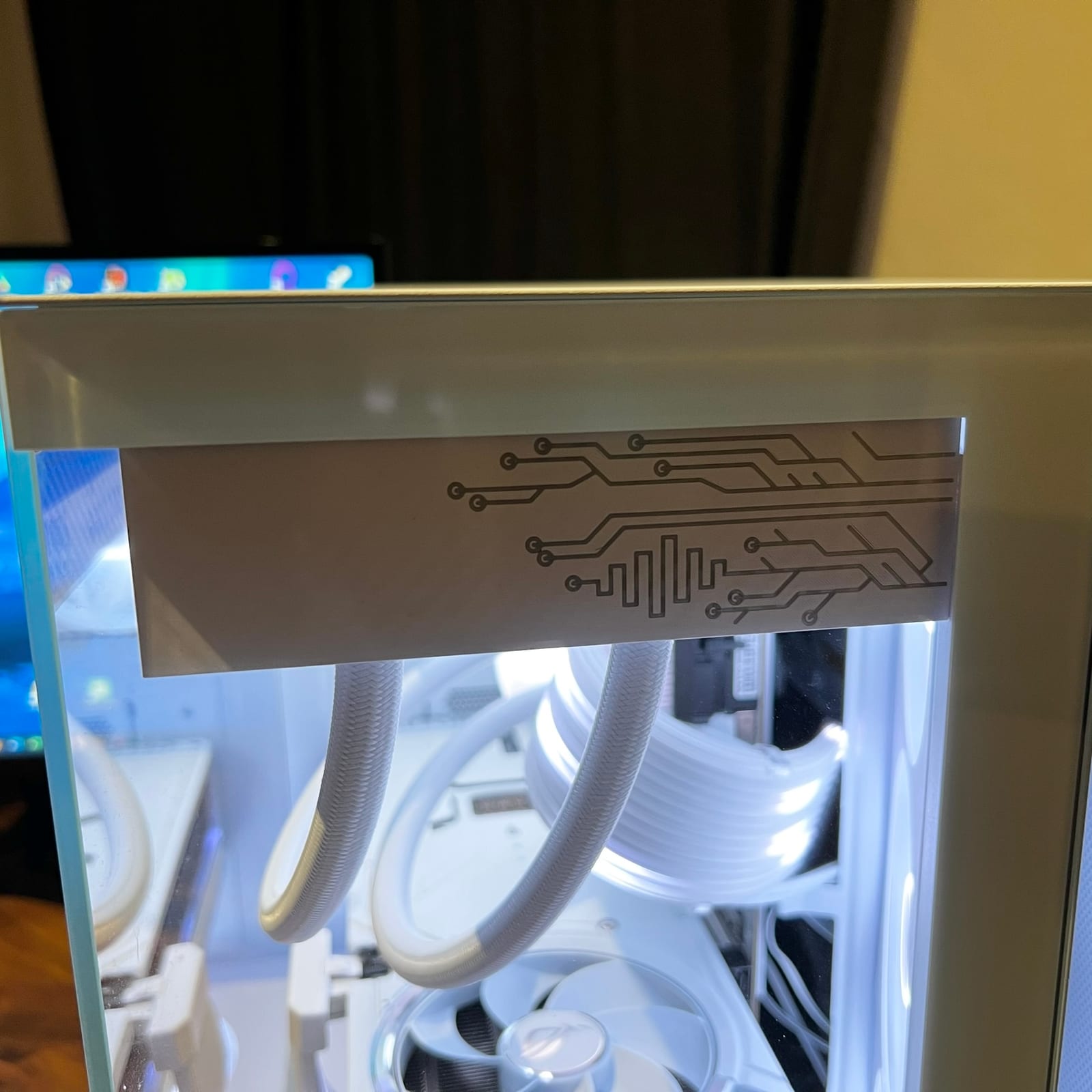

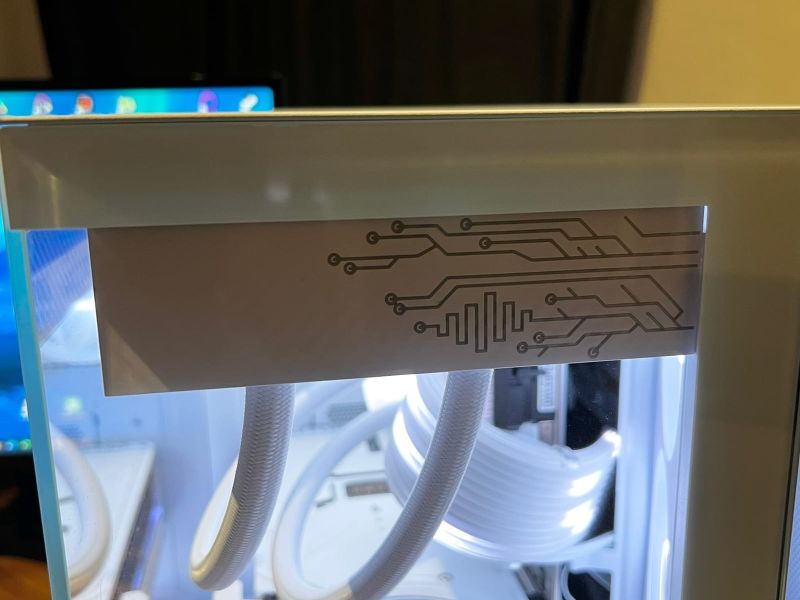

The long face carries the lettering, printed in colour as part of the panel. The front has a circuit trace a few tenths of a millimetre deep that only shows when the lighting falls across it at an angle.
