Audi TT 8J Airbox Inlet

Printer

Bambu Lab X1 Carbon
Material

eSun TPU 85A
flexible, black
Scan & Modelling

Thanks to

How it came about

The Headlight Air Intake collects the air, and this part delivers it. An adapter sits on the air filter housing, and a short hose printed in TPU connects it to the headlight intake, so the air goes straight into the airbox.

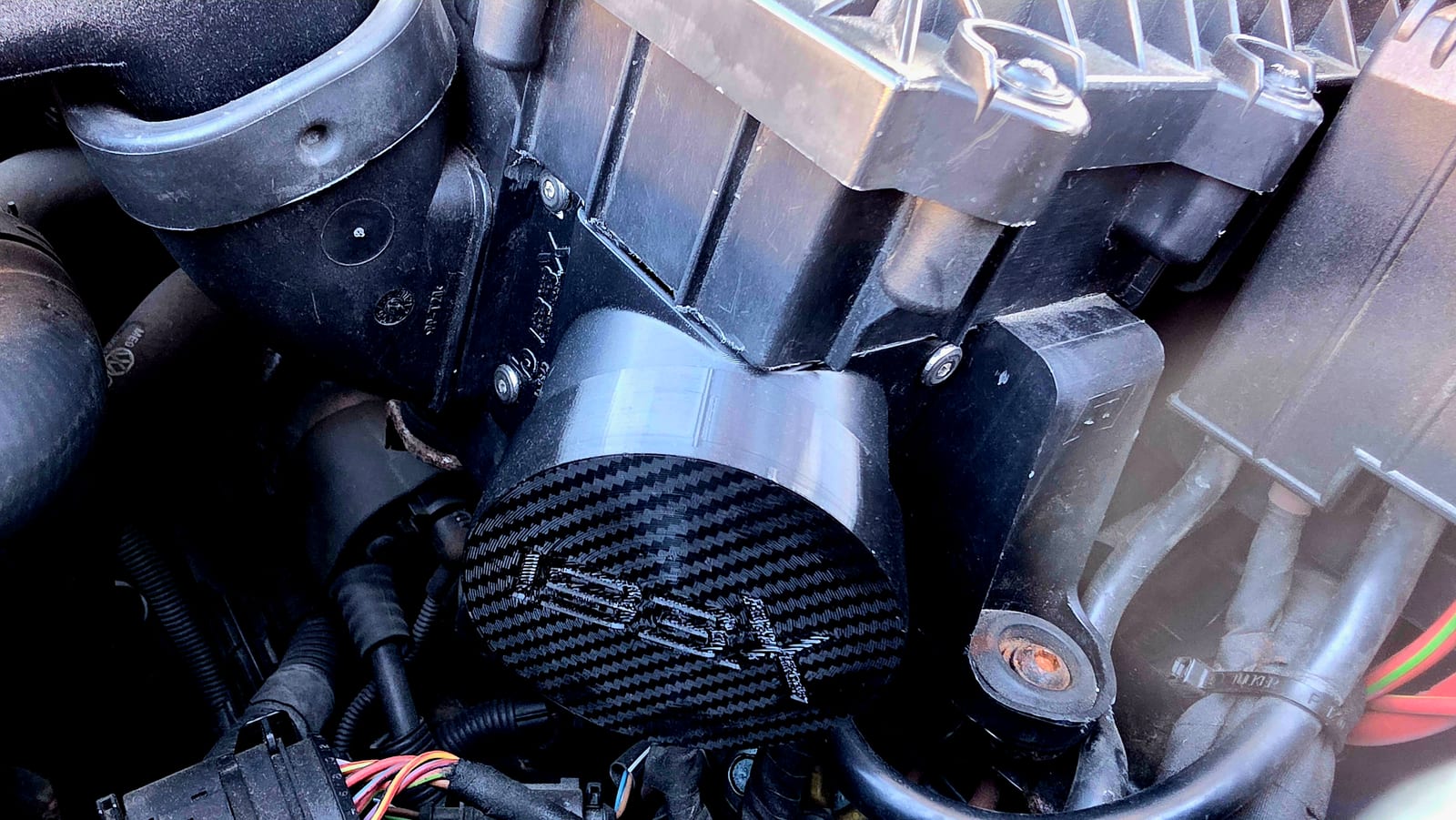

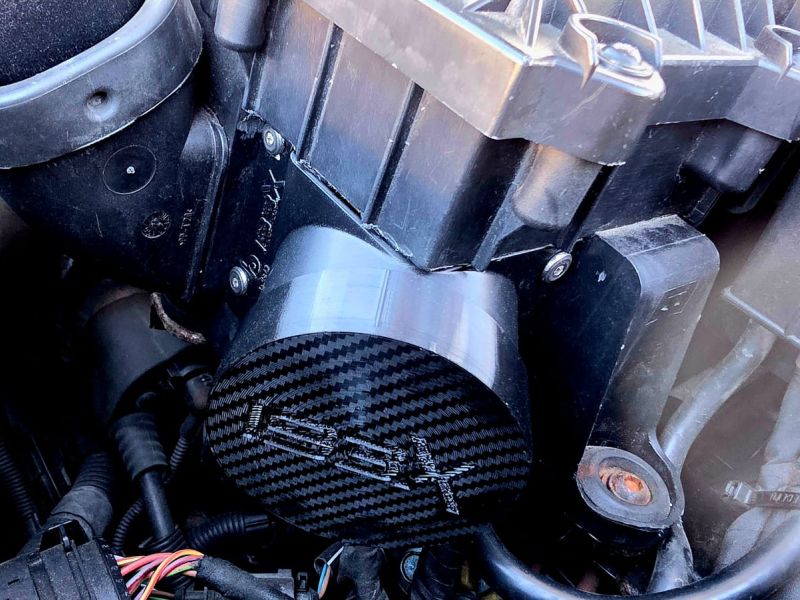

Without the hose, a flexible TPU cap with the IBEX logo closes the inlet. Scan and modelling were done by b3sD; the hose follows the scanned route from the headlight intake to the airbox.

More images

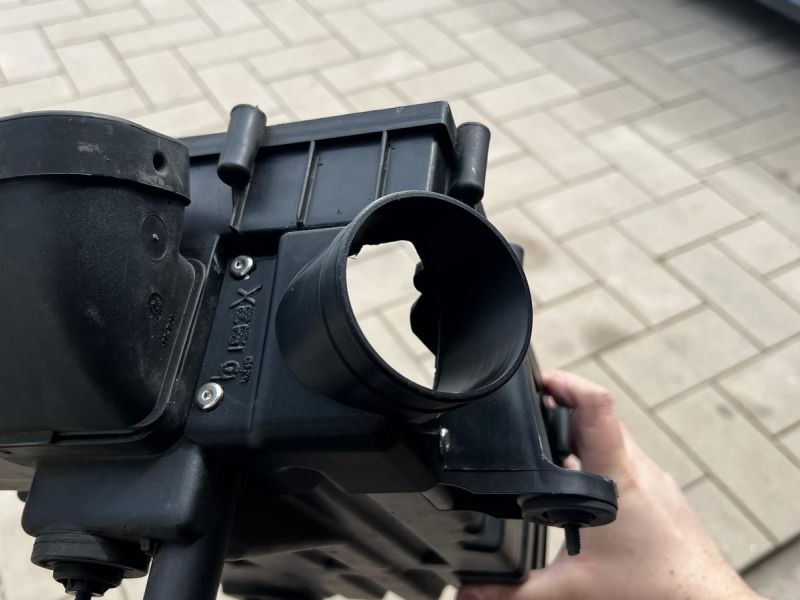

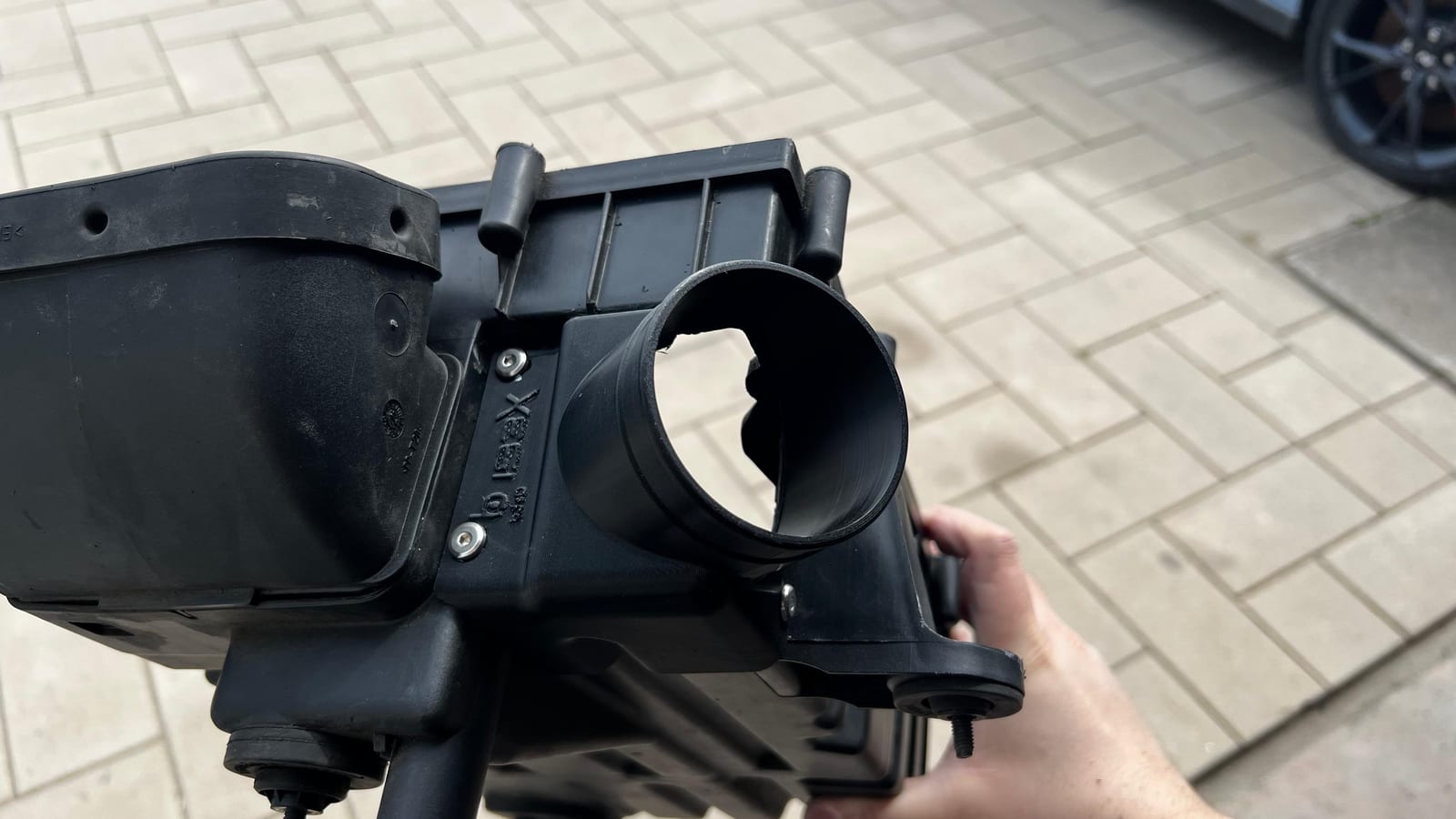

Airbox lid with the printed inlet adapter fitted

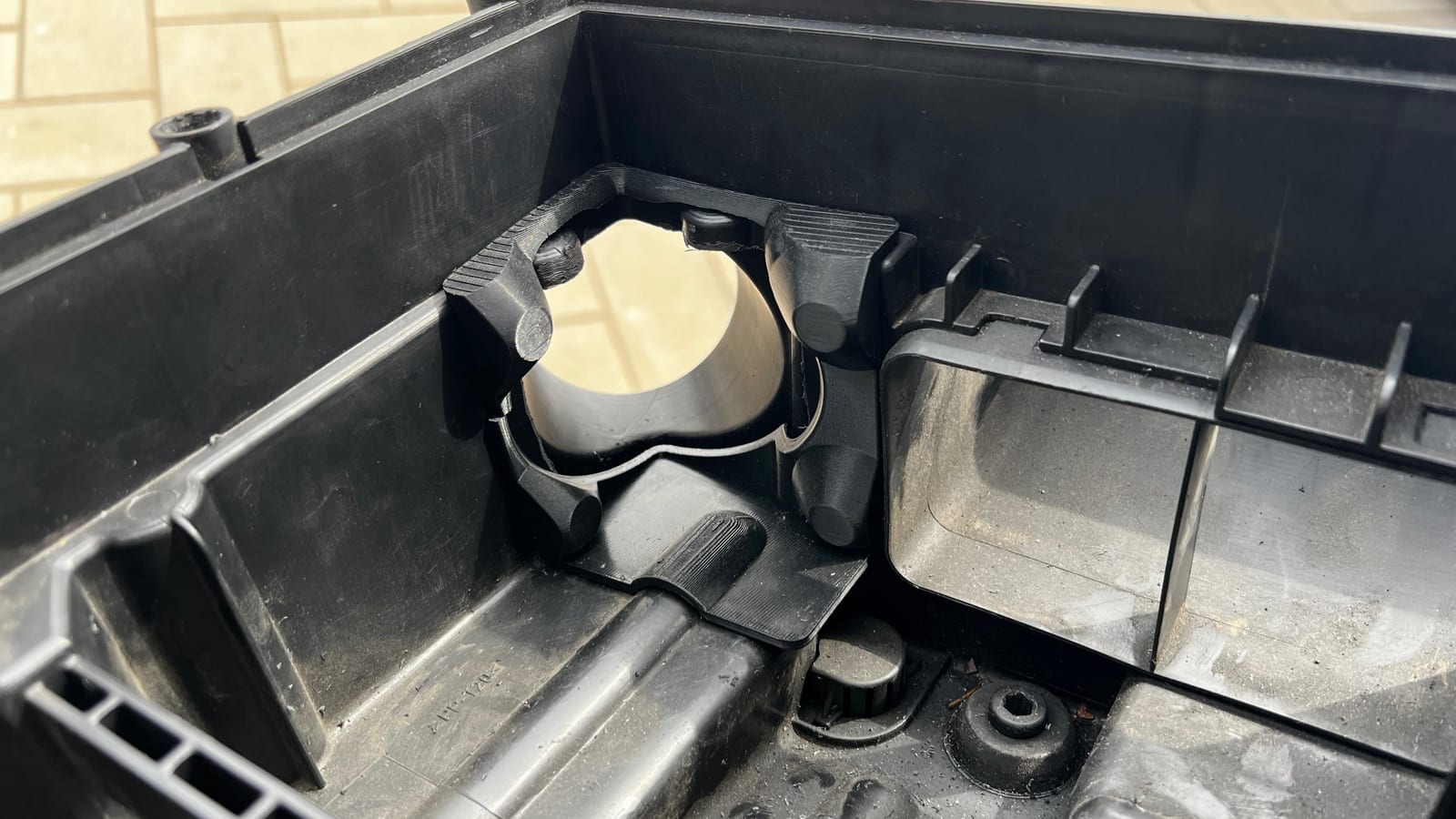

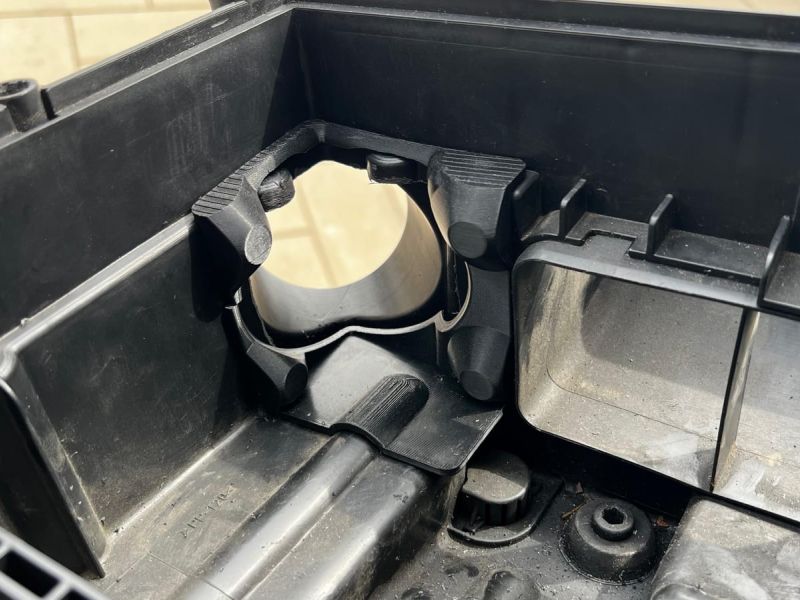

Inside the airbox: the adapter seen from below

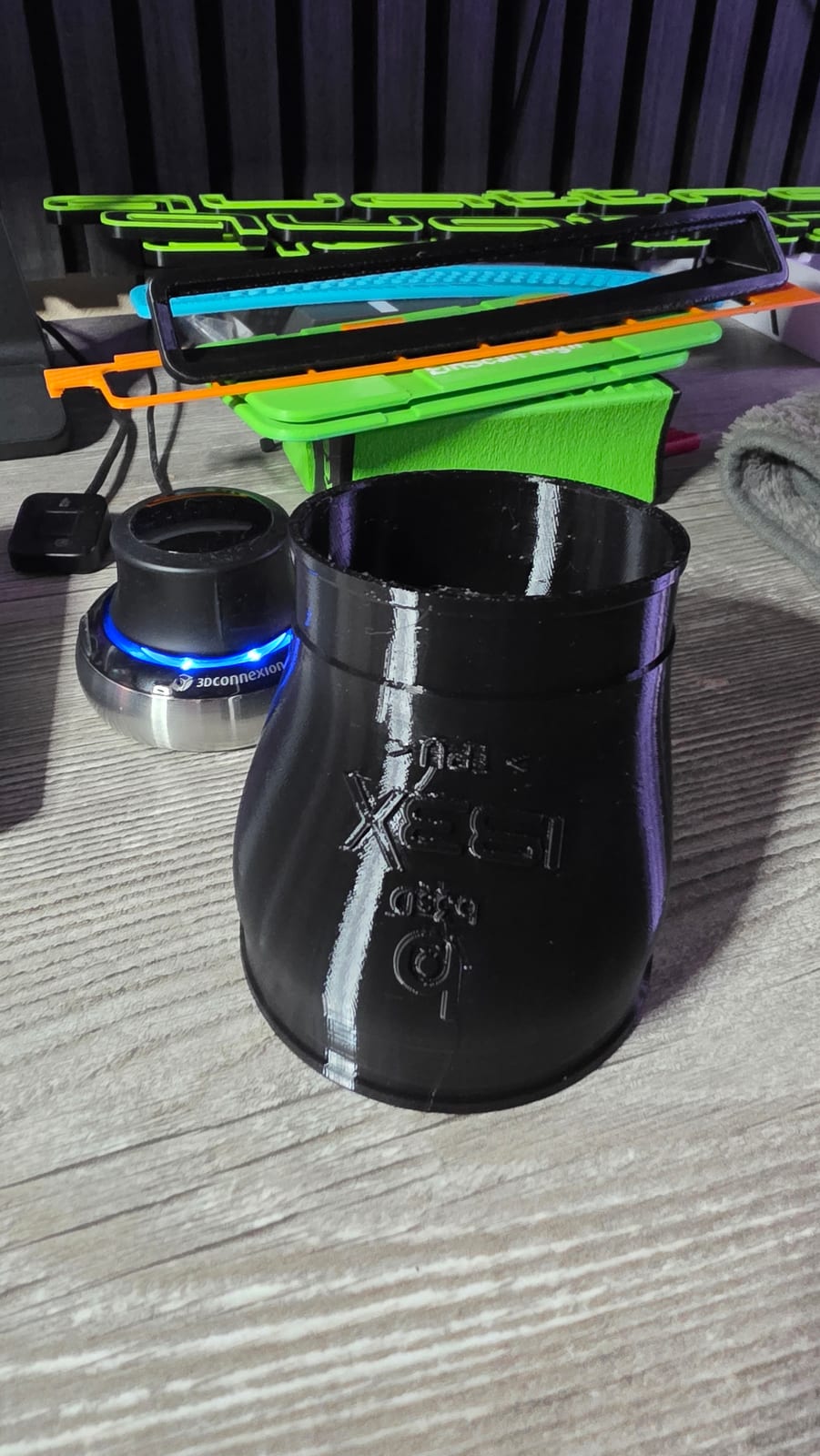

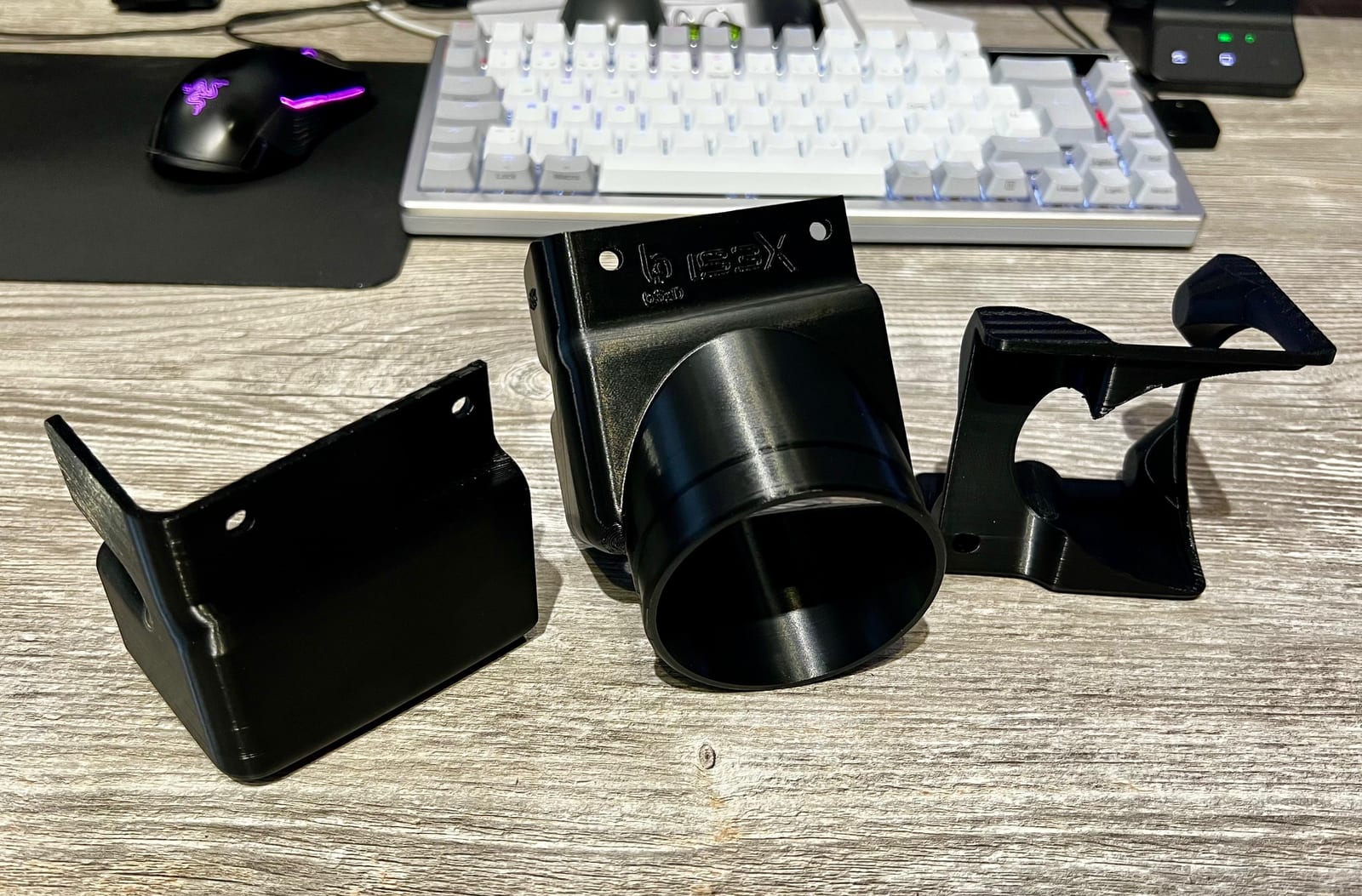

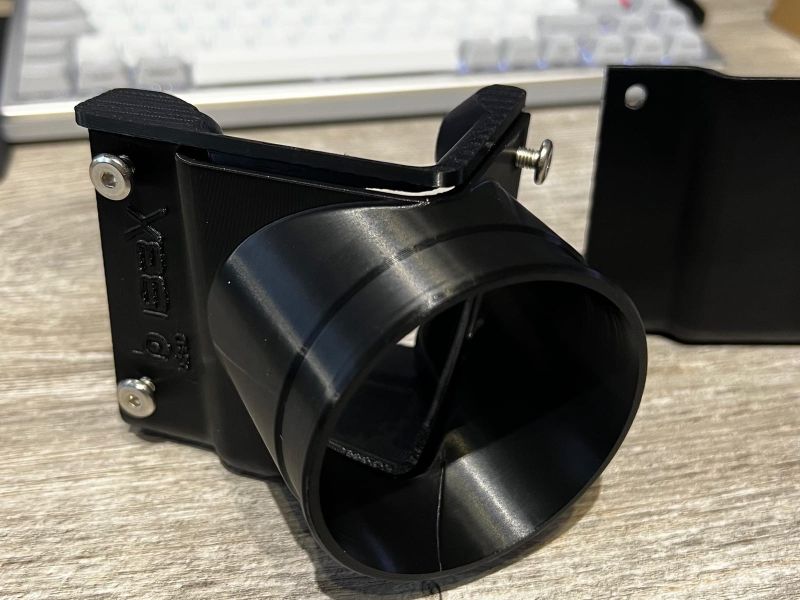

Printed inlet adapter on the desk

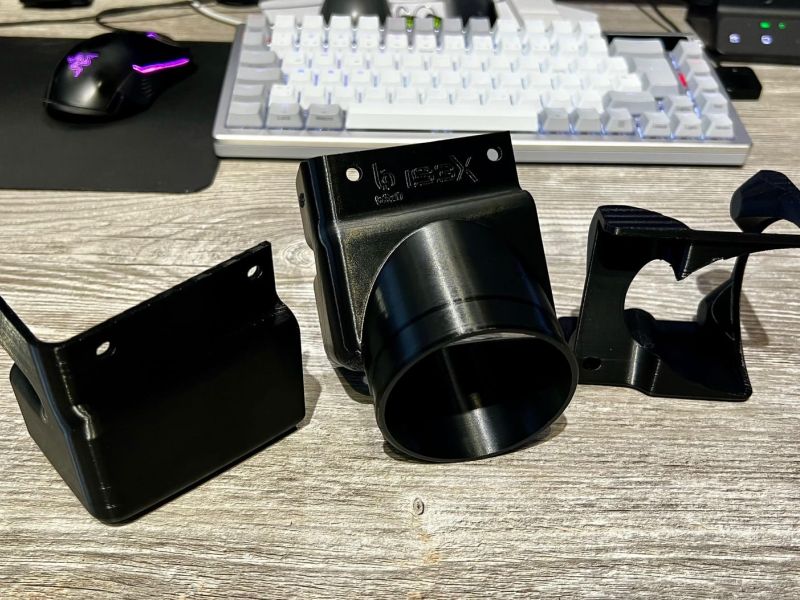

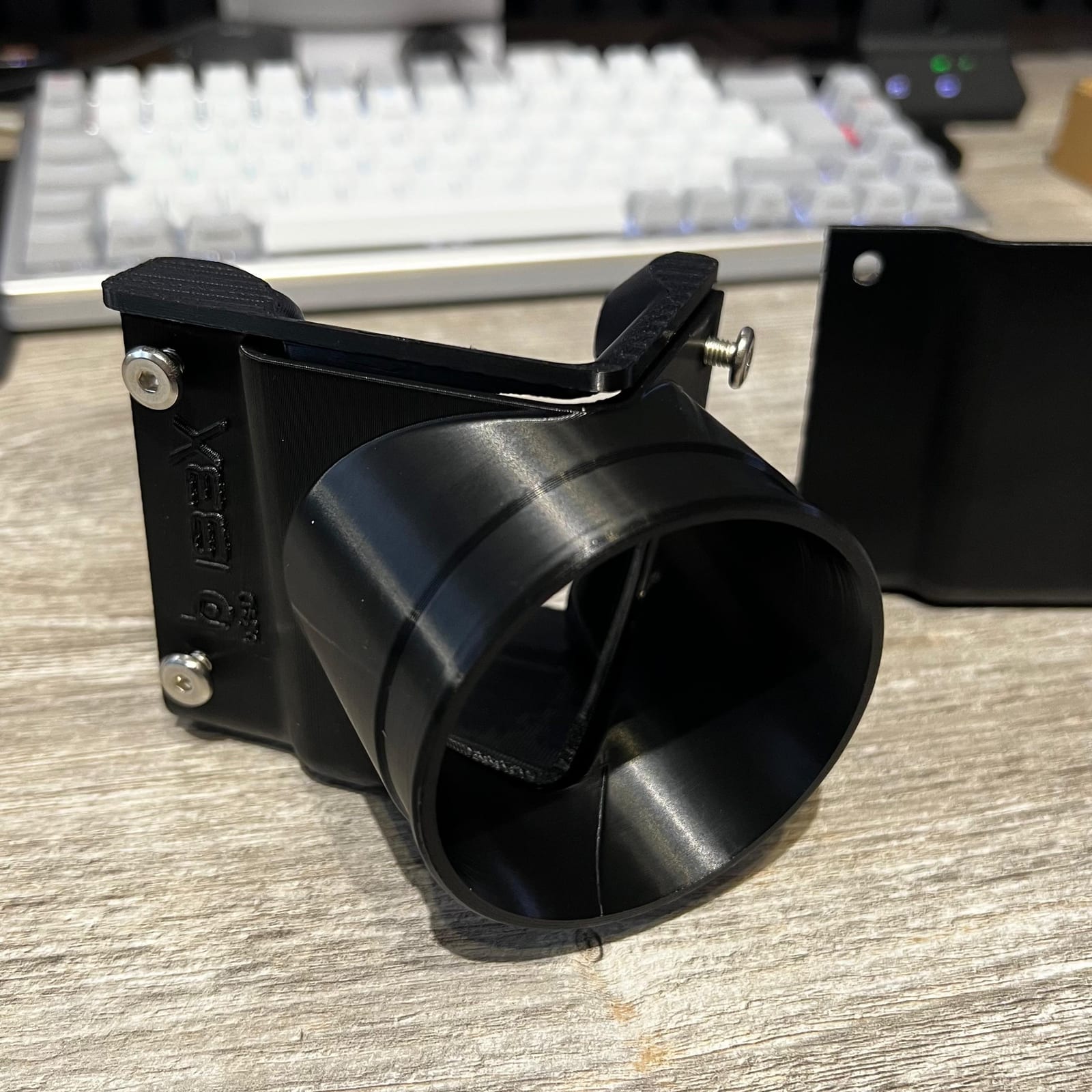

Adapter with its mounting bracket

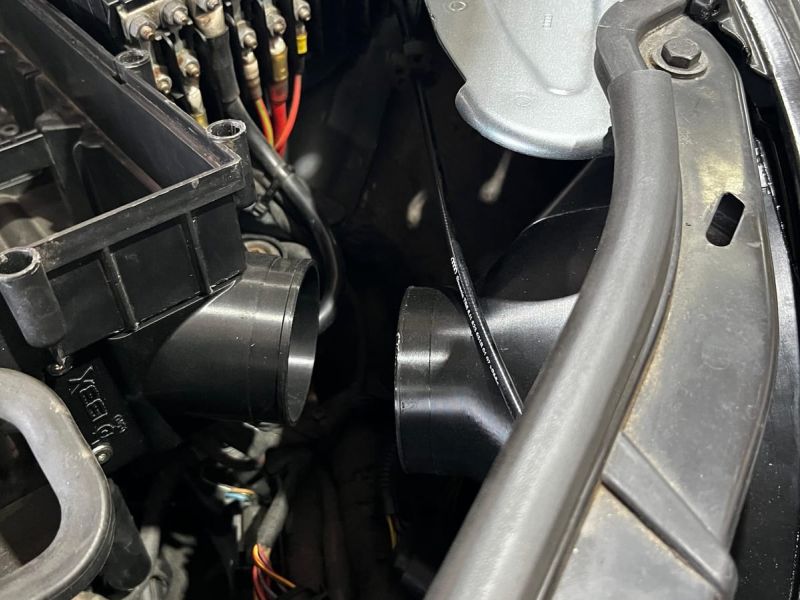

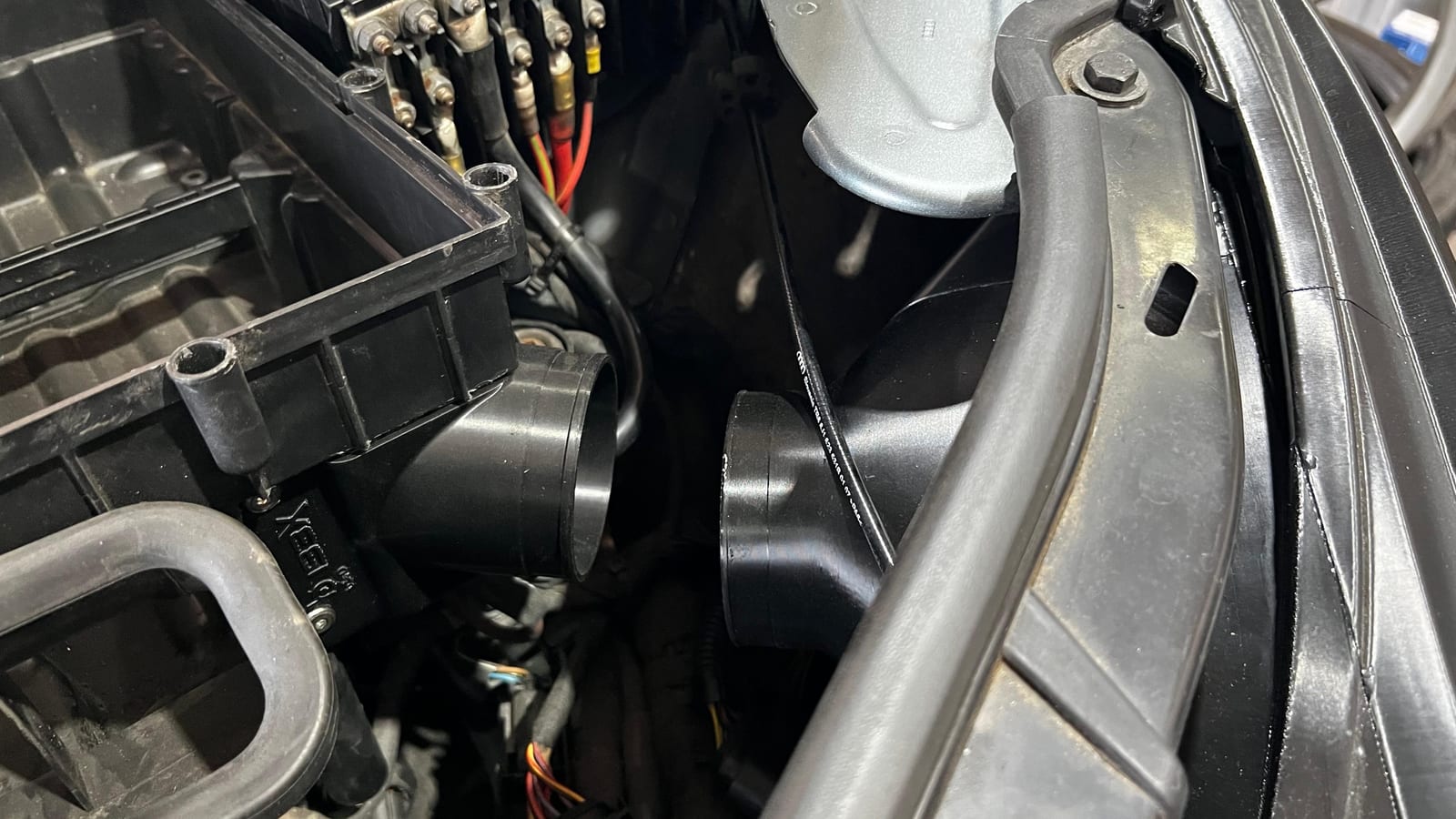

Inlet fitted in the engine bay next to the headlight intake route

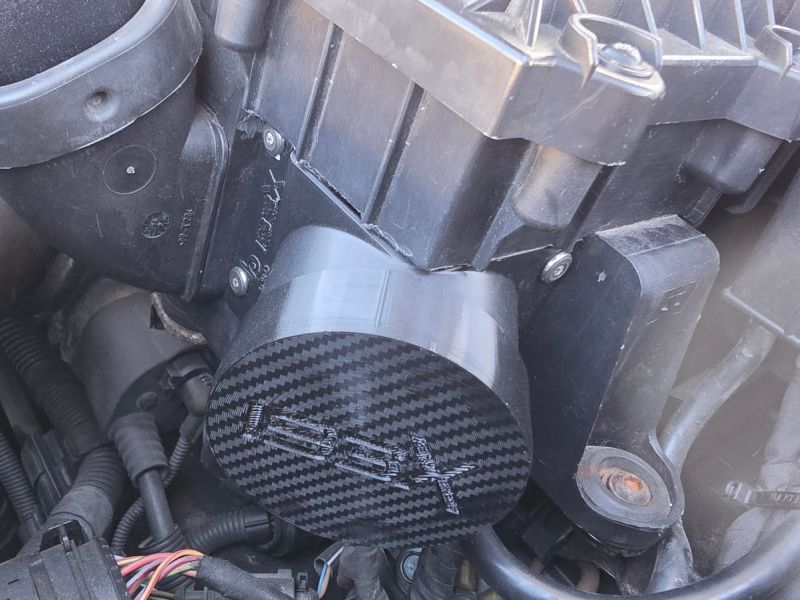

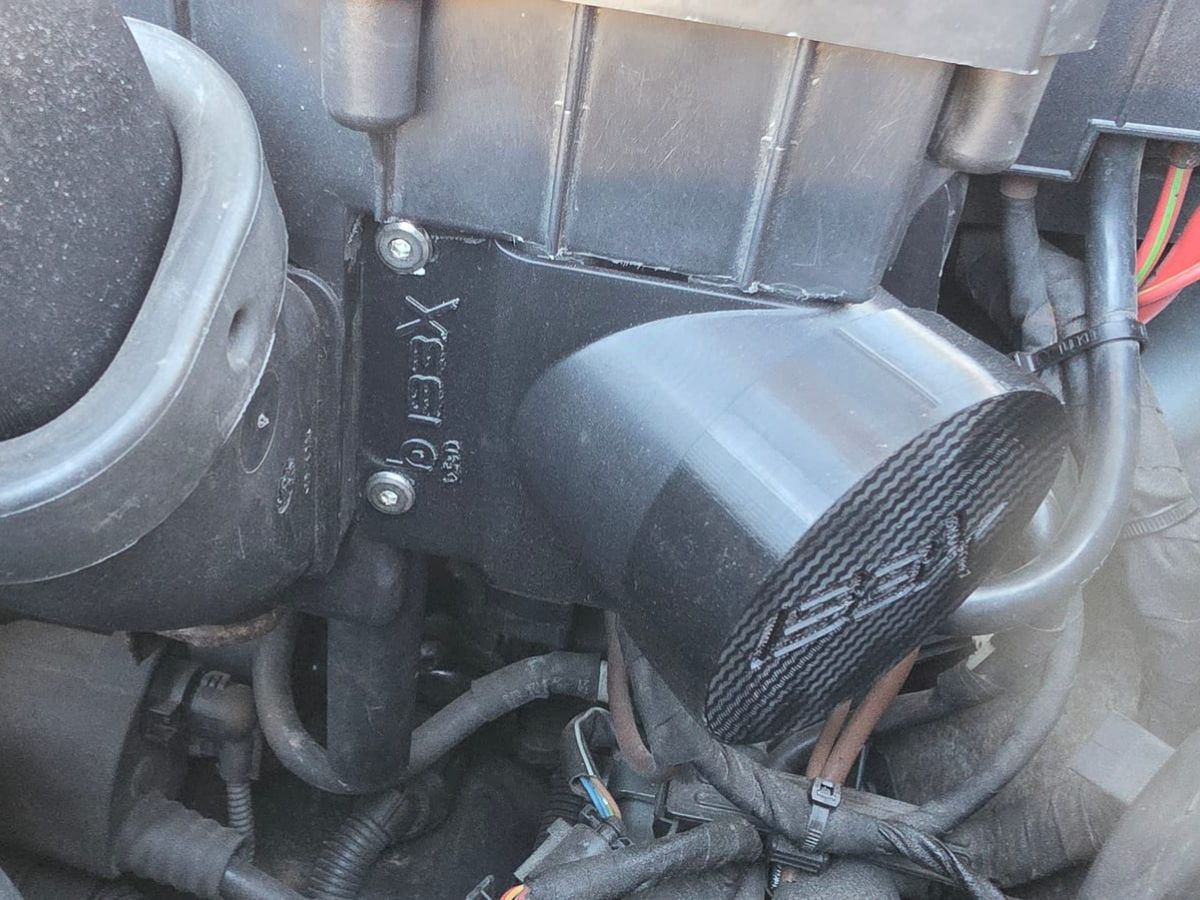

TPU cap on the airbox inlet, second angle

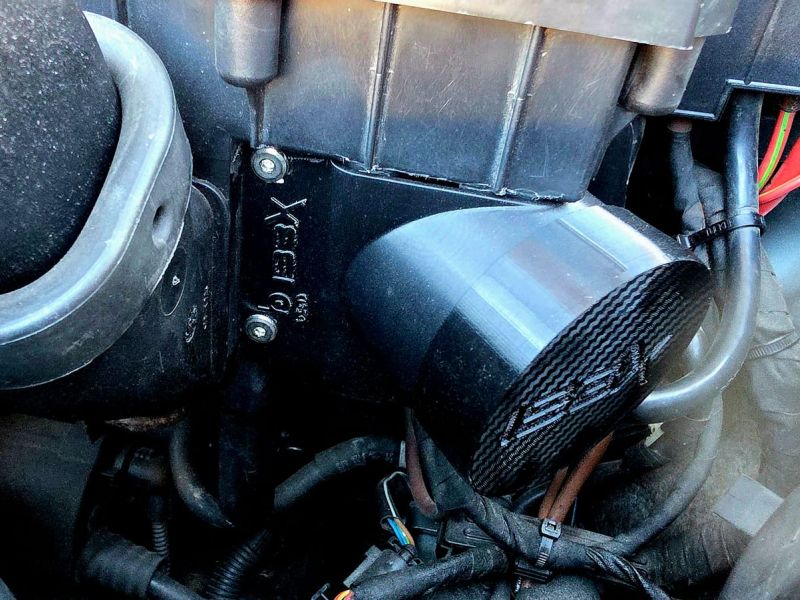

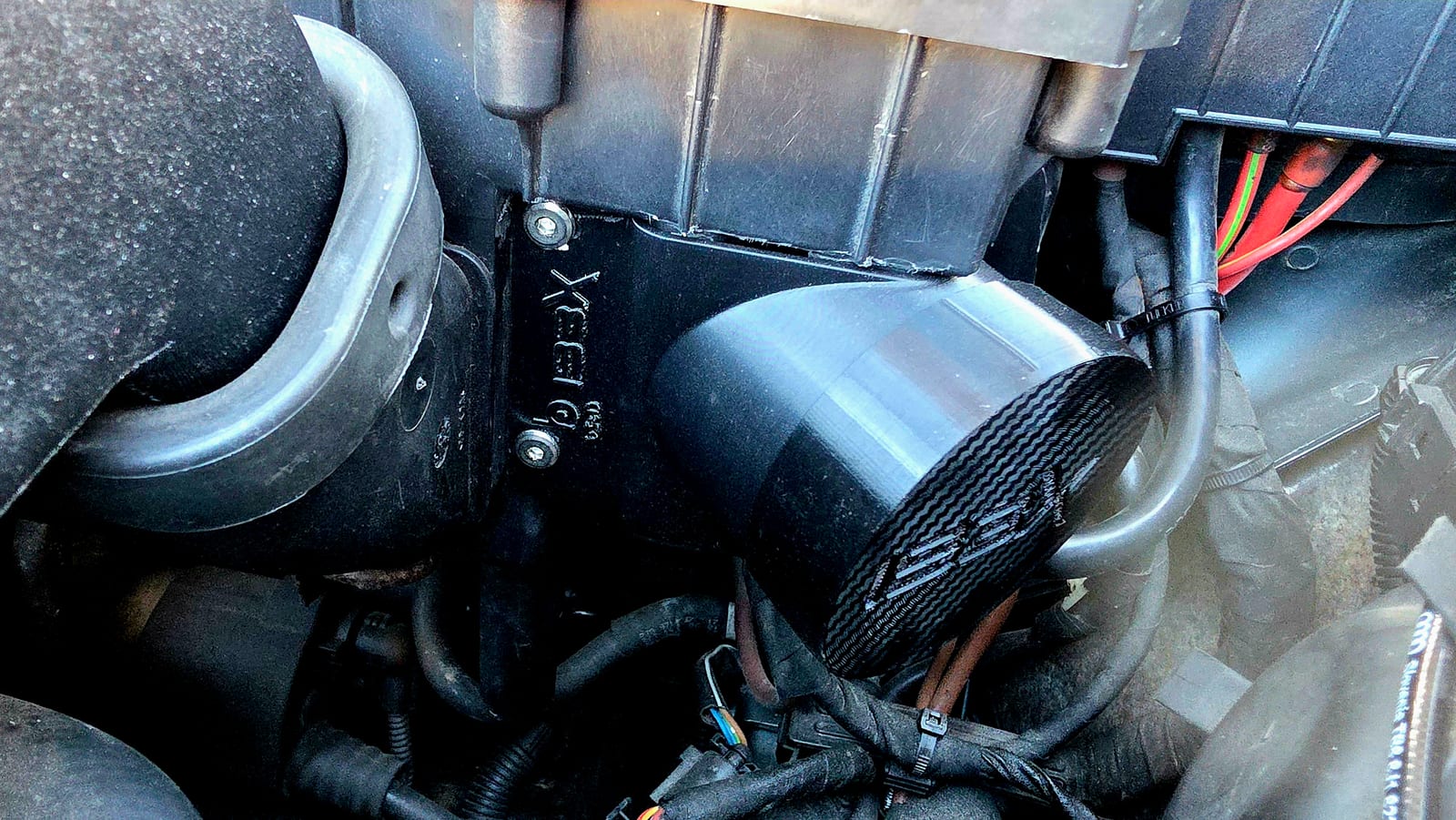

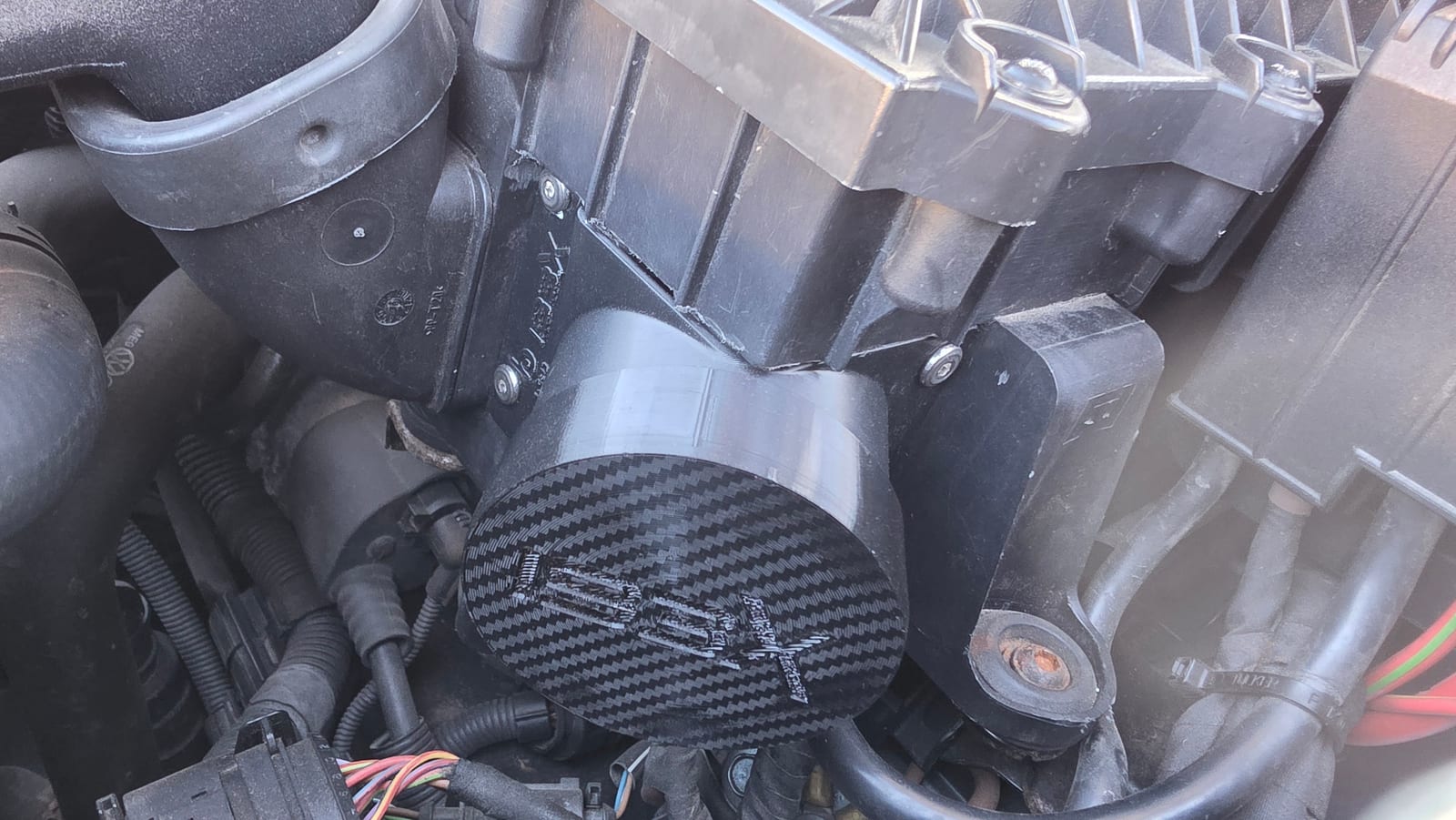

Airbox inlet and cap from the side

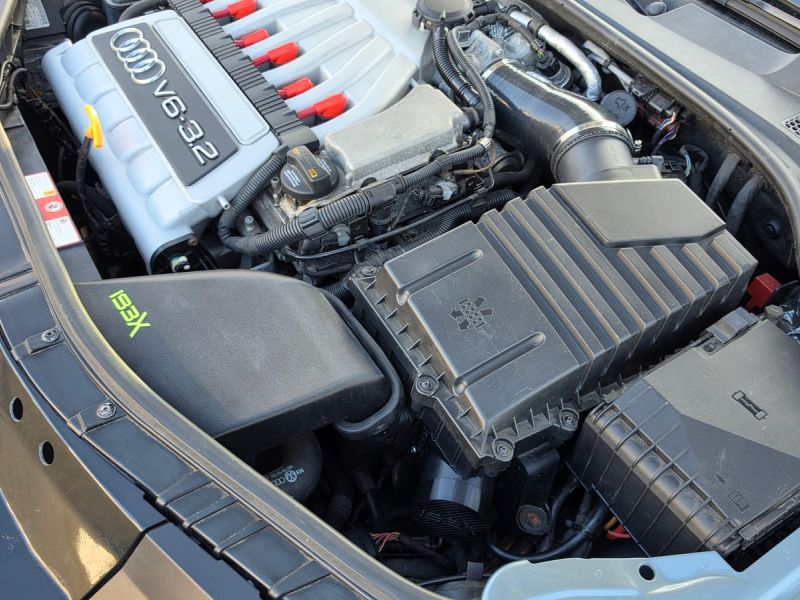

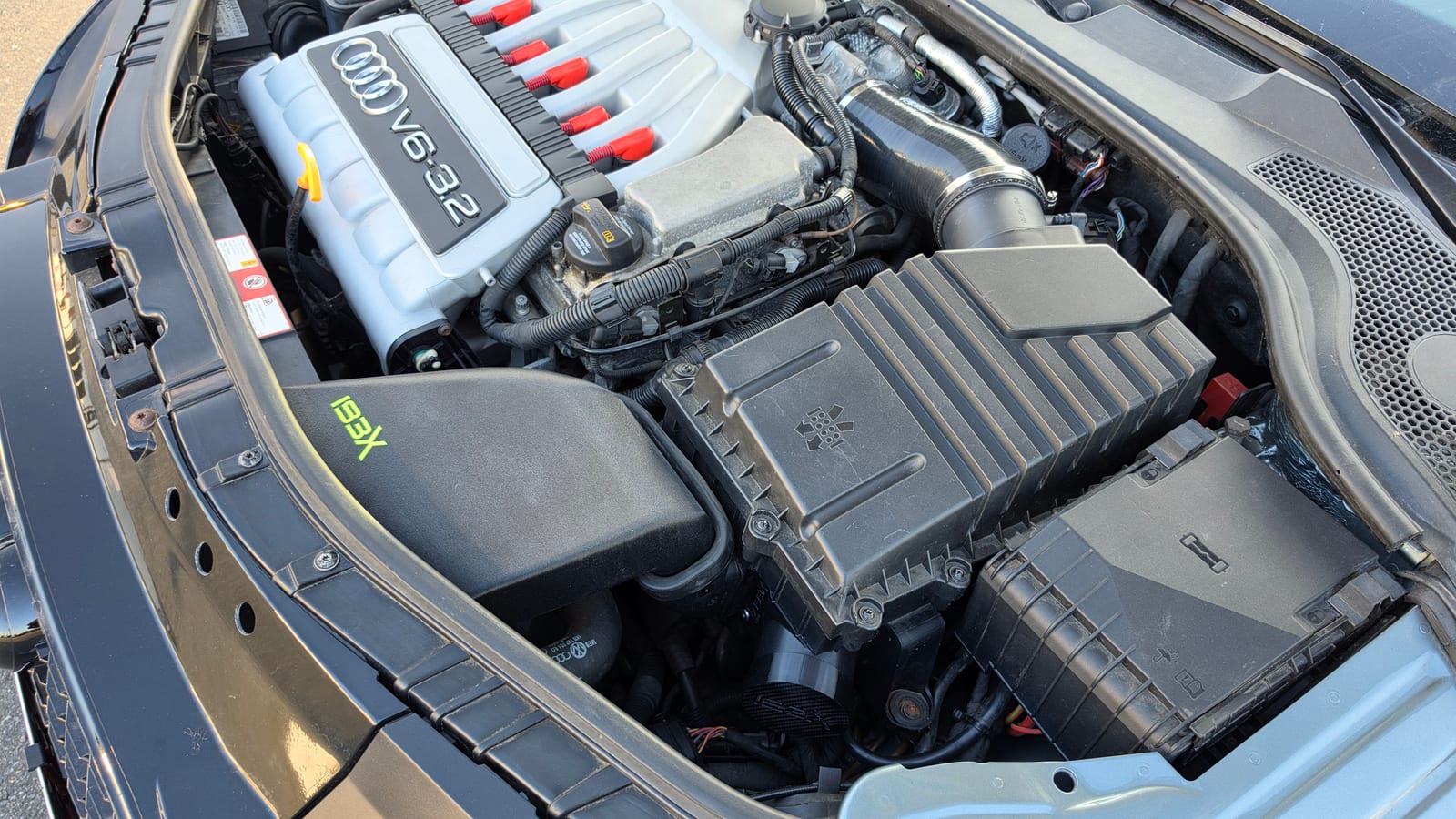

Engine bay of the TT with the airbox inlet in place

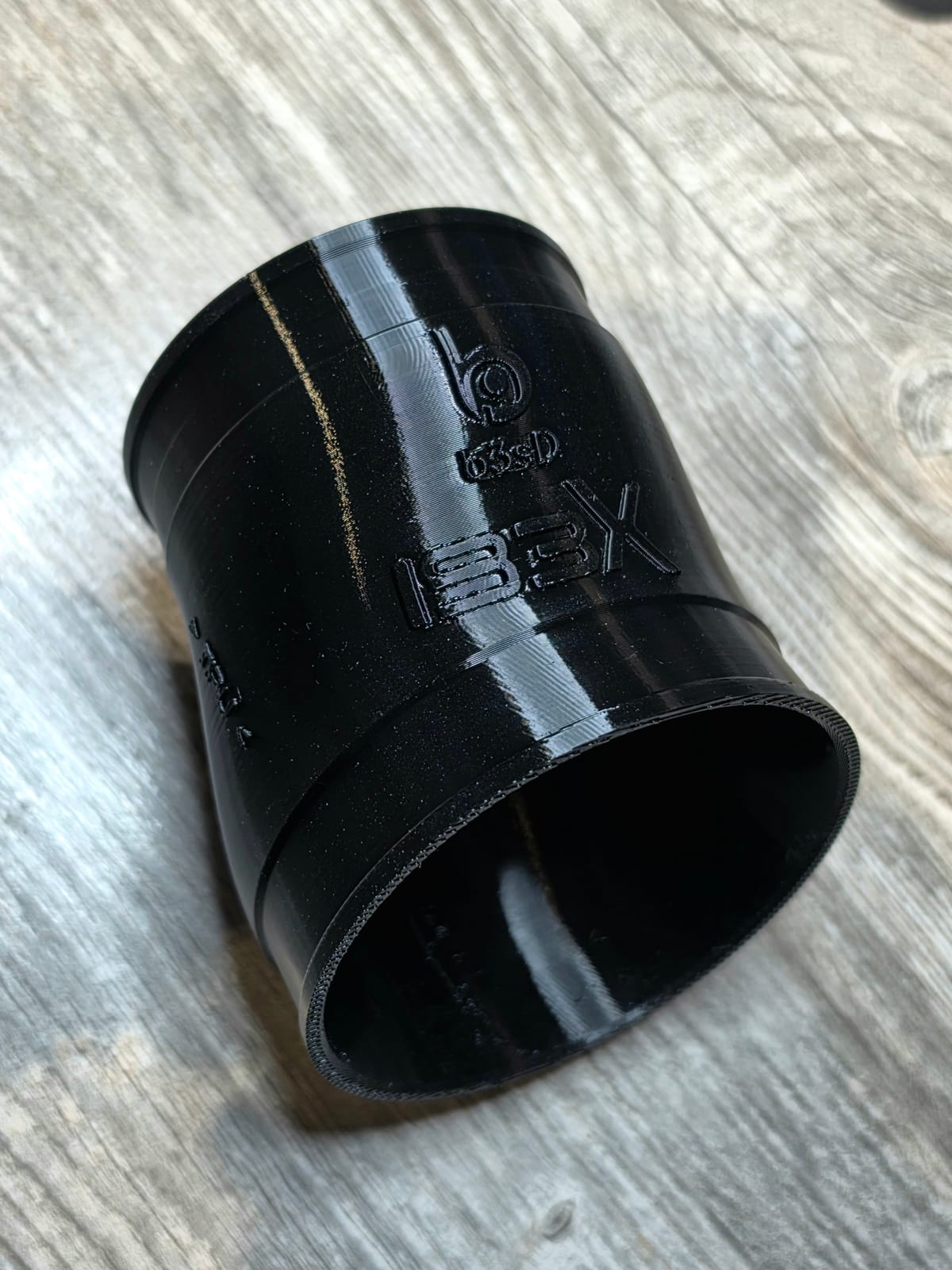

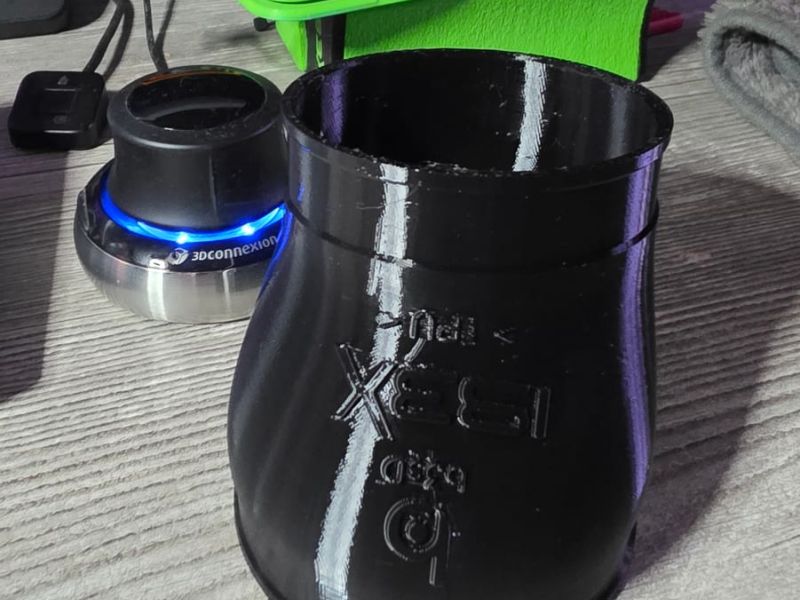

The printed connecting hose between headlight intake and airbox

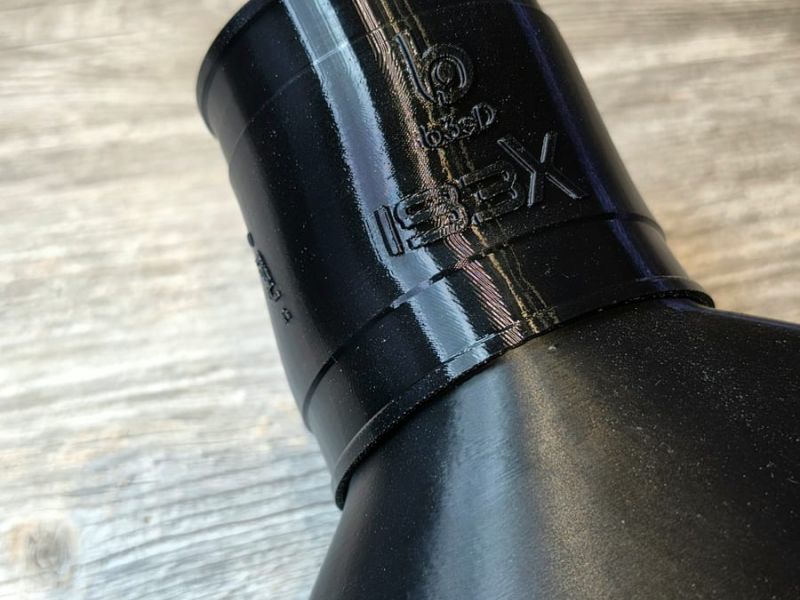

Connecting hose with the IBEX × b3sD marking

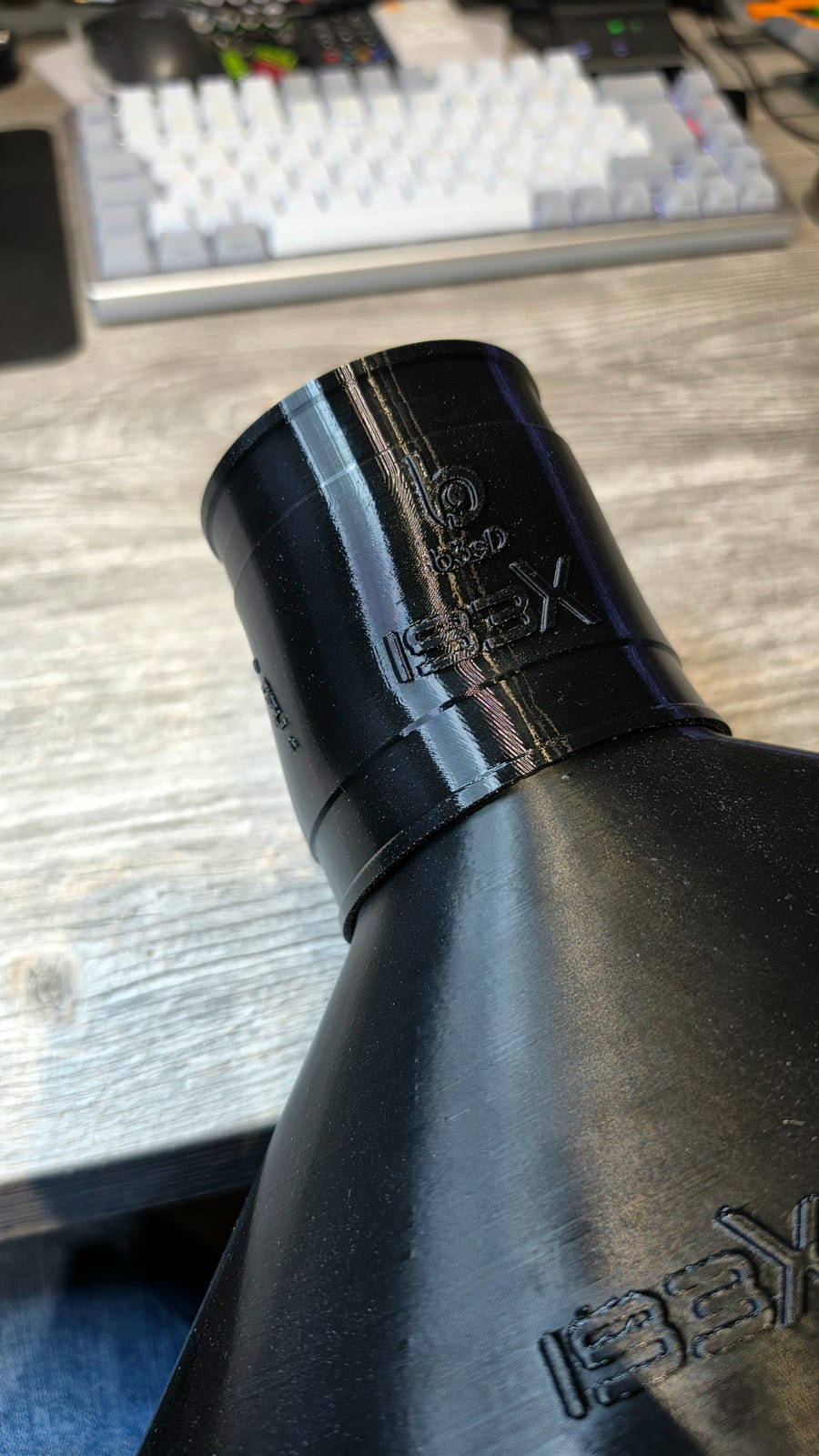

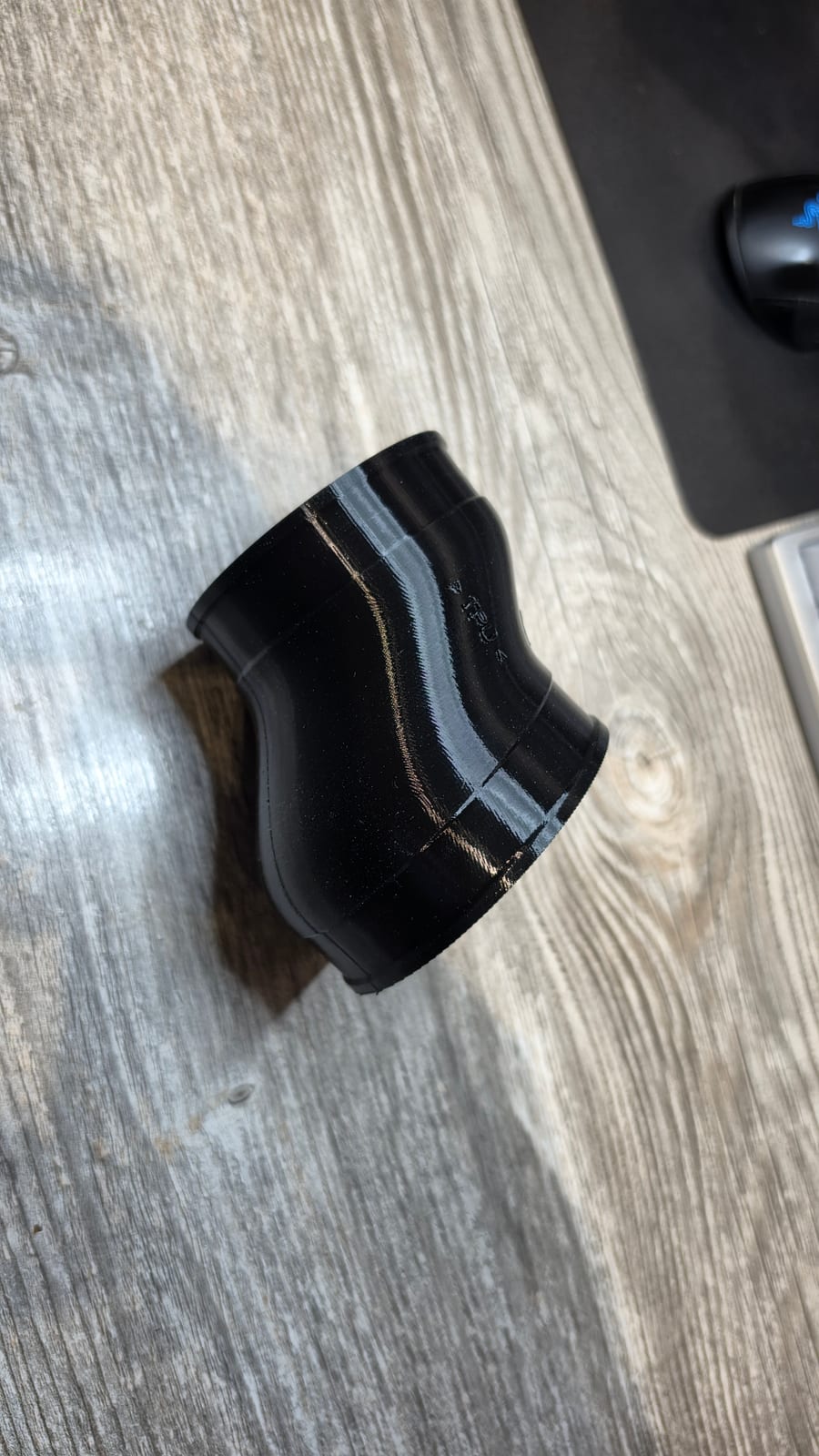

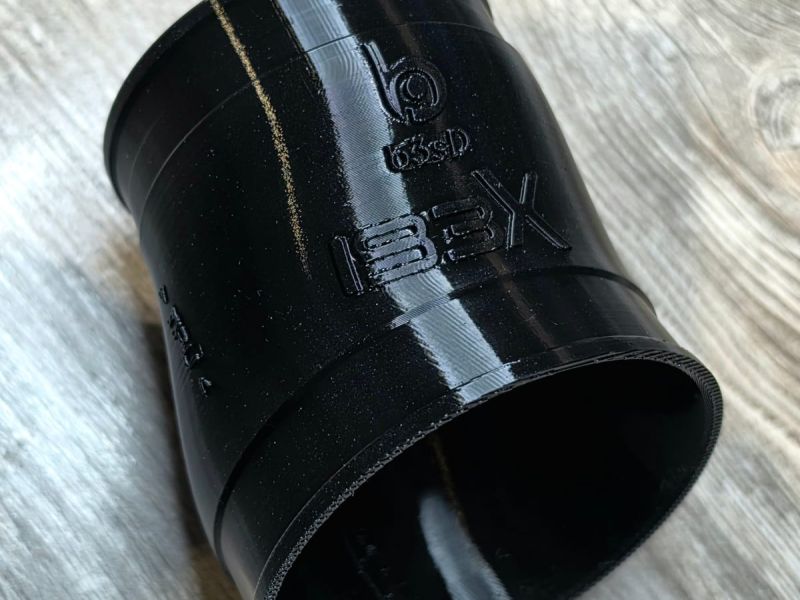

Connecting hose, side view

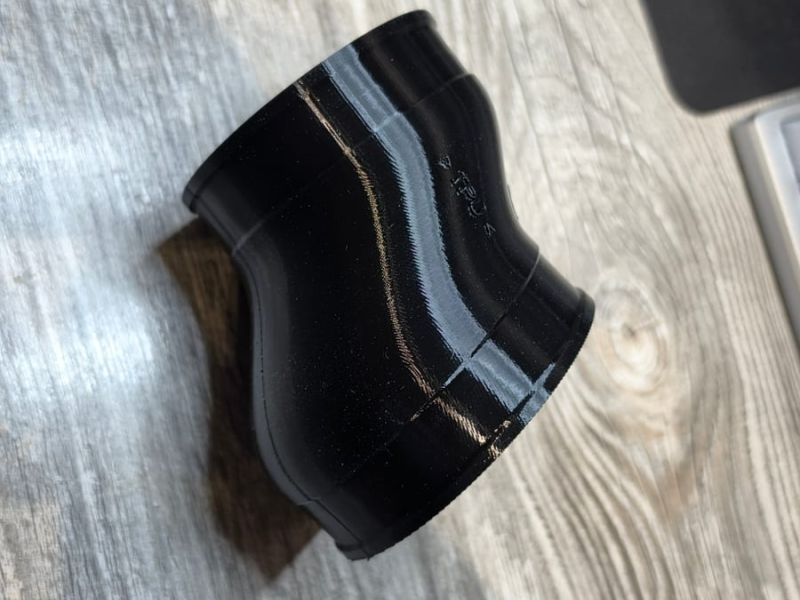

Connecting hose, view into the opening

The scan

Scanning the space between the headlight intake and the airbox. The scan became the reference for the hose, so it follows the route through the engine bay exactly.
