Audi TT 8J Front Grille Air Intake

Printer

Bambu Lab H2D
Material

Extrudr DuraPro ASA
black, neon green and metallic
Scan & Modelling

How it came about

The opening above the grille of the TT 8J is just a plain black slot. This insert fills it with a honeycomb mesh that picks up the TT-RS grille below and carries the IBEX logo.

A quick orange test print checked the fit first. The finished part exists in black and in lime; the lime one matches the brake calipers.

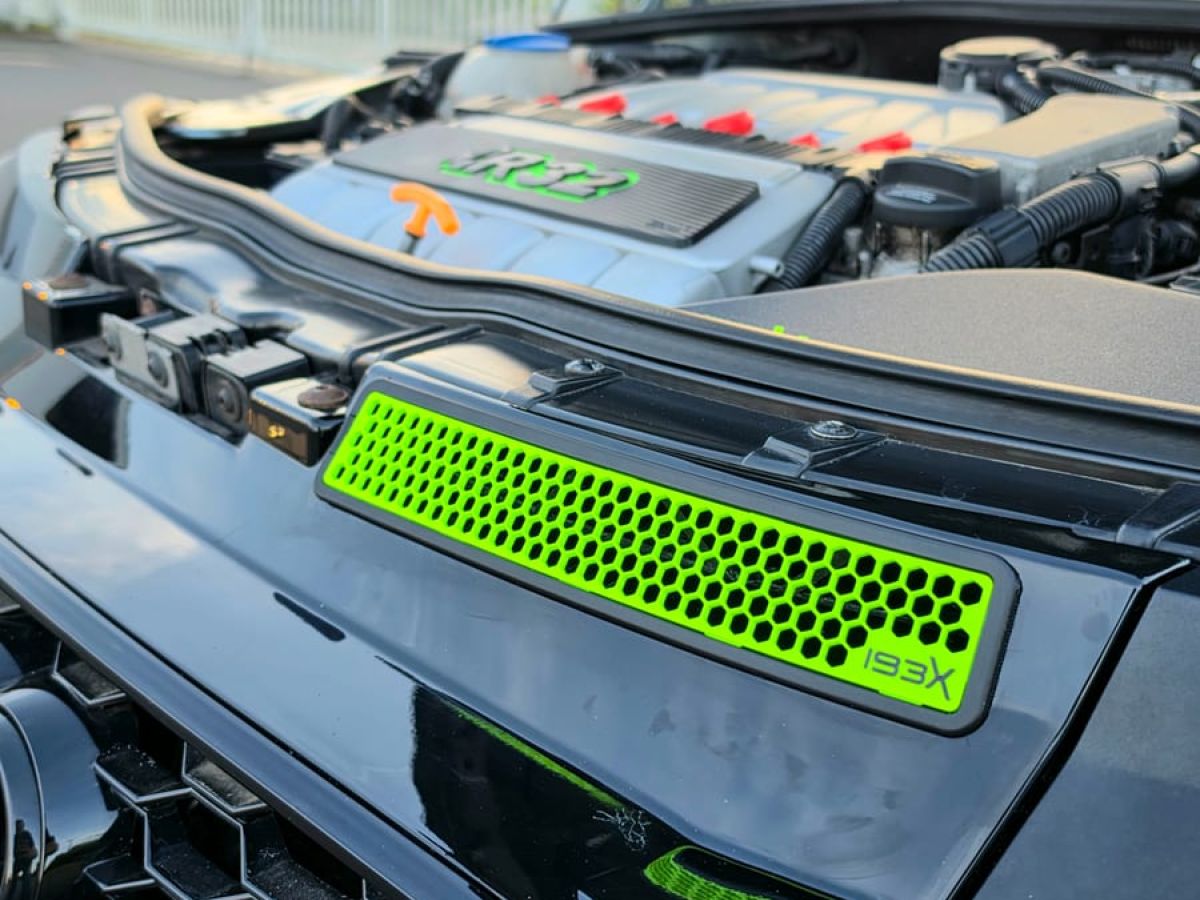

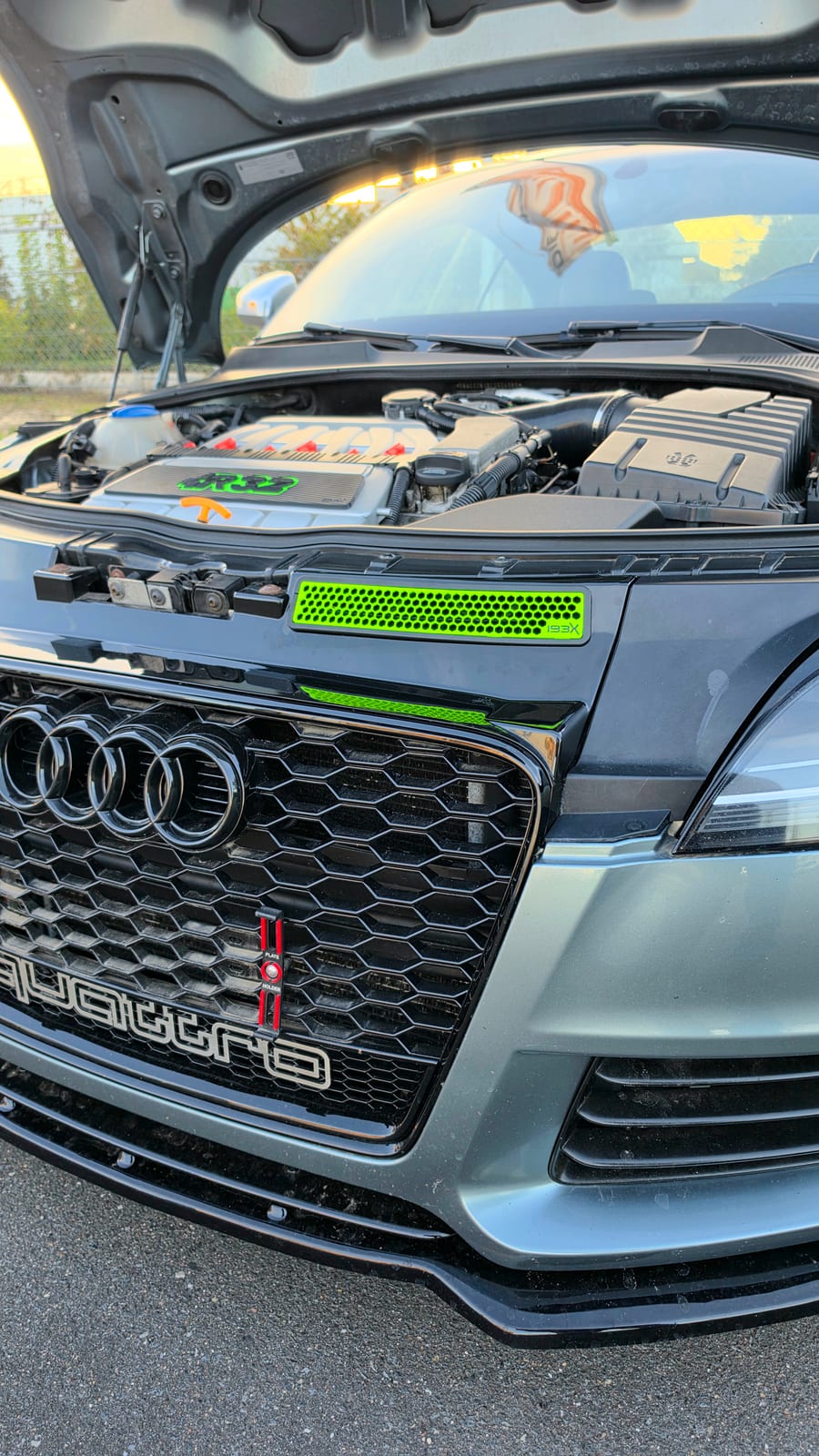

Lime 3D-printed honeycomb air intake fitted above the grille of the Audi TT

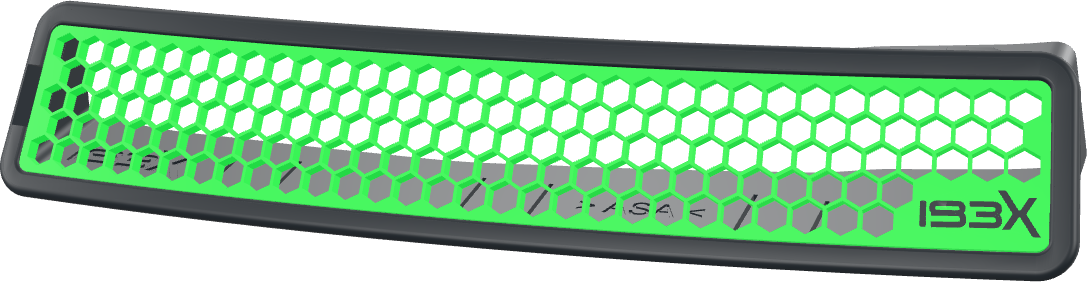

View the part in 3D

Click to view, drag to turn, scroll to zoom. Explode lifts out the flexible honeycomb insert, Assemble puts it back.

More images

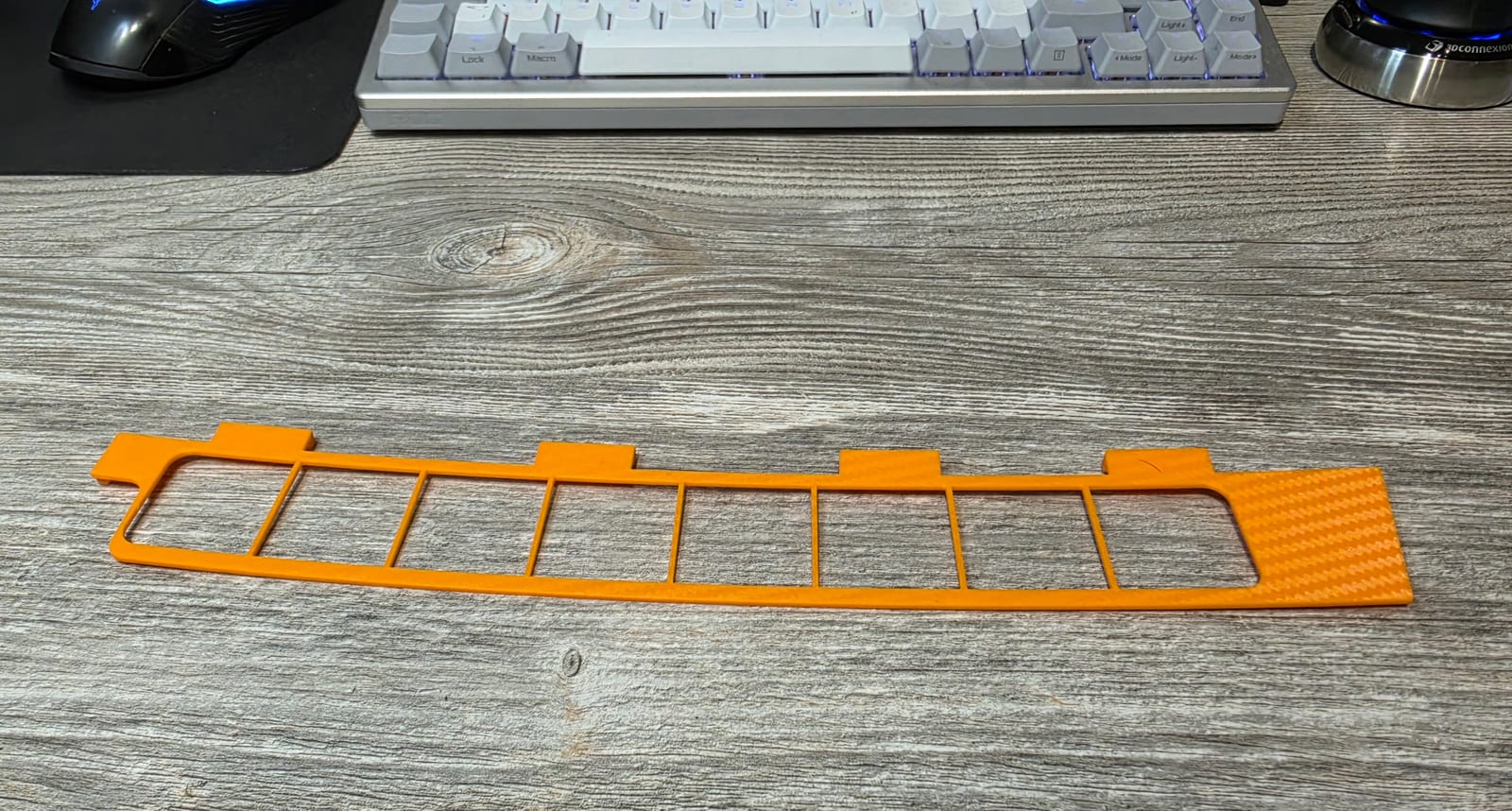

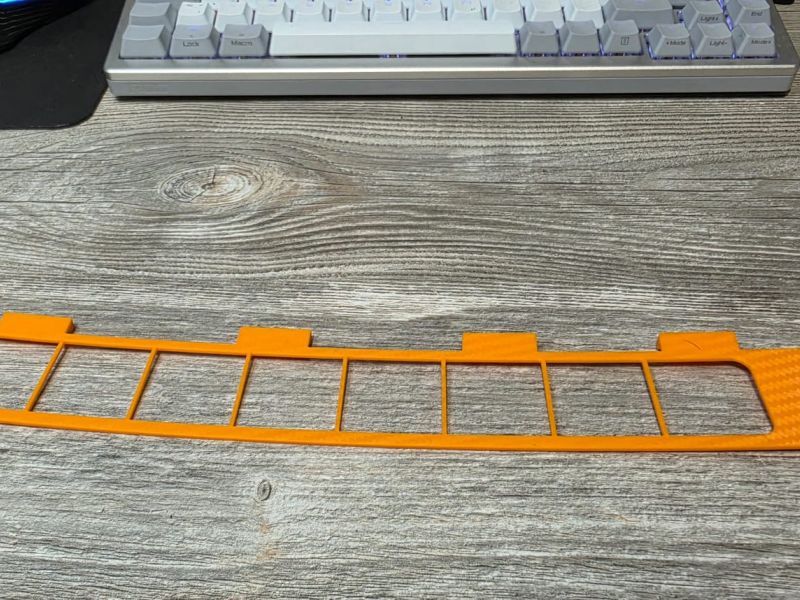

Orange test print of the grille insert frame

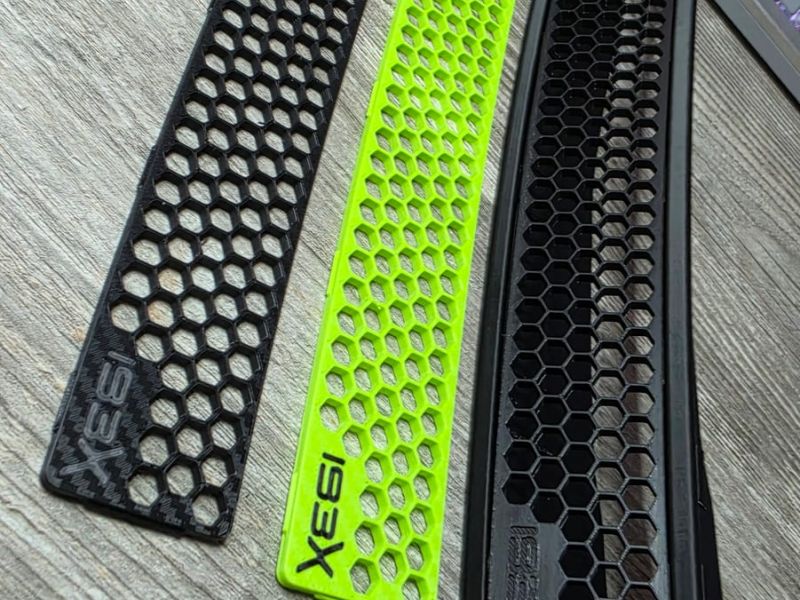

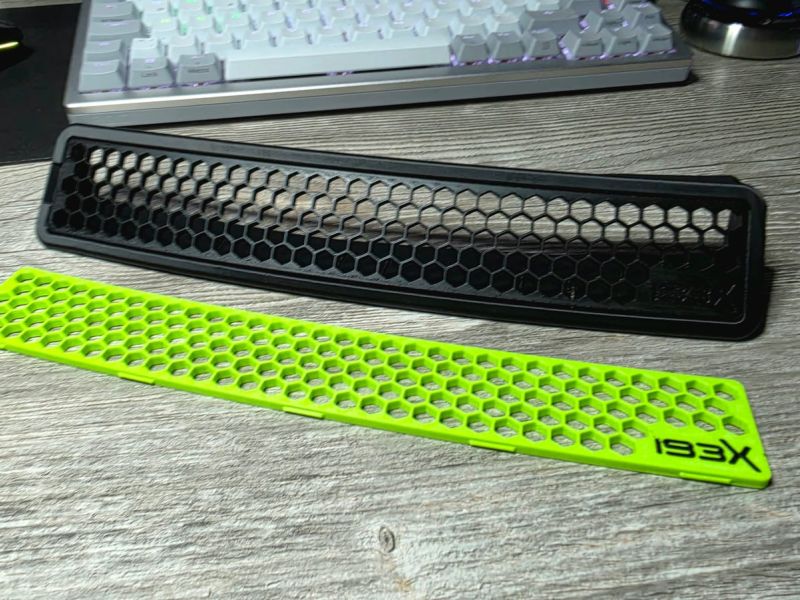

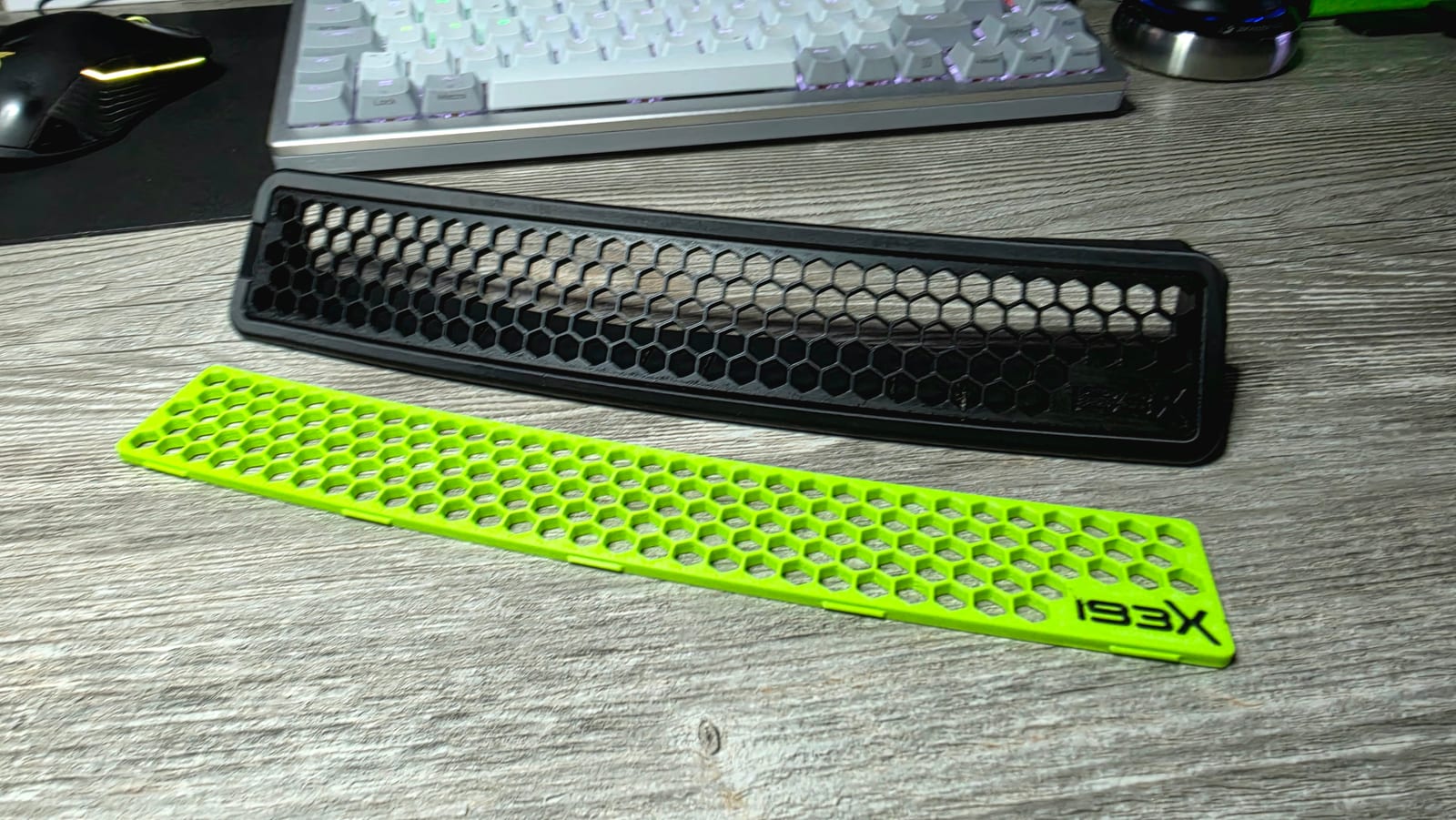

Black and lime honeycomb inserts side by side

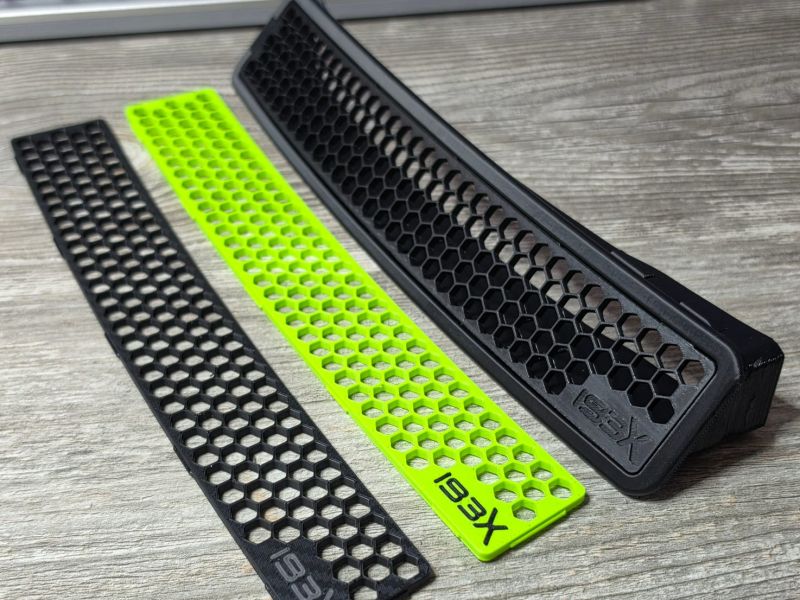

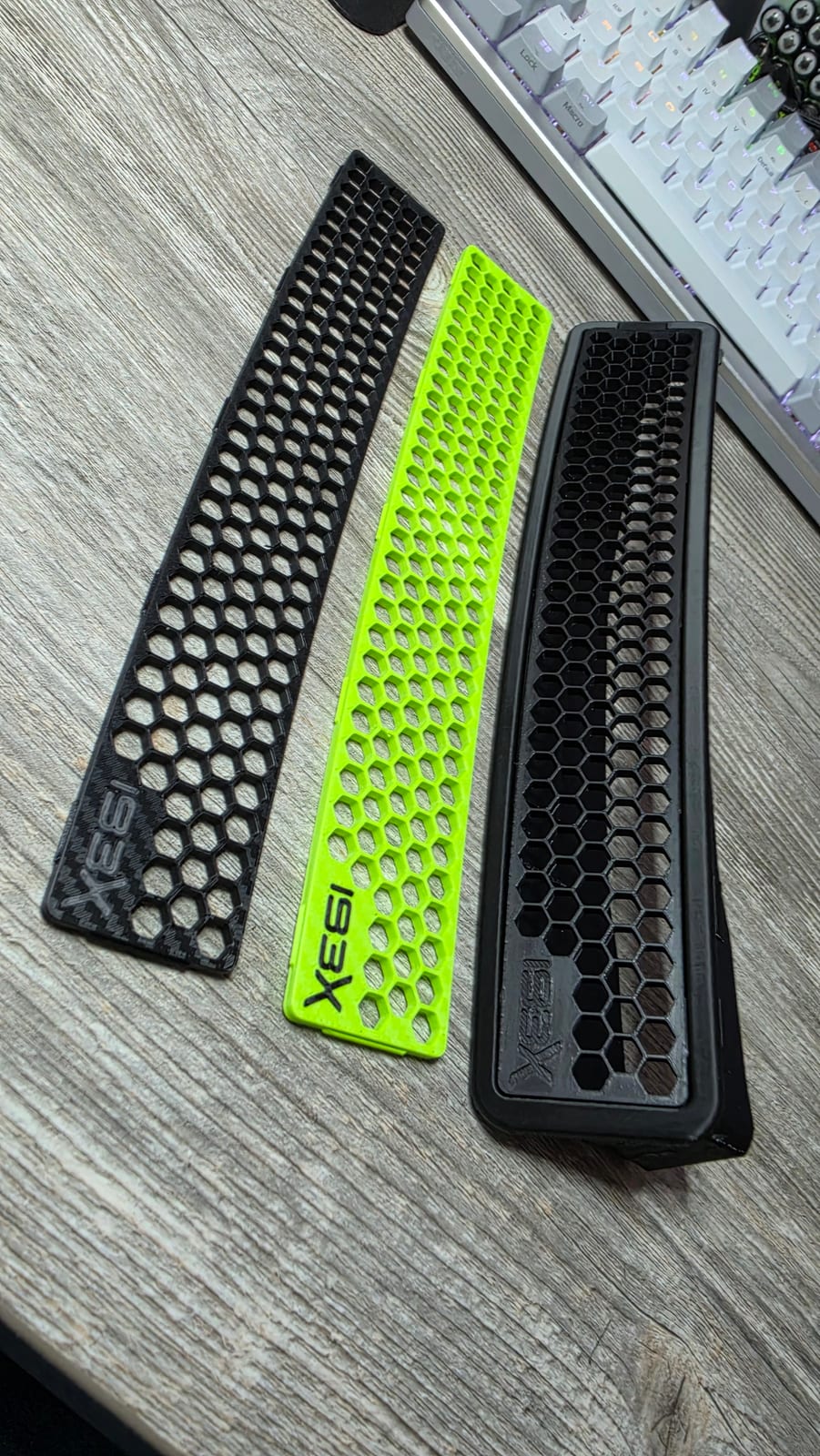

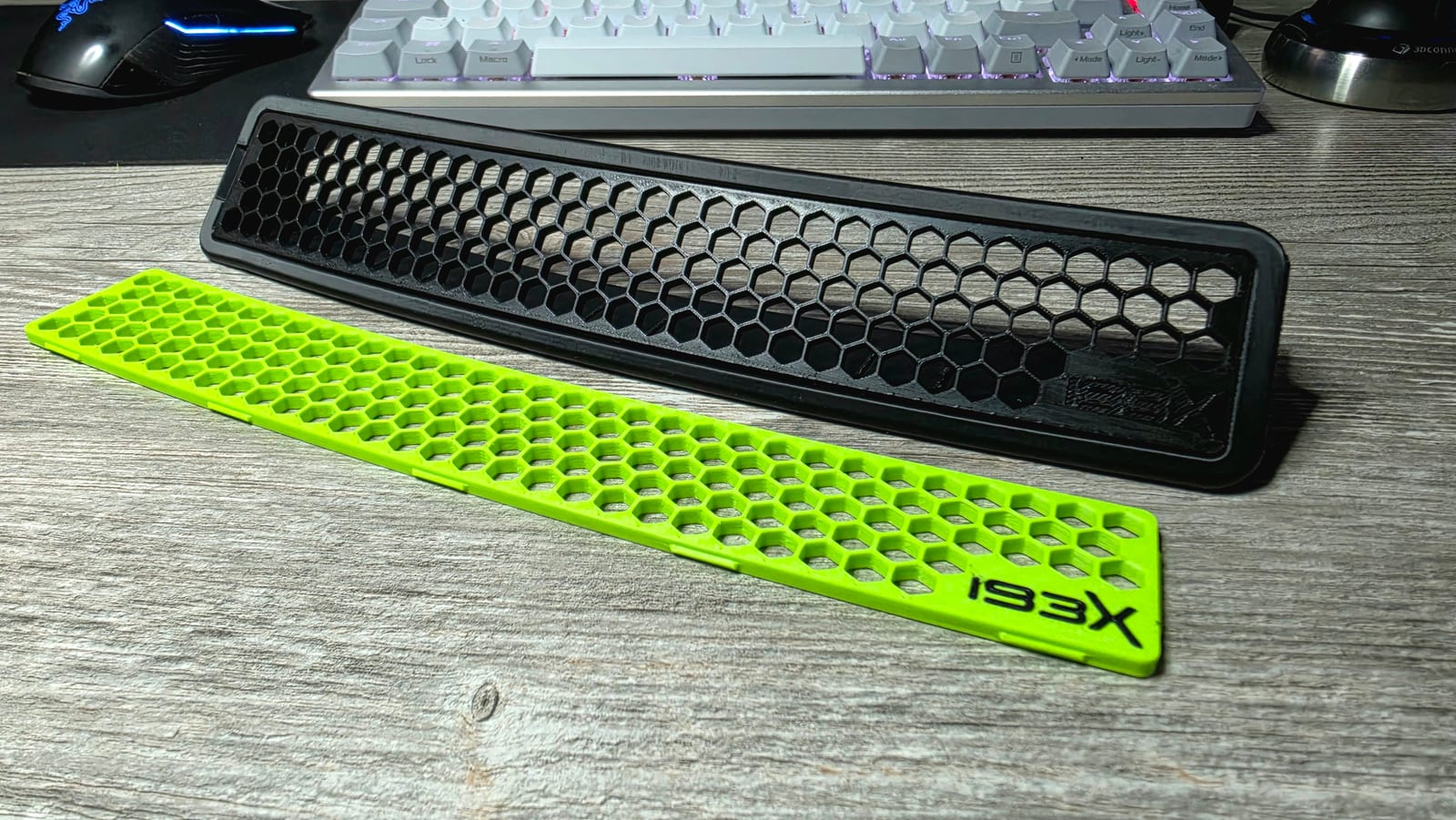

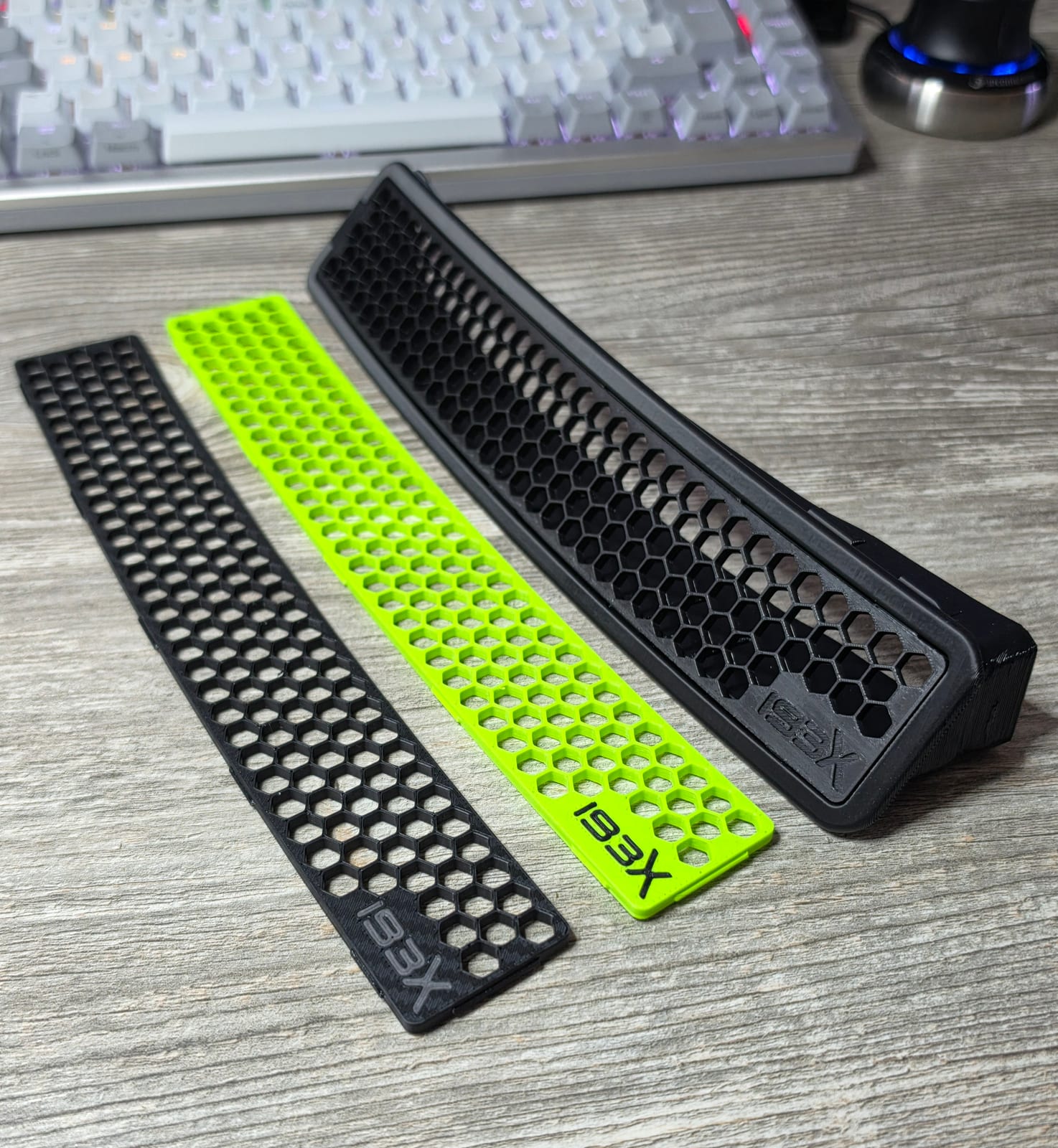

Three printed parts: black mesh, lime mesh and the black frame

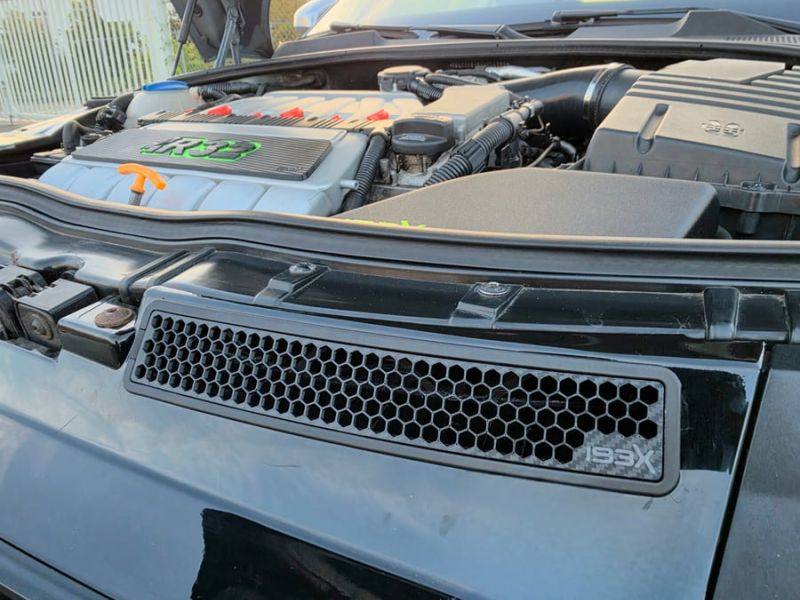

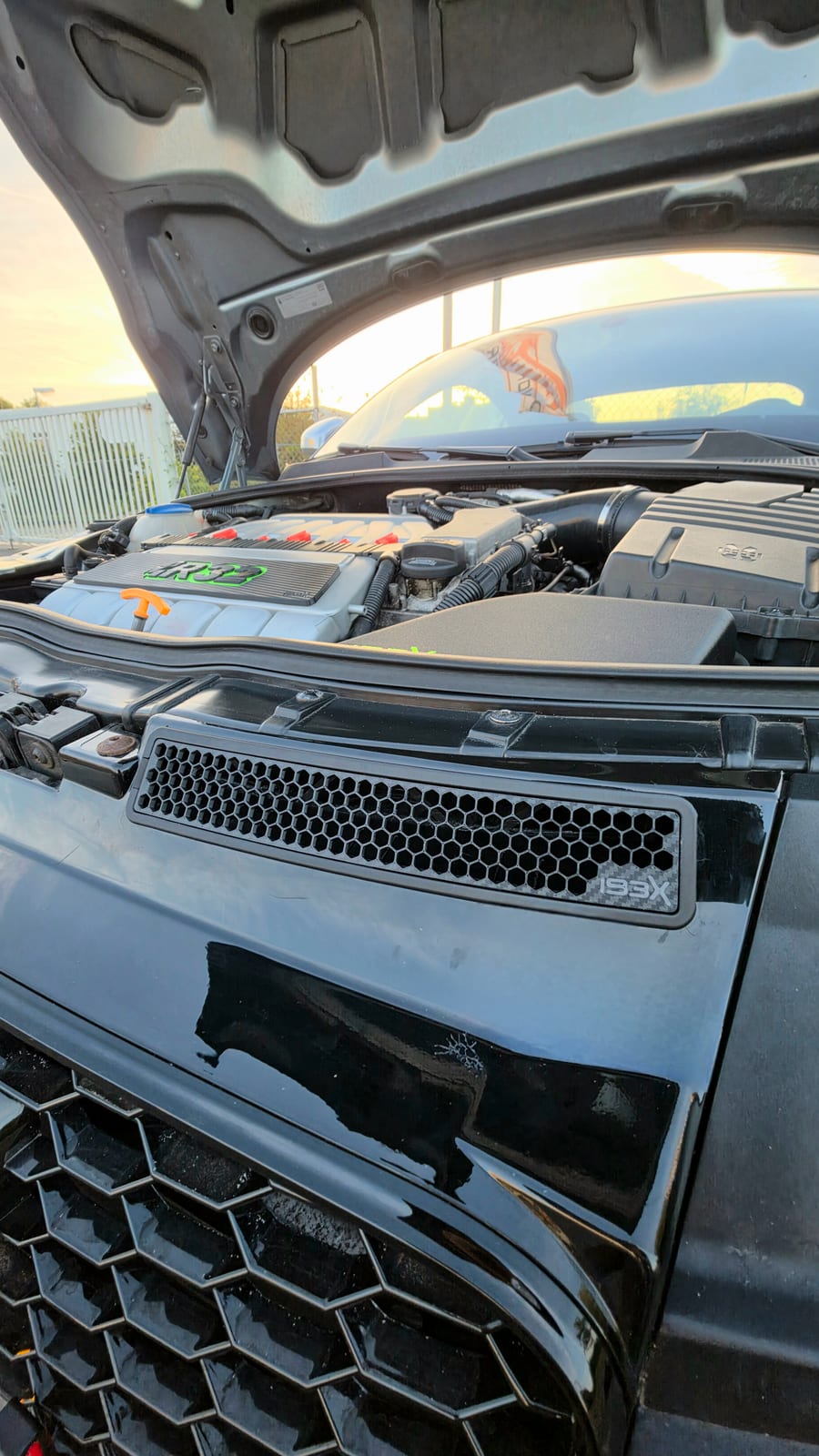

Black version of the insert fitted above the grille

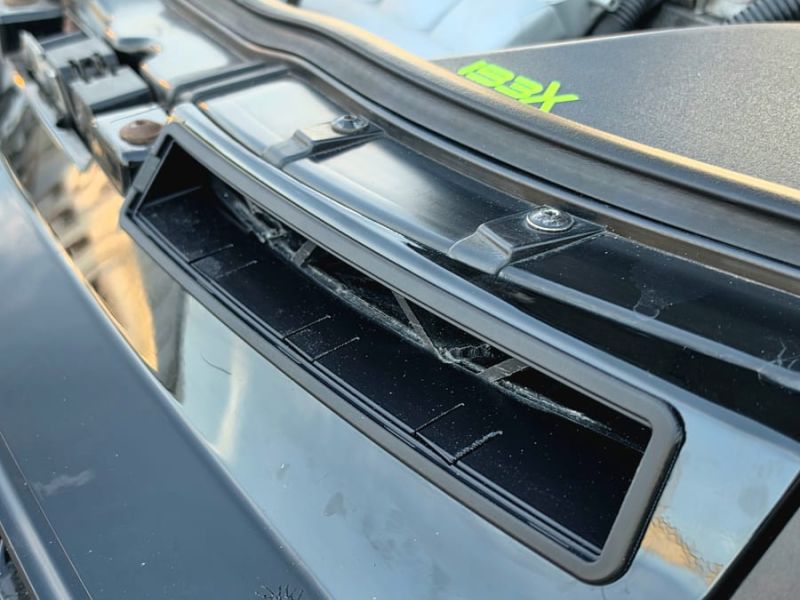

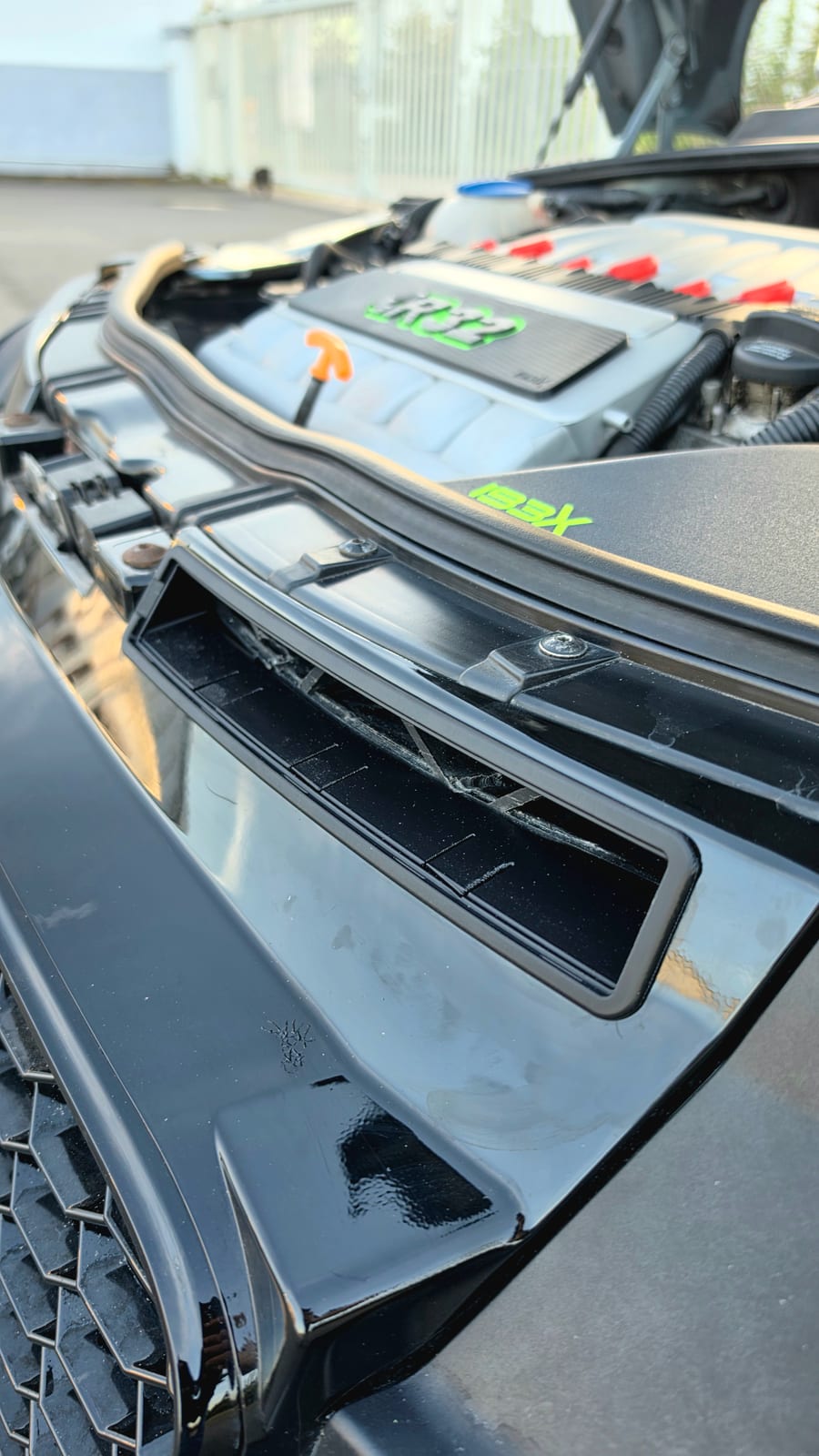

The plain intake slot above the grille before the insert

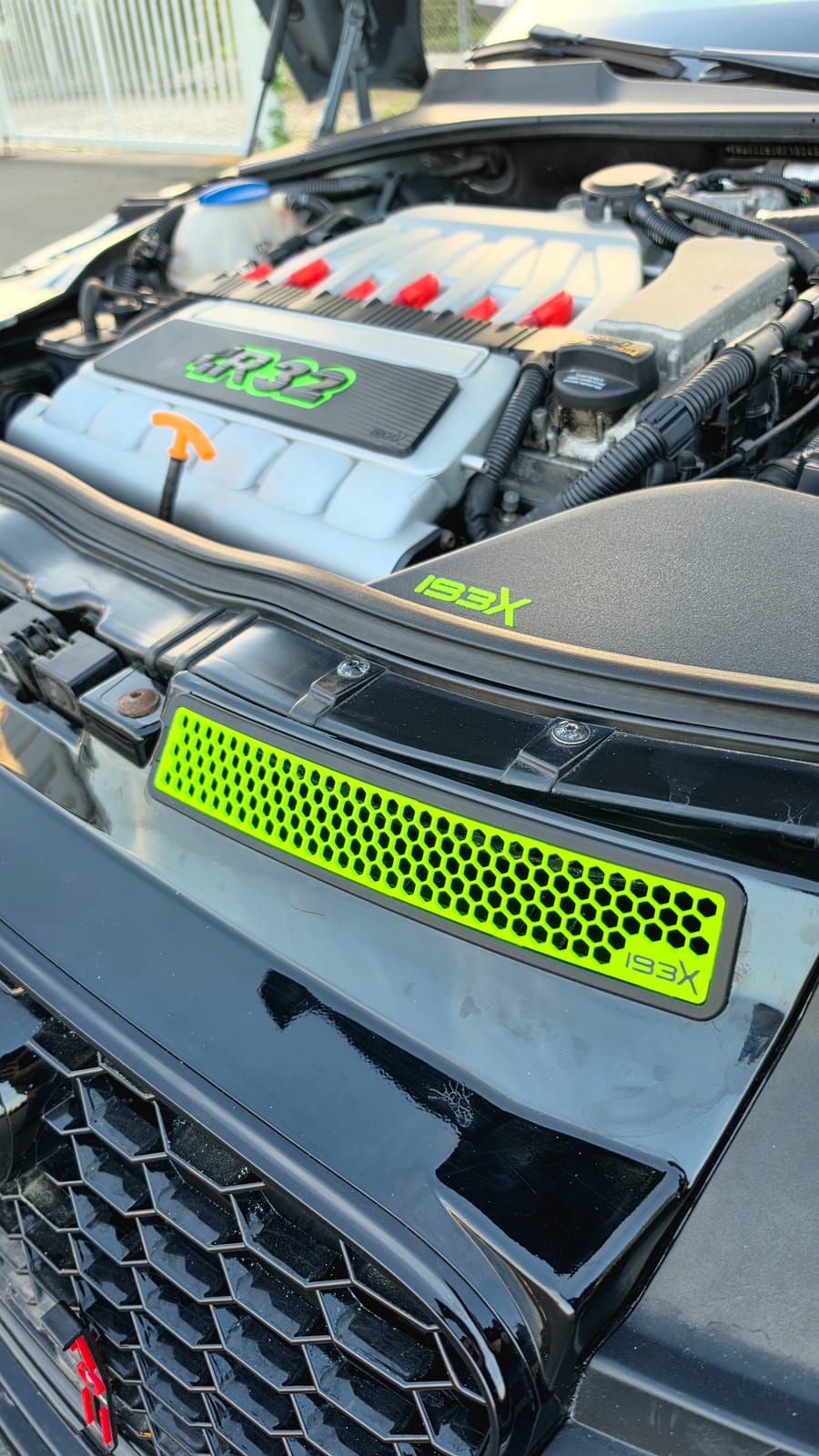

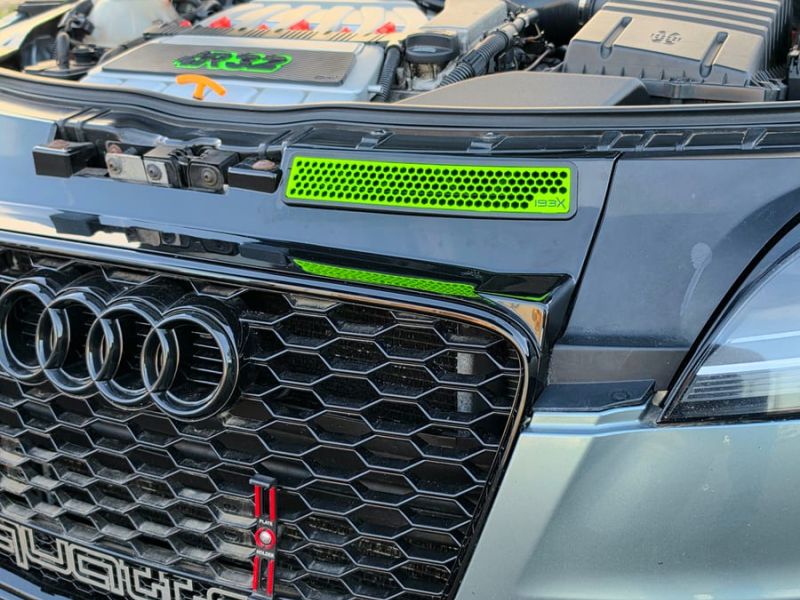

Lime insert above the TT-RS honeycomb grille

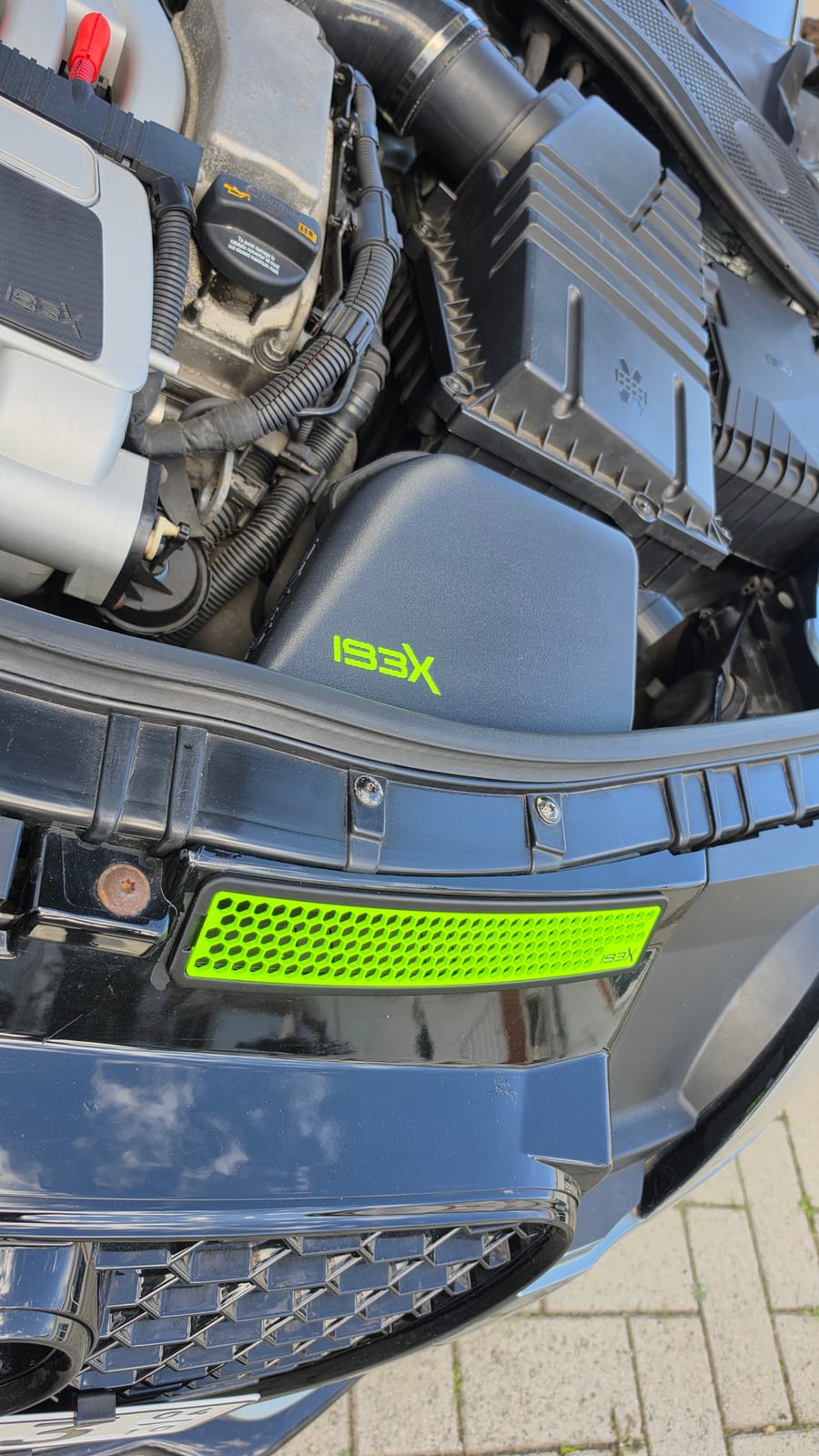

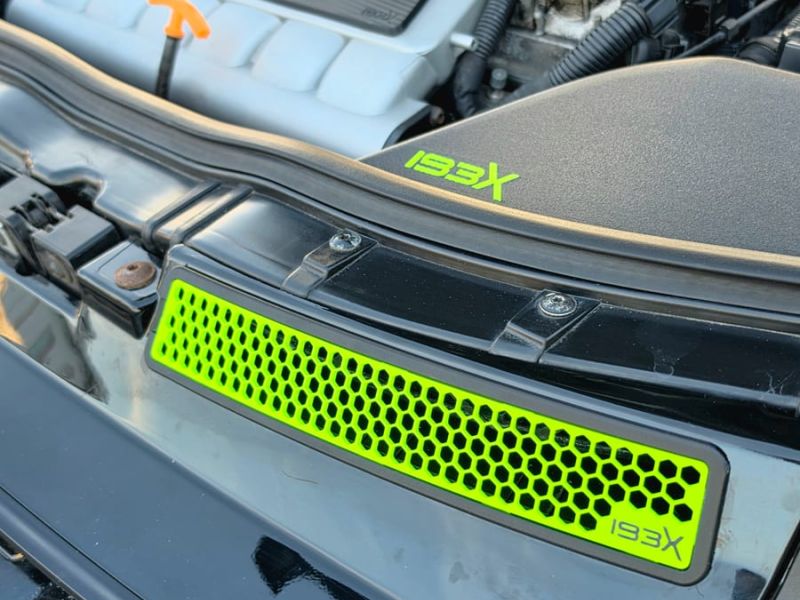

Lime insert with the engine bay behind it

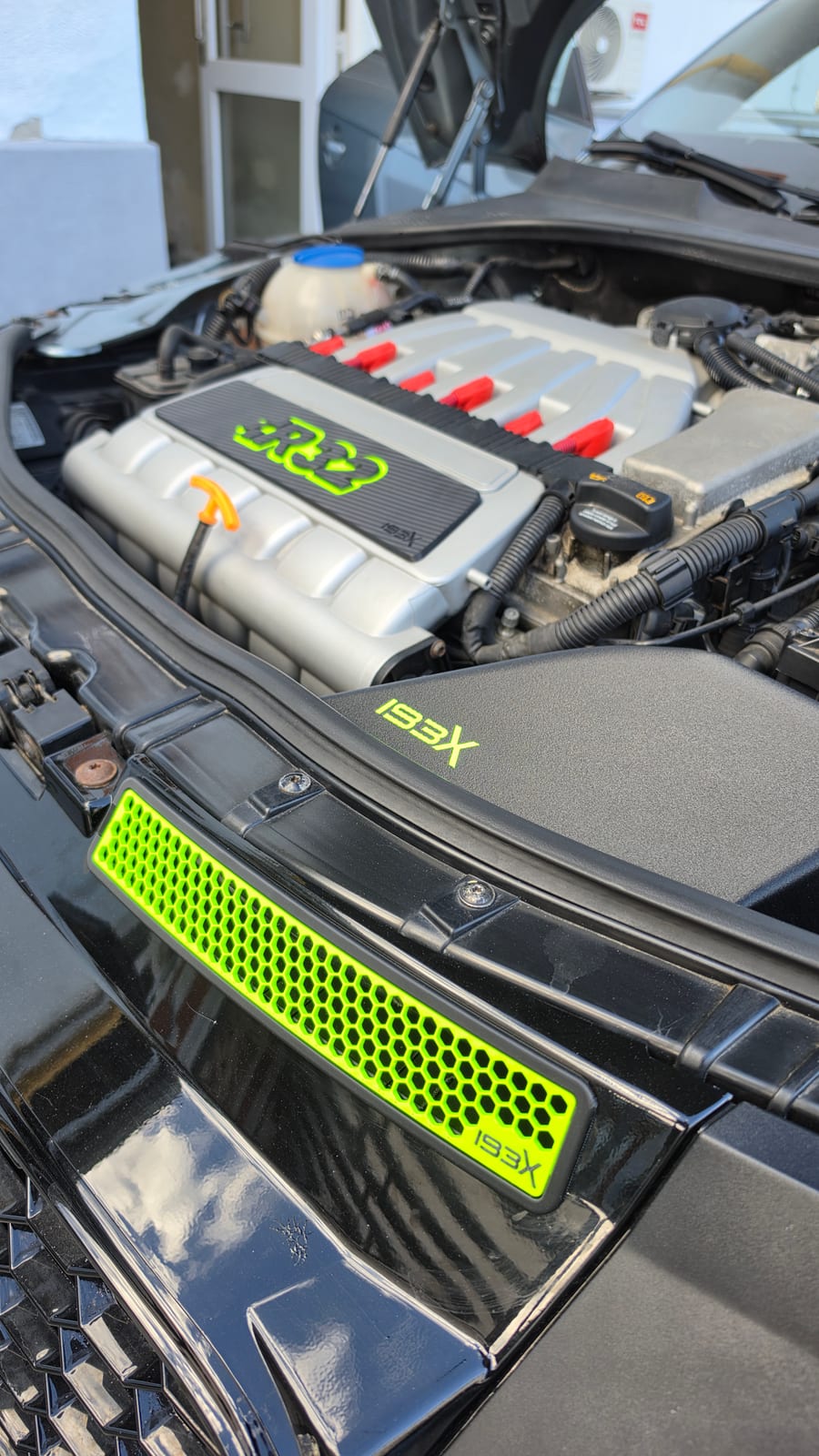

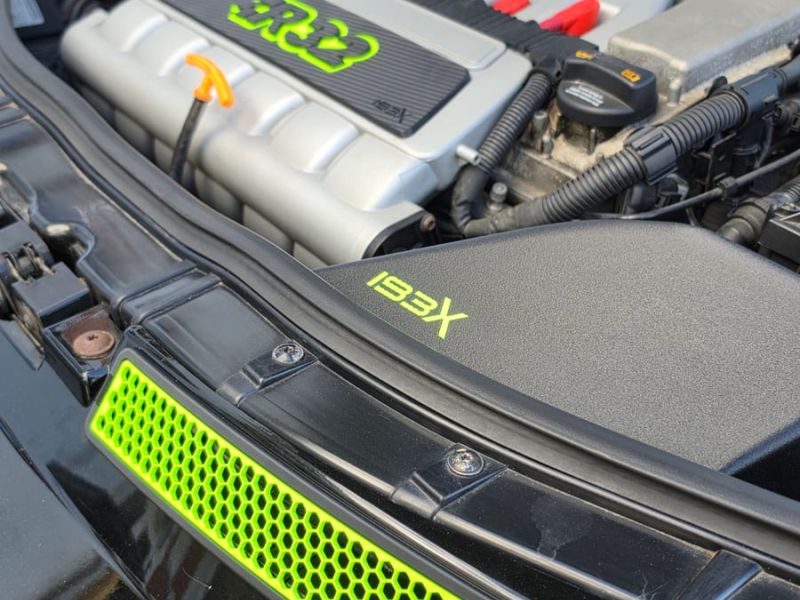

Lime insert and R32 engine cover badge in the engine bay

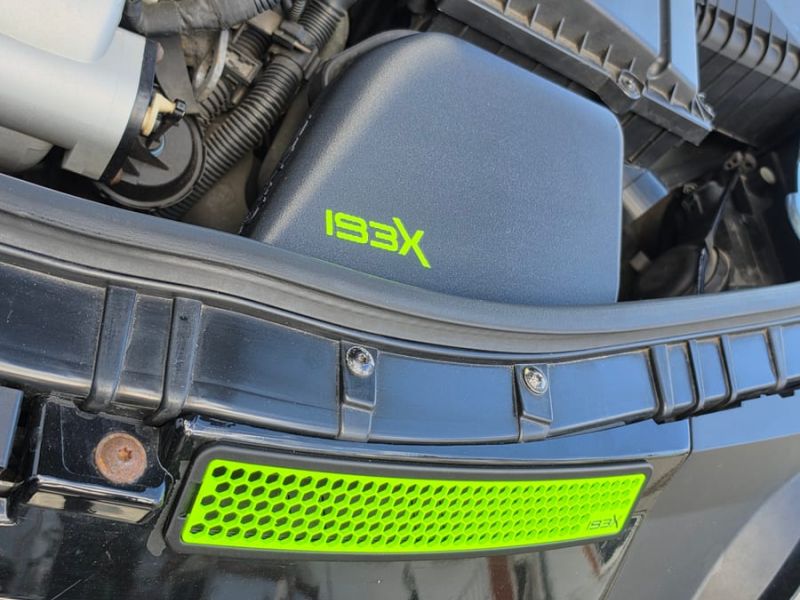

Lime insert seen from above with the airbox cover

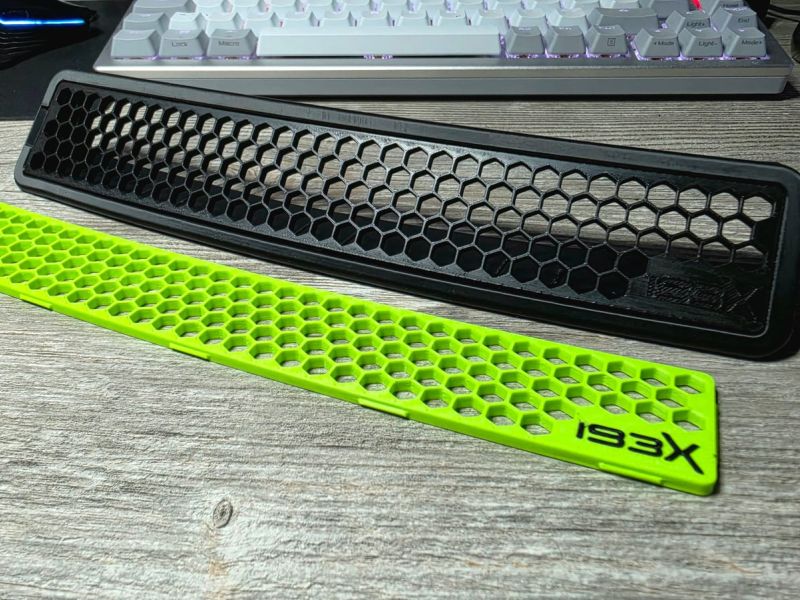

Close-up of the black and lime honeycomb mesh

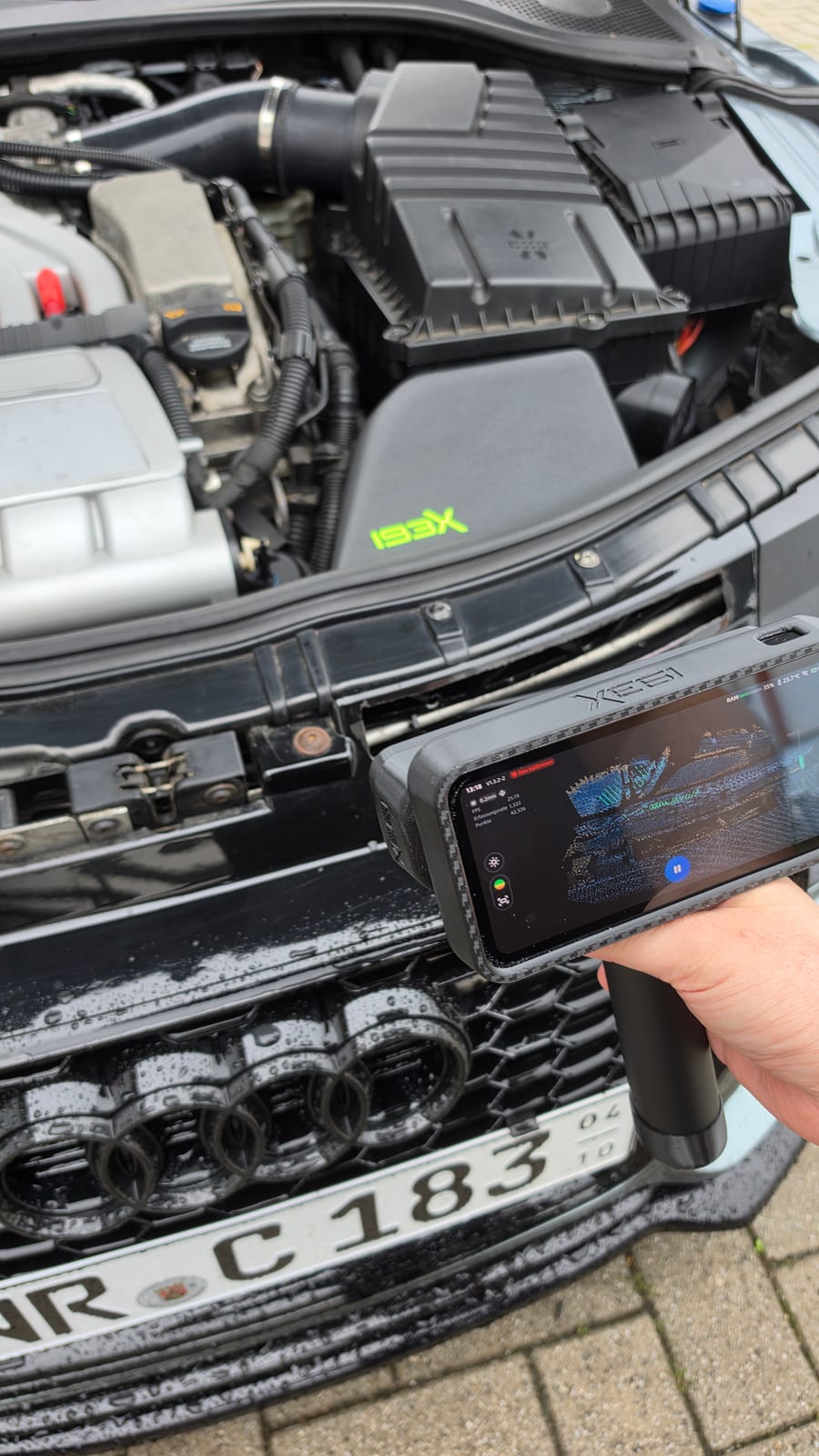

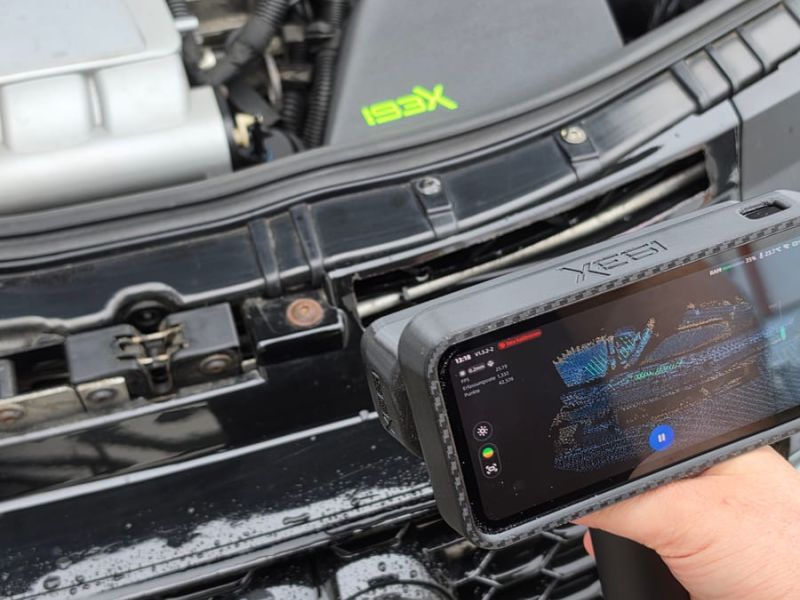

Test fitting with the phone app reading live data at the grille

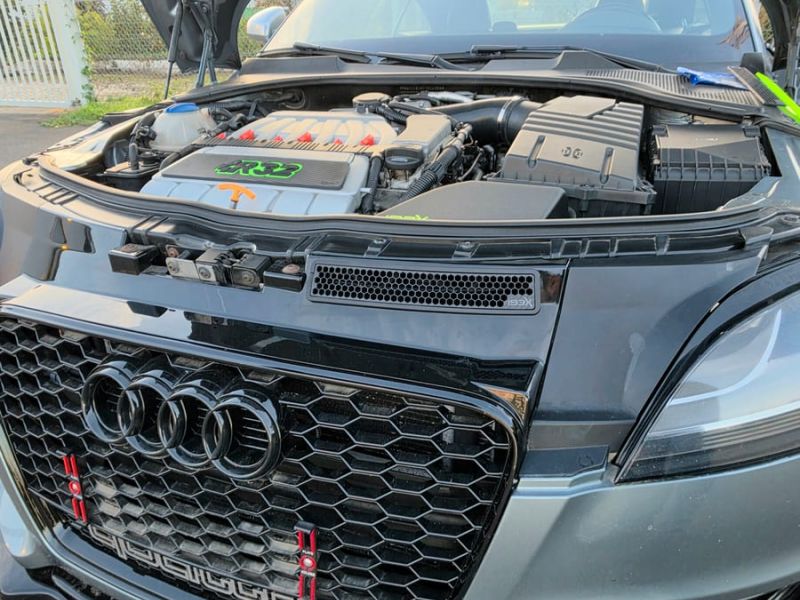

The black grille insert fitted above the TT-RS grille
