Audi TT 8J Magnetic Ride Cancellation Kit

  • Car
    Audi TT 8J (Mk2)
    also fits the A3 / S3 8P with Magnetic Ride
  • Replaces
    KW cancellation kit 67010010
    around €340
  • My cost
    Under €35
  • Resistors
    4 × 100 W load resistors, 1.5 Ω
  • Connectors
    Repair kit 1J0 973 802
  • Front axle
    Soldered straight to the wiring
  • Rear axle
    Plug and play
  • Made by
    IBEX

How it came about

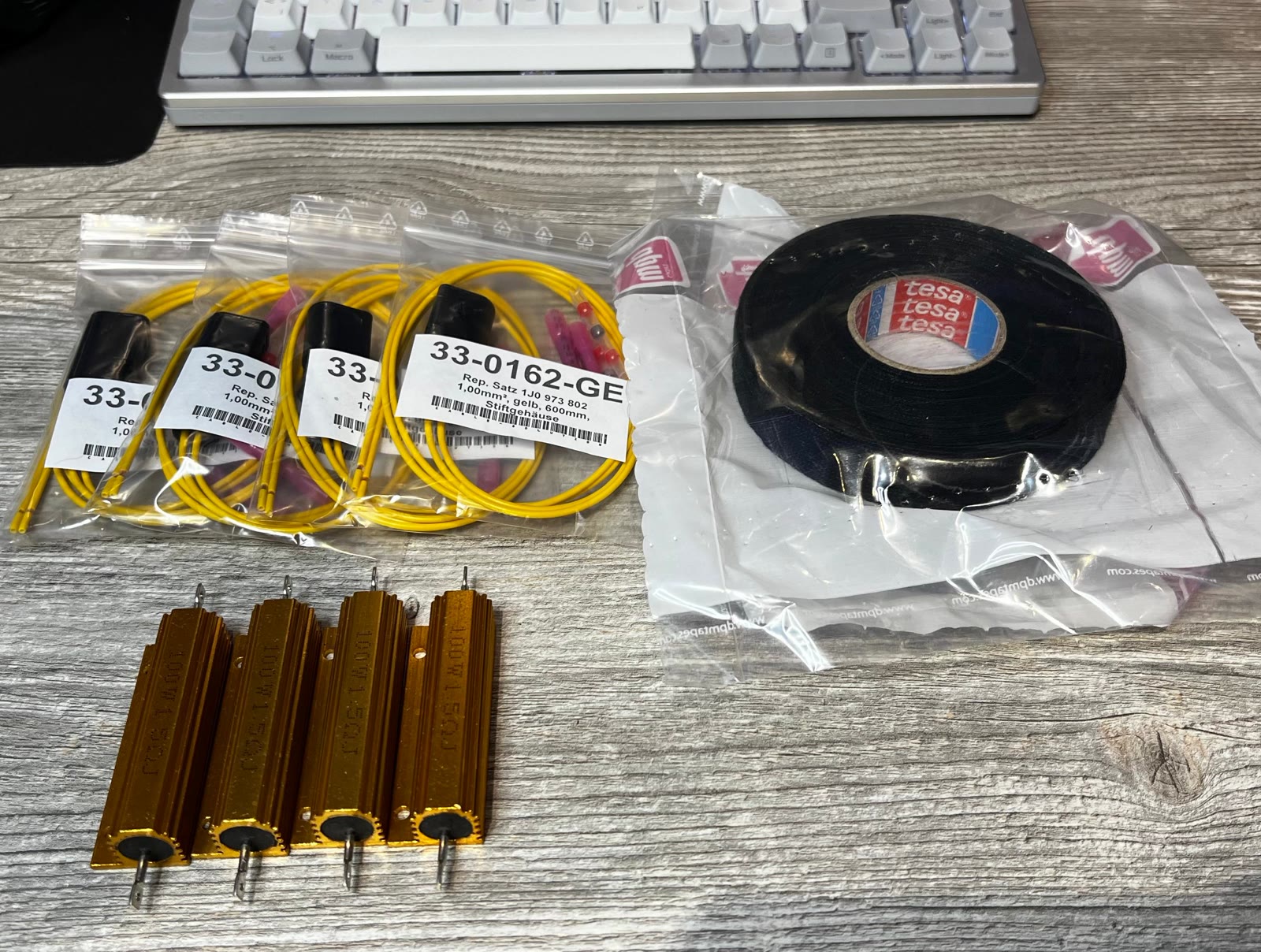

With Bilstein coilovers in the car, Magnetic Ride had to go. Coding it out with VCDS is quite a hassle, and the KW cancellation kit costs around €340 and isn’t exactly known for being reliable. So I ordered a few 100 W resistors, got the matching connectors and built my own for under €35 and a bit of soldering.

More Images

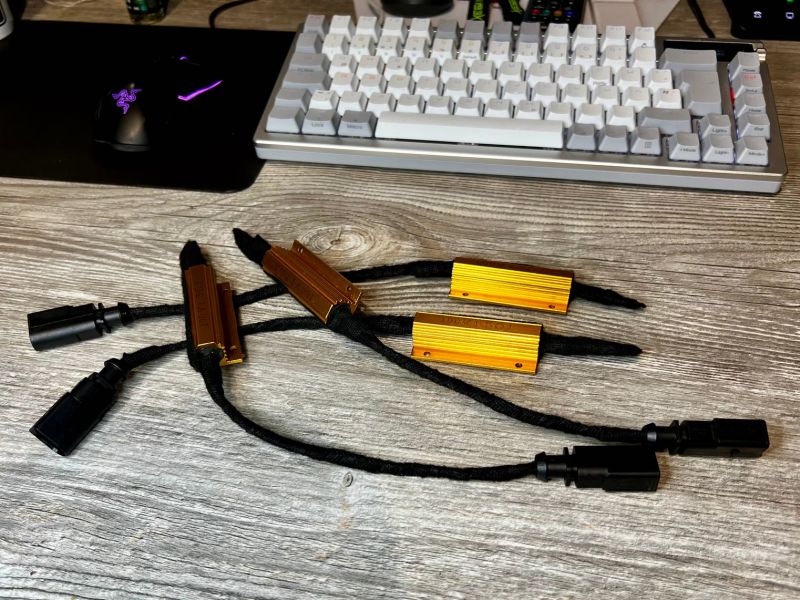

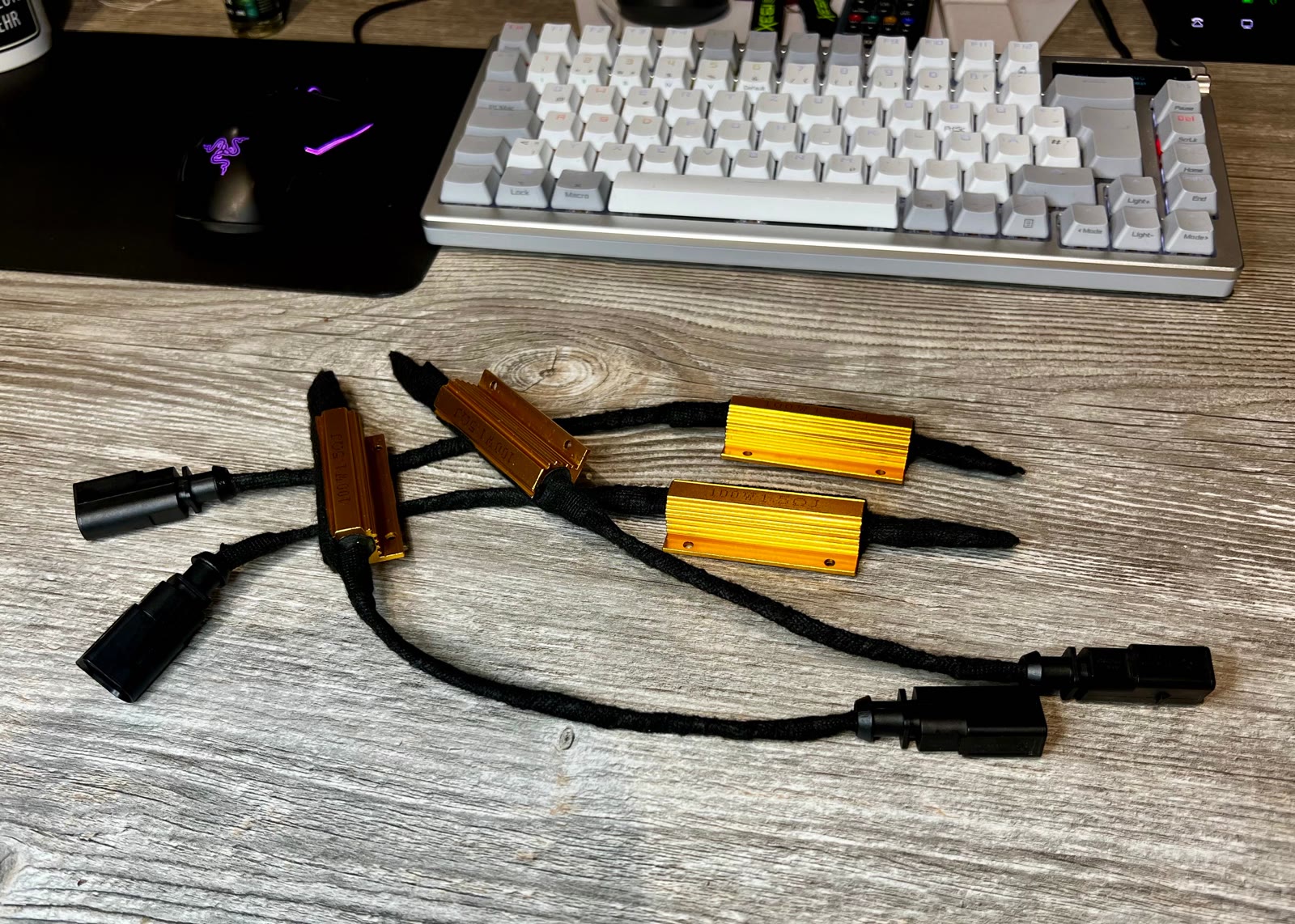

The finished Magnetic Ride cancellation kit with four resistors and braided wiring

No dampers. No warning.

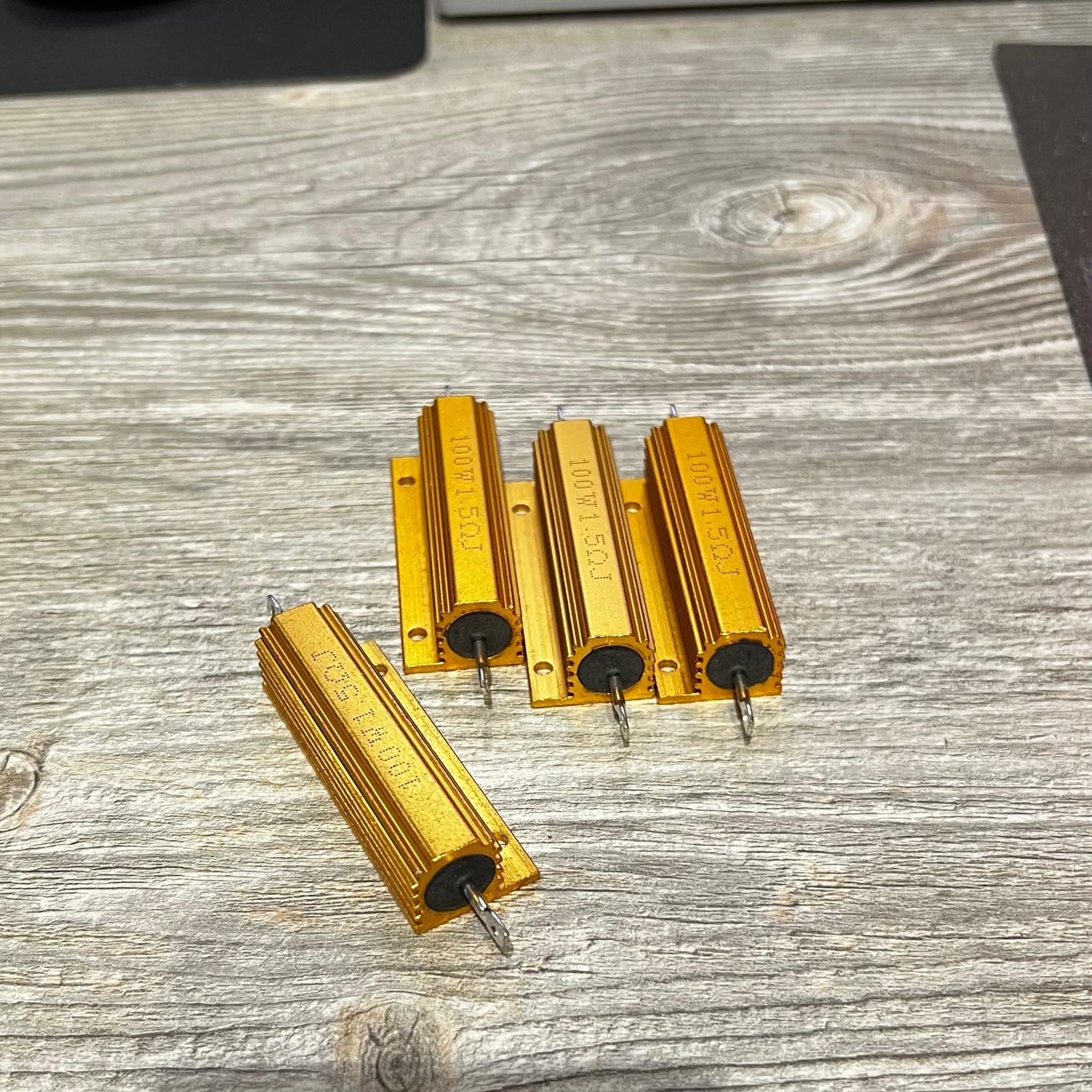

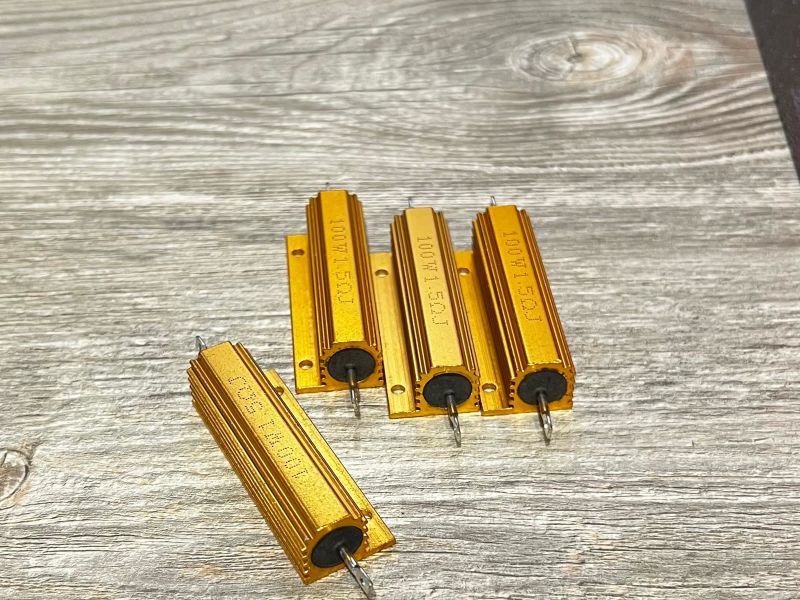

Four resistors.

One 100 W load resistor per corner takes the place of the Magnetic Ride damper, so the car no longer reports a fault.

Front: soldered.

I couldn’t find matching plugs for the front axle, so the resistors are soldered straight to the wiring and wrapped in fabric tape.

Rear: plug and play.

At the rear, repair connectors 1J0 973 802 make it plug and play. No coding, no VCDS, and no more Magnetic Ride warning.
